Product Description

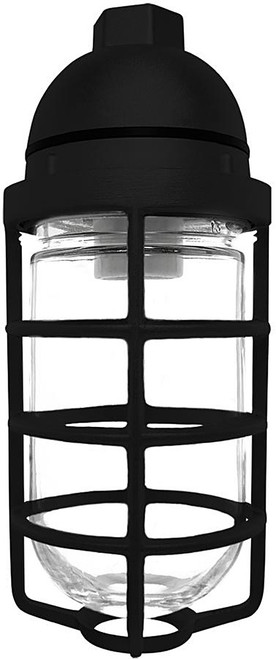

VP100DGB Vaporproof 100 Pendant 1/2 Inch Black Glass Globe Cast Guard from RAB Lighting is a 100 Series VP pendant vaporproof fixture with die cast aluminum construction, a clear glass globe, and a one piece black die cast guard with set screw. This black pendant fixture is suitable for wet locations, uses a medium base socket, supports up to 150W with a clear glass globe, and is designed for non-hazardous locations where the lamp, socket, and wiring require protection from rain, corrosive fumes, non-combustible dusts, moisture, non-explosive vapors, and gases.
Product Summary
- Fixture Type: VP Pendant Fixture
- Series: 100 Series
- Mounting: Pendant mount
- Maximum Watts: 150W
- Globe: Clear thermal shock resistant soda lime glass
- Guard: One piece black die cast guard with set screw
- Color: Black
- Free shipping on orders over $250
Product Benefits
- Suitable for wet locations and for use in dwellings.
- Die cast aluminum construction and stainless steel hardware support long-lasting fixture performance.
- Clear thermal shock resistant soda lime glass globe helps protect the lamp in vaporproof pendant applications.
- Premium porcelain socket with 150C 8" long leads supports reliable electrical performance.
Key Features
- Pendant mount design: Pendant mount fixture with 1/2" or 3/4" NPS pendant thread.
- Medium base socket: Designed with a medium base socket for compatible lamps.
- Die cast aluminum construction: Durable fixture body for vaporproof applications.
- Glass globe: Supplied with clear thermal shock resistant soda lime glass unless otherwise stated.
- Die cast guard: Supplied with one piece black die cast guard with set screw.
- Wet location listed: UL Listed suitable for wet locations.
- 90°C supply wiring: UL Listed for use with 90°C supply wiring.
- High temperature gaskets: High temperature silicone internal gaskets.
Specifications
Technical Specifications
| Catalog Number | VP100DGB |
| Fixture Type | VP Pendant Fixture |
| Mounting | Pendant mount |
| Construction | Die cast aluminum construction |
| Socket | Medium base socket |
| Pendant Thread | 1/2" or 3/4" NPS pendant thread |
| Lamp Type | A19 |
| Lamp Supplied | Lamp not supplied |
| Maximum Watts | 150W |
| Colored Globe Maximum Watts | 100W |
Physical Specifications
| Color | Black |
| Weight | 2.4 lbs |
| Height | 9 5/8" / 24.4 cm |
| Diameter | 4 1/8" / 10.5 cm |
| Globes | Supplied with clear thermal shock resistant soda lime glass unless otherwise stated. Colored and white glass globes available. Unbreakable Permaglobes available in clear and in color. |
| Die Cast Guard | Supplied with one piece black die cast guard with set screw |
| Hardware | All stainless steel hardware |
| Gaskets | High temperature silicone internal gaskets |
| Socket Leads | Premium porcelain socket with 150C 8" long leads |
Compliance & Safety
| UL Listed | Suitable for wet locations. Suitable for use in dwellings. Suitable for use with 90°C supply wiring. |
| UL Standard | Complies with UL Standard 1598. |
| Location Type | For non-hazardous locations where the lamp, socket and wiring require protection from rain, corrosive fumes, non-combustible dusts, moisture, non-explosive vapors and gases. |
| Outdoor Installation | For lamp base up installation only when outdoors. |
| Supply Wire | Use supply wire rated for 90°C. |
| Voltage | 120V only |
Applications
- Wet location pendant fixture installations.
- Dwellings requiring a UL Listed vaporproof pendant fixture.
- Non-hazardous locations requiring protection from rain, corrosive fumes, non-combustible dusts, moisture, non-explosive vapors, and gases.
- Outdoor lamp base up installations.
- VP pendant installations using clear glass globes and die cast guards.
Installation Tips
- Read carefully before installing fixture and retain the instructions for future reference.
- Fixtures must be wired in accordance with the National Electrical Code and all applicable local codes.
- Proper grounding is required for safety.
- Make certain power is OFF before installing or maintaining fixture.
- Fixture should be located on wall or suspended and not be recessed.
- Fixture cannot be mounted upside down in wet locations.
- Seal around the threads with teflon tape and thread fixture onto the conduit using a wrench to tighten.
- Install the lamp, globe and guard after wiring and mounting.
- Seal all holes, plugs and conduit entrances with weatherproof silicone sealant.
- Use supply wire rated for 90°C. The units are 120V only.
Frequently Asked Questions
What type of fixture is the VP100DGB?
The VP100DGB is a VP pendant vaporproof fixture with die cast aluminum construction, clear glass globe, and black die cast guard.
What is the maximum wattage?
The maximum wattage is 150W. The colored globe maximum wattage is 100W.
Is the lamp included?
No. The lamp is not supplied.
What globe is supplied with this fixture?
The fixture is supplied with clear thermal shock resistant soda lime glass unless otherwise stated.
What guard is included?
The VP100DGB is supplied with one piece black die cast guard with set screw.
Is this fixture suitable for wet locations?
Yes. The fixture is UL Listed suitable for wet locations.
Can this fixture be used outdoors?
Yes, for lamp base up installation only when outdoors.
What supply wire rating is required?
Use supply wire rated for 90°C.
What voltage does this fixture use?
The installation instructions state that the units are 120V only.
What are the dimensions of the 100 Series fixture?
The 100 Series fixture measures 9 5/8" high and 4 1/8" in diameter.
