Product Description

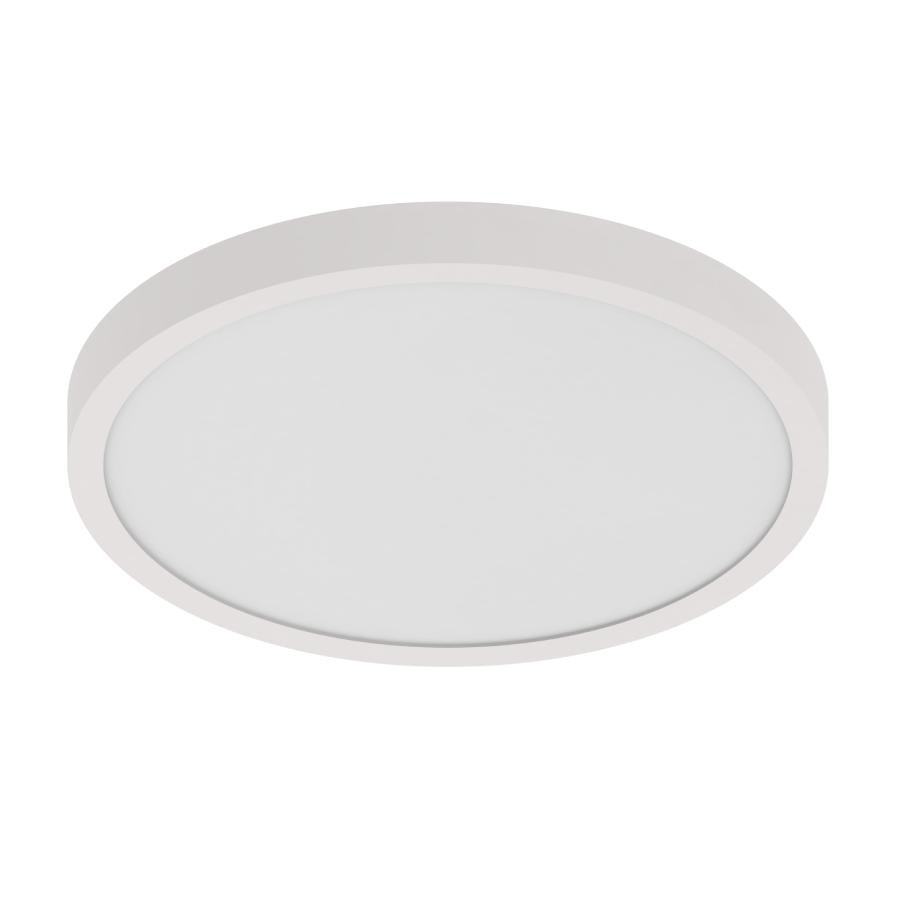

SUMO-R-15 Slim Sumo XL 15" Round 26W 1950LM CRI90 5CCT 120V White from RAB Lighting combines modern edge-lit LED technology with a sleek low-profile design for residential and commercial surface mount applications. Featuring selectable color temperatures, smooth diffused illumination, and wet location suitability, this 15" round fixture delivers stylish performance for new construction and retrofit installations alike.
Product Summary
Brand: RAB Lighting
Model: SUMO-R-15
Product Type: Edge-Lit Surface Mount LED Fixture
Fixture Size: 15"
Input Wattage: 26W
Lumen Output: 1,950lm - 2,200lm
Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
CRI: >90 CRI
Voltage: 120V
Dimming: TRIAC/ELV dimming to 10%
Location Rating: Wet Location Rated
Warranty: 5-Year Warranty
Free shipping on orders over $250
Product Benefits
- 5CCT selectable technology allows installers to customize lighting color temperature during installation.
- Slim low-profile edge-lit design creates a clean modern ceiling appearance for residential and commercial spaces.
- Wet location rating supports indoor and outdoor applications in dry, damp, and wet environments.
- High 90+ CRI performance delivers accurate color rendering and comfortable illumination.
Key Features
- 5CCT Selectable: Adjustable 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures.
- Edge-Lit LED Technology: Smooth, even light distribution with minimal glare.
- High CRI: >90 CRI with R9 ≥50 for enhanced color quality.
- TRIAC/ELV Dimming: Dims down to 10%.
- Wet Location Rated: Suitable for indoor and outdoor use.
- Long Life LED: 50,000-hour rated lifespan.
- Surface Mount Design: Ideal for retrofit and new construction installations.
- Energy Efficient: Equivalent to 150W incandescent performance.
Specifications
Technical Specifications
| Model Number | SUMO-R-15 |
| Input Wattage | 26W |
| Lumen Output | 1,950lm - 2,200lm |
| Efficacy | 75-85 lm/W |
| Voltage | 120V |
| Operating Frequency | 50/60Hz |
| Power Factor | ≥0.9 |
| THD | ≤20% |
| Dimming | TRIAC/ELV dimming to 10% |
LED Specifications
| Selectable Color Temperatures | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | >90 CRI |
| R9 Value | ≥50 |
| Color Consistency | 4-step MacAdam Ellipse binning |
| Color Stability | Color shift no more than 200K over 5 years |
| L70 Lifespan | 50,000 hours |
Construction & Compliance
| Fixture Shape | Round |
| Fixture Size | 15" |
| Housing Material | Metal |
| Lens | Frosted polycarbonate lens |
| Trim Style | Smooth |
| Environment | Dry, damp, and wet locations |
| Operating Temperature | -4°F to 104°F (-20°C to 40°C) |
| Compliance | UL Listed, ENERGY STAR Certified, NEC 410.16 Compliant, RoHS Compliant |
Applications
- Residential kitchens and living areas
- Hospitality and hotel guest rooms
- Hallways and corridors
- Bathrooms and laundry rooms
- Covered patios and outdoor ceiling applications
- Multi-family residential developments
Installation Tips
- Turn off power at the fuse box before beginning installation.
- Select desired color temperature using the integrated CCT switch before mounting the fixture.
- Use included mounting bracket and hardware for secure junction box installation.
- Connect black-to-black, white-to-white, and green-to-ground wiring connections.
- Use the integrated safety wire during installation to support the fixture while wiring.
- Apply silicone sealant around the fixture edge when installing in wet environments.
FAQ
What color temperatures are available?
The fixture includes selectable 2700K, 3000K, 3500K, 4000K, and 5000K color temperature settings.
How many lumens does the fixture produce?
The fixture delivers between 1,950 lumens and 2,200 lumens depending on selected color temperature.
Is the fixture dimmable?
Yes. The fixture supports TRIAC and ELV dimming down to 10%.
Can this fixture be installed outdoors?
Yes. The fixture is suitable for dry, damp, and wet indoor or outdoor environments.
What is the expected LED lifespan?
The integrated LED system is rated for 50,000 hours based on L70 testing.
What type of mounting does this fixture use?
The fixture is designed for surface mount installation on standard junction boxes.
What is the CRI rating?
The fixture provides high color accuracy with a CRI greater than 90.
What traditional lamp wattage does this replace?
This fixture provides light output equivalent to a 150W incandescent fixture.
