Product Description
LME2432 Mirror Light Frameless Ellipse 24x32 2700/4000/6500K is a RAB LED frameless ellipse mirror featuring smooth diffused illumination, integrated touch controls, field-adjustable color temperature, stepless dimming, anti-fog technology, and memory recall. The 24" x 32" wall-mounted mirror delivers 1,650 lm at 46W with 90 CRI color rendering.
Product Summary
24" x 32" frameless ellipse LED mirror with 1,650 lm output, 46W input wattage, 120V operation, 90 CRI, and selectable 2700/4000/6500K color temperature.
Free shipping on orders over $250
Product Benefits
- Adjust the mirror lighting between 2700K, 4000K, and 6500K using the integrated touch control.
- Integrated anti-fog technology helps keep the mirror clear during and after showers.
- Stepless dimming down to 10% provides flexible control over the light level without an external dimming control.
- The memory function restores stored light level and CCT settings for convenient everyday use.
Key Features
- Frameless ellipse design: 24" x 32" illuminated LED mirror with a white finish.
- Selectable CCT: Integrated touch control provides field-adjustable 2700/4000/6500K color temperature.
- Integrated dimming: Stepless dimming via touch control down to 10%.
- Anti-fog function: Touch-activated defogger helps reduce mirror fogging.
- Memory recall: Light level and CCT settings are stored after 8 seconds.
- Diffused illumination: Frosted lens provides smooth diffused light output.
- Shatter-resistant construction: Enclosure is constructed from frosted, shatter-resistant polycarbonate.
- 50,000-hour LED lifespan: L70 lifespan is based on IES LM-70 results.
Specifications
Technical Specifications
| Product Type | Mirror, Frameless |
| Input Wattage | 46W |
| Input Voltage | 120V |
| Driver | Constant Voltage, Class 2 120V 50/60; 120V: 383mA |
| Power Factor | ≥0.9 |
| THD | ≤20% |
| Flicker | ≤30% |
| Dimming | Stepless dimming via integrated touch control down to 10% |
Performance Specifications
| Lumens | 1,650 lm |
| Efficacy | 50 lm/W |
| Color Temperature | 2700/4000/6500K |
| Color Accuracy | 90 CRI |
| R9 Value | R9 greater than 50 |
| Beam Angle | 25° - 45° ±10° |
| L70 Lifespan | 50,000 Hours |
| Color Consistency | <4-step MacAdam Ellipse binning |
Physical Specifications

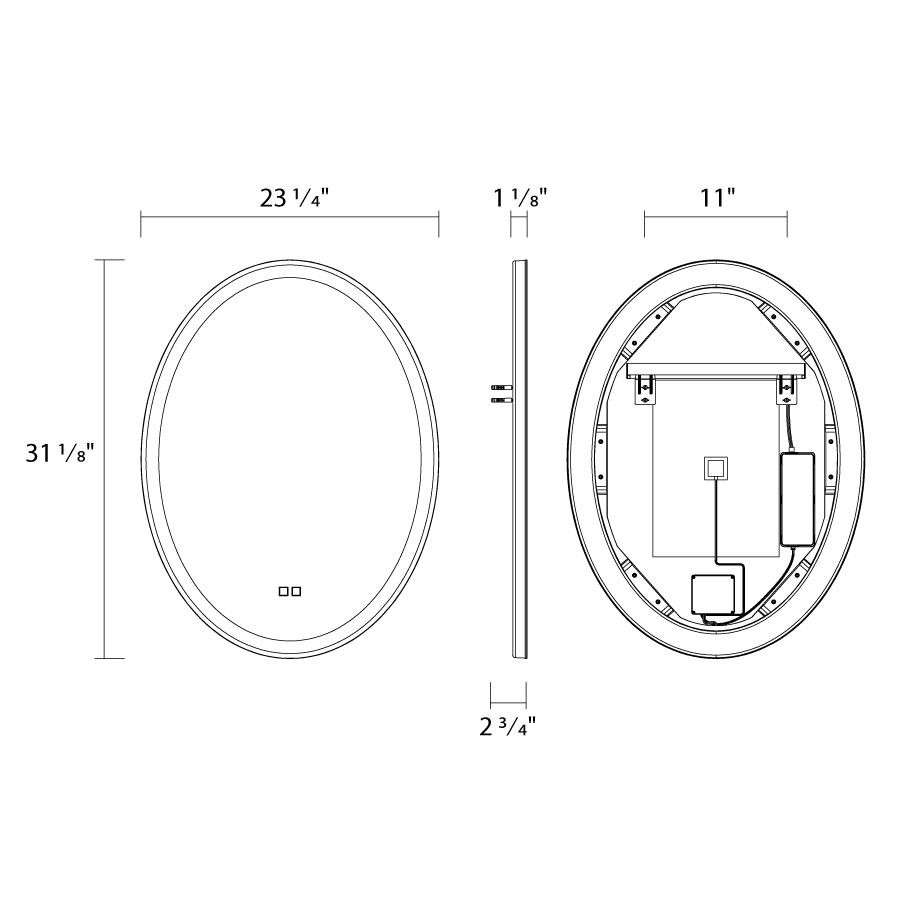

| Size | 24" x 32" |
| Shape | Ellipse |
| Style | Frameless |
| Finish | White |
| Weight | 17.0 lbs |
| Illuminated Width | 1.10" |
| Enclosure Material | Frosted, shatter-resistant polycarbonate |
| Lens | Frosted lens |
| Mounting | Wall mount |
| Operating Temperature Range | -4°F - 104°F (-20°C - 40°C) |
Compliance & Safety
| ETL Listed | Tested by Intertek and found in compliance with accepted national standards |
| Environment | Suitable for use indoors in dry or damp environments |
| IP Rating | IP44 |
| California Title 24 JA8 Compliant | Can be used to conform with the requirements of California Title 24 Part 6 |
| California Energy Commission Status | Lawful for Sales in California |
| RoHS | Mercury and UV free. RoHS-compliant components. |
| FCC | Complies with Part 15 of the FCC Rules |
| Warranty | 3-Year Limited Warranty covering light output, driver performance and paint finish, subject to RAB warranty terms and conditions |
Applications
- Wall-mounted indoor installations.
- Dry or damp indoor environments.
- Locations where an integrated anti-fog mirror function is useful during and after showers.
Installation Tips
- Install the LME2432 as a wall-mounted mirror.
- Use only in indoor dry or damp environments as specified.
- Operate on a 120V electrical supply.
Frequently Asked Questions
What color temperatures are available on the LME2432?
The integrated touch control allows field adjustment between 2700K, 4000K, and 6500K.
Can the LME2432 LED mirror be dimmed?
Yes. It provides stepless dimming through the integrated touch control down to 10%.
Does the LME2432 have an anti-fog function?
Yes. The integrated touch-controlled anti-fog function helps reduce mirror fogging during and after showers.
Does the mirror remember the previous light settings?
Yes. The memory function allows the light level and CCT settings to be stored after 8 seconds.
How much light does the LME2432 produce?
The mirror provides a nominal output of 1,650 lm with 46W input wattage.
What is the CRI of the LME2432?
The LME2432 provides 90 CRI color accuracy with an R9 value greater than 50.
Can the LME2432 be installed in damp environments?
Yes. It is suitable for indoor use in dry or damp environments and has an IP44 rating.
What is the expected LED lifespan?
The LME2432 has a 50,000-hour L70 LED lifespan based on IES LM-70 results.
