Product Description

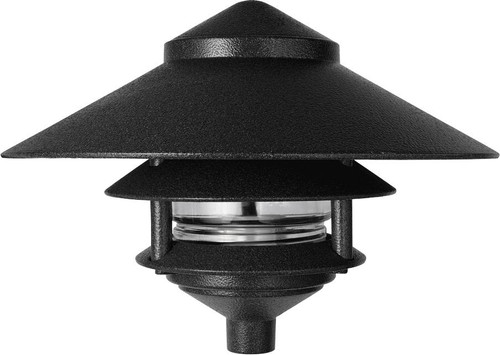

RAB LL323B Landscape 1220 Lumens Lawn Light 3 Tier 10 Inches Top 75W Max is a durable and weather-resistant outdoor lighting solution designed for pathways, lawns, and landscape applications. Built by RAB Lighting, this rugged fixture features a die-cast aluminum housing with a threaded, gasketed glass globe for long-lasting performance and easy relamping in outdoor environments.
Product Summary
- Lumen Output: 1220 lm
- Max Wattage: 75W
- Voltage: 120V AC
- Lamp Type: A-19 (not included)
- Fixture Diameter: 10"
- Height: 7"
- Material: Die-cast aluminum housing
- Finish: Black powder coat
- Listing: UL Listed for wet locations
- Mounting: 1/2" threaded nipple included
- Special Feature: Threaded, gasketed glass globe
- Shipping: Free shipping on orders over $250
Product Benefits
- Provides reliable landscape illumination with 1220 lm output, ideal for pathways and garden lighting.
- Designed for durability with weather-resistant construction that protects against rain, sprinklers, and insects.
- Ensures long-term performance using a die-cast aluminum housing with powder-coated finish for corrosion resistance.
- Offers easy maintenance with a threaded globe design for quick relamping and servicing.
Key Features
- Rugged Construction: Die-cast aluminum housing with durable powder coating.
- Weatherproof Design: Threaded, gasketed glass globe protects against moisture and debris.
- High Output: Delivers up to 1220 lm using a 75W max A-19 lamp.
- Secure Installation: Includes 1/2" threaded nipple and corrosion-proof locking screw.
- Premium Socket: Medium base porcelain socket with all copper electrical parts and 20" leads.
- Flexible Mounting: Compatible with optional 12" mounting stem with 1/2" threads.
Specifications
Technical Specifications
| Voltage | 120V AC |
| Socket Type | Medium base porcelain |
| Lamp Type | A-19 (not included) |
| Max Wattage | 75W |
Physical Specifications
| Fixture Diameter | 10" |
| Fixture Height | 7" |
| Weight | 3.0 lbs |
| Housing Material | Die-cast aluminum |
| Finish | Black powder coat |
Performance Specifications
| Lumen Output | 1220 lm |
| Lamp Life | 750 hrs |
Compliance & Safety
| Listing | UL Listed |
| Environment | Suitable for wet locations |
| Mounting Restriction | Suitable for mounting within 4 ft of the ground |
Applications
- Residential landscape lighting for lawns and gardens
- Pathway and walkway illumination
- Outdoor decorative lighting for patios and yards
- Low-height ground-mounted lighting applications
- Commercial landscaping and hospitality environments
Installation Tips
- Ensure power is turned off before installation to prevent electrical shock.
- Mount fixture securely to a sturdy post or compatible mounting base.
- Use supply wiring rated at least 90°C for safe operation.
- Connect black, white, and ground wires according to wiring diagram.
- Use a maximum 75W lamp and allow lamp to cool before relamping.
FAQ
What type of bulb does this fixture use?
This fixture uses a medium base A-19 incandescent lamp with a maximum wattage of 75W.
Is the lamp included with the fixture?
No, the lamp is not included and must be purchased separately.
Can this light be used outdoors?
Yes, it is UL Listed for wet locations and designed for outdoor use.
Is the fixture weatherproof?
Yes, it features a threaded, gasketed glass globe that protects against rain, sprinklers, and insects.
What is the maximum lumen output?
The fixture provides up to 1220 lm depending on the lamp used.
How is the fixture mounted?
It includes a 1/2" threaded nipple for mounting and can also be used with optional mounting stems.
Can this be installed close to the ground?
Yes, it is suitable for mounting within 4 ft of the ground.
Is professional installation required?
Installation should follow national and local electrical codes and may require a qualified electrician.
