Product Description
The RAB X34XXLTW is a field-adjustable LED floodlight designed for high-output exterior illumination. This white trunnion-mounted fixture offers selectable wattage at 160W, 140W, or 120W and selectable color temperature at 3000K, 4000K, or 5000K, delivering up to 24,168 lumens with a long 100,000-hour LED lifespan. Built with an IP65 rating, integrated photocell, 0-10V dimming, and durable die-cast aluminum housing, it is ideal for commercial, industrial, security, and area lighting applications.
Product Summary
- Brand: RAB Lighting
- Model: X34XXLTW
- Type: LED Floodlight
- Mounting: Trunnion
- Finish: White
- Selectable Wattage: 160W / 140W / 120W
- Selectable Color Temperature: 3000K / 4000K / 5000K
- Lumen Output: 17,458–24,168 Lumens
- Voltage: 120–277V
- Dimming: 0-10V
- Photocell: Integrated Selectable On/Off
- Rating: IP65 Wet Location Rated
- Lifespan: 100,000 Hours
- Warranty: 5-Year Limited Warranty
Benefits
- Three selectable wattages allow a single fixture to serve multiple lighting requirements.
- Selectable color temperatures provide flexibility for warm, neutral, or daylight appearance.
- Integrated photocell supports automatic dusk-to-dawn operation.
- Long 100,000-hour lifespan reduces maintenance and replacement costs.
- IP65 construction provides reliable performance in outdoor environments.
- 0-10V dimming capability allows energy savings and lighting control integration.
- Trunnion mount with adjustable tilt simplifies aiming and installation.
Key Features
- 160W / 140W / 120W selectable power output
- 3000K / 4000K / 5000K selectable color temperature
- 17,458–24,168 lumen output
- 133.9–165.3 lm/W efficacy
- 83–86 CRI
- 120–277V universal voltage
- 0-10V dimming down to 10%
- Integrated selectable photocell
- NEMA 7H x 7V beam spread
- Die-cast aluminum housing
- Tempered glass lens
- IP65 rated
- DLC Premium listed
- Wet location rated
- 100,000-hour LED lifespan
- 5-year limited warranty
Specifications
General Specifications
| Manufacturer | RAB Lighting |
|---|---|
| Model Number | X34XXLTW |
| Fixture Type | LED Floodlight |
| Mounting | Trunnion |
| Finish | White |
| Weight | 7.5 lbs |
| Housing | Die-Cast Aluminum |
| Lens | Tempered Glass |
| Reflector | PET Reflector |
| EPA | 0.06 |
Electrical Specifications
| Input Voltage | 120–277V, 50/60Hz |
|---|---|
| Driver Type | Constant Current, Class 1 |
| Dimming | 0-10V Dimming to 10% |
| Power Factor | 90.7%–99.8% |
| THD | 2.7%–10.4% |
| Photocell | Integrated On/Off Selectable |
Lighting Performance
| Selectable Wattages | 160W / 140W / 120W |
|---|---|
| Input Watts | 116.4–160.9W |
| Selectable CCT | 3000K / 4000K / 5000K |
| Lumen Output | 17,458–24,168 Lumens |
| Efficacy | 133.9–165.3 lm/W |
| Color Rendering Index | 83–86 CRI |
| Beam Distribution | NEMA 7H x 7V |
| LED Lifespan | 100,000 Hours |
Environmental & Compliance
| UL Listed | Suitable for Wet Locations |
|---|---|
| IP Rating | IP65 |
| DLC Listing | DLC Premium |
| DLC Product Code | S-AOKIJL |
| Operating Temperature | -40°F to 104°F (-40°C to 40°C) |
| RoHS Compliant | Yes |
| Mercury & UV Free | Yes |
| Warranty | 5-Year Limited Warranty |

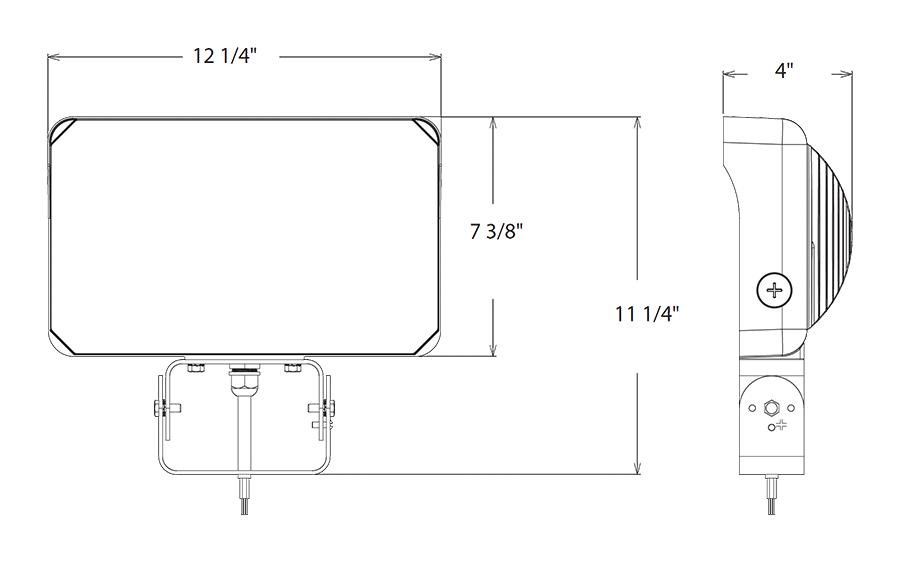

Dimensions
| Width | 12-1/4" |
|---|---|
| Fixture Height | 7-3/8" |
| Overall Height | 11-1/4" |
| Depth | 4" |
Applications
- Building facades
- Parking lots
- Commercial properties
- Industrial facilities
- Loading docks
- Security lighting
- Perimeter lighting
- Outdoor storage yards
- Warehouses
- Municipal facilities
Installation Tips
- Disconnect power before installation or maintenance.
- Install according to all applicable NEC and local electrical codes.
- Proper grounding is required.
- Adjust wattage, CCT, and photocell settings using the side-mounted selector switches before final aiming.
- For maximum light output, select the 4000K setting.
- Loosen the pivot bolts and angle locking screw to adjust aiming, then retighten securely.
- Connect purple and pink leads when using a 0-10V dimming system.
- Do not connect the internal capped 12V auxiliary wire.
- Clean the lens only with a non-abrasive cleaning solution.
Frequently Asked Questions
Can the wattage be adjusted in the field?
Yes. The fixture allows field selection between 160W, 140W, and 120W.
What color temperatures are available?
The fixture offers selectable 3000K, 4000K, and 5000K color temperatures.
Does the fixture include a photocell?
Yes. An integrated photocell is included and can be enabled or disabled using the onboard selector switch.
Is this fixture dimmable?
Yes. The driver supports 0-10V dimming down to 10% output.
Can this fixture be used outdoors?
Yes. The X34XXLTW is IP65 rated and UL listed for wet location installations.
What traditional fixtures can it replace?
It can replace up to a 750W Metal Halide fixture or a 400W High Pressure Sodium fixture.
How long will the LEDs last?
The LEDs are rated for up to 100,000 hours of operation based on LM-80 testing and TM-21 calculations.
What mounting method is included?
This model includes a trunnion mount with adjustable tilt from -90° to +90°.
