Product Description

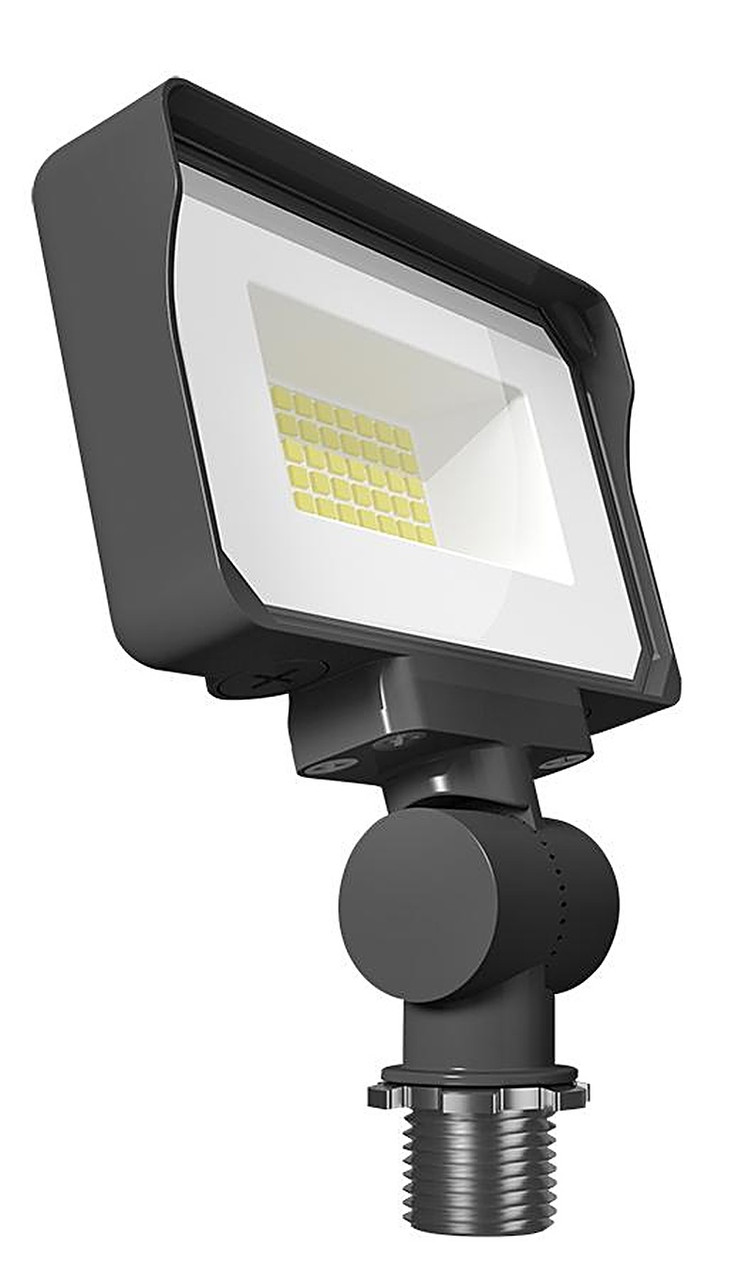

X34XS 16W/13W/10W Knuckle Bronze 3000K/4000K/5000K Selectable is a compact and energy-efficient field-adjustable floodlight ideal for outdoor general lighting, signage, and landscape applications. With a die-cast aluminum housing, IP65 rating, and selectable wattage and color temperature, this versatile fixture provides dependable performance in commercial and residential environments.
Wattage: Field Adjustable – 16W / 13W / 10W
Lumen Output: 1,468 – 2,353 lm
Color Temperature: Selectable – 3000K / 4000K / 5000K
Mounting: Knuckle Mount
IP Rating: IP65 (Wet Location Rated)
Free shipping on orders over $250
- Field-adjustable power and CCT allow for on-site customization
- Energy-efficient design delivers up to 150.6 lm/W efficacy
- 100,000-hour lifespan minimizes maintenance over time
- UL Listed for wet locations with IP65-rated housing
- Wattage Settings: 16W / 13W / 10W (factory default: 16W)
- CCT Settings: 3000K / 4000K / 5000K (factory default: 4000K)
- Driver: Constant Current, Class 1, 120/277V, 50/60Hz
- Beam Spread: NEMA 7H x 7V
- CRI: 81–84
- Housing: Die-cast aluminum with bronze powder coat finish
- Lens: Glass with polycarbonate reflector
- Warranty: 5-Year Limited
| Technical Specifications | |
|---|---|
| Model | X34XS |
| Lumen Range | 1,468 lm – 2,353 lm |
| Input Power | 10.4W – 16.4W |
| Input Voltage | 120V / 277V |
| Power Factor | ≥ 98% @ 120V |
| THD | ≤ 16% |
| Surge Protection | 2kV |
| L70 Lifespan | 100,000 hours |
| Mounting | 1/2" NPS Knuckle Mount |
| Weight | 0.8 lbs |
| Listings | UL Listed, DLC 5.1 Premium, IP65 |
- Building façade and signage lighting
- Walkway and landscape illumination
- Outdoor general area and perimeter lighting
- Security and floodlight applications
- Install using a 1/2" NPS threaded mount on junction box or post
- Seal threads with Teflon tape or silicone to maintain watertight seal
- Adjust the swivel arm for desired vertical tilt (up to 180°)
- Use selector switches on the fixture base to adjust wattage and CCT before sealing
Q: What is the default setting for the X34XS out of the box?
A: The factory default is 16W and 4000K.
Q: Is the X34XS DLC listed?
A: Yes, it is DLC 5.1 Premium listed and eligible for utility rebates.
Q: Can the wattage and color temperature be changed in the field?
A: Yes, both wattage and CCT can be easily adjusted using selector switches on the fixture housing.
Q: Is this fixture suitable for wet locations?
A: Yes, it is UL Listed for wet locations and carries an IP65 rating.
Q: What is the beam angle of the fixture?
A: The beam pattern is NEMA 7H x 7V, offering a wide, even distribution of light.
