Product Description

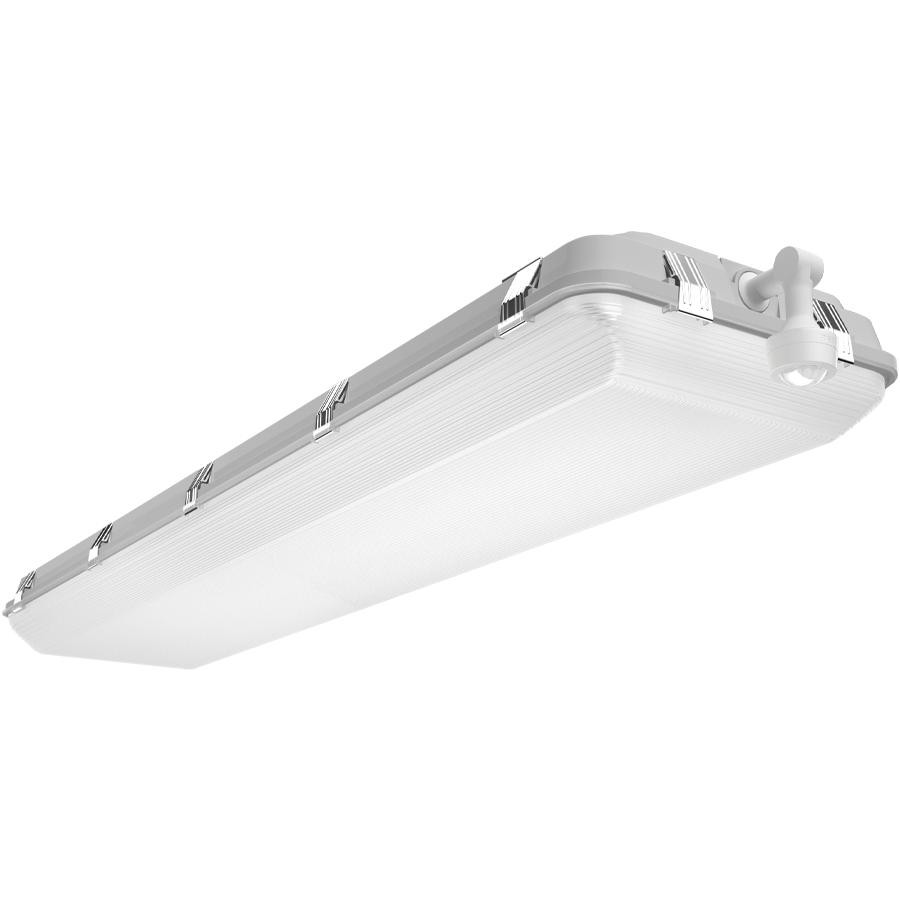

The RAB WHALE4/PIR Whale 4' 160/140/120W 3500K/4000K/5000K Passive Infrared Sensor is a high-performance, industrial-grade LED fixture designed for demanding environments requiring durability, efficiency, and smart motion control. Engineered by RAB Lighting, this fixture combines selectable wattage and color temperature with an integrated PIR sensor, making it ideal for energy savings and optimized lighting performance in commercial and industrial spaces.
Product Summary
Wattage: 160/140/120W
Lumen Output: 17,991–24,462 lm
Efficacy: 150.5–164.6 lm/W
Color Temperature: 3500K / 4000K / 5000K selectable
CRI: 85–86 CRI
Voltage: 120–277V
Sensor Type: Passive Infrared (PIR)
IP Rating: IP67
Lifespan: 100,000 hours
Mounting Height (Sensor): Up to 40 ft
Warranty: 5-Year Limited
Shipping: Free shipping on orders over $250
Product Benefits
- Integrated PIR motion sensor reduces energy consumption by activating lighting only when needed, ideal for warehouses and industrial spaces.
- Selectable wattage and CCT allow customization for different applications and lighting requirements.
- IP67-rated construction ensures reliable performance in wet, dusty, and harsh environments.
- NSF certification makes it suitable for food-preparation and sanitary environments.
Key Features
- Selectable Output: 160W / 140W / 120W configurable
- Tunable CCT: 3500K / 4000K / 5000K
- High Efficiency: Up to 164.6 lm/W
- 0–10V Dimming: Dims down to 10%
- Passive Infrared Sensor: Adjustable via remote (MSR1 sold separately)
- Long Lifespan: 100,000-hour LED life
- Durable Housing: Impact-resistant polycarbonate with stainless steel clips
- Low-Glare Lens: Diffuse polycarbonate lens
- Cold Weather Rated: Starts at -40°F
- Surge Protection: 4 kV LN / 6 kV LN-GND
Specifications
Technical Specifications
| Voltage | 120–277V |
| Input Watts | 112–158W |
| Power Factor | 99.8% (120V), 97.4% (277V) |
| THD | 3.93% (120V), 10.17% (277V) |
| Dimming | 0–10V (to 10%) |
| Surge Protection | 4 kV / 6 kV |
Performance Specifications
| Lumen Output | 17,991–24,462 lm |
| Efficacy | 150.5–164.6 lm/W |
| CRI | 85–86 |
| Lifespan | 100,000 hours |
| CCT | 3500K / 4000K / 5000K |
Physical & Environmental Specifications
| Housing | Polycarbonate with stainless steel clips |
| Lens | Diffuse polycarbonate |
| IP Rating | IP67 |
| Operating Temperature | -40°F to 140°F (depending on configuration) |
| Weight | 23.4 lbs |
| Finish | Gray |
Applications
- Warehouses and distribution centers
- Food processing and preparation facilities
- Parking garages and stairwells
- Industrial facilities and manufacturing plants
- Cold storage and damp environments
Installation Tips
- Use included quick-mount stainless steel brackets for fast surface installation.
- For suspended setups, utilize the included V-hook mounting system.
- Ensure proper wiring when using 0–10V dimming systems.
- Adjust sensor settings using the optional MSR1 remote for optimal performance.
- Verify mounting height (up to 40 ft) for proper sensor coverage.
FAQ
Does this fixture include a motion sensor?
Yes, it features an integrated passive infrared (PIR) sensor for occupancy-based lighting control.
Can the wattage and color temperature be adjusted?
Yes, both wattage (160W/140W/120W) and color temperature (3500K/4000K/5000K) are selectable.
Is this fixture suitable for wet or harsh environments?
Yes, it is IP67 rated and UL listed for wet locations, making it ideal for demanding environments.
What is the expected lifespan of this fixture?
The LED system is rated for 100,000 hours based on LM-80 testing.
Does it support dimming?
Yes, it supports 0–10V dimming and can dim down to 10% output.
Is this product eligible for rebates?
Yes, it is DLC Premium listed, qualifying for top-tier utility rebates.
Can the sensor settings be customized?
Yes, sensor settings such as sensitivity, hold time, and daylight threshold can be adjusted using the MSR1 remote.
What mounting options are available?
The fixture supports both surface mounting and suspended mounting using included hardware.
