Product Description
RAB WFRX-4BD Edge-lit Wafer 4" 12/10/8W 5CCT 90CRI 120-277V Baffle Round White is a versatile, ultra-slim LED recessed lighting solution designed for both residential and commercial applications. Featuring field-adjustable wattage and color temperature, this edge-lit wafer delivers high-quality illumination with flexible installation and modern performance in a compact, housing-free design.
Product Summary
- Wattage: 12W / 10W / 8W selectable
- Lumens: 1100 / 825 / 675 lm
- Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K
- Voltage: 120-277V
- CRI: 90
- Beam Angle: 110°
- Dimming: TRIAC / ELV (down to 10%)
- Lifespan: 50000 hours
- Trim: Baffle, round
- Finish: White
- Rating: IC Rated, Air Tight, Wet Location
- Certifications: UL Listed, ENERGY STAR®, Title 24 Compliant
- Shipping: Free shipping on orders over $250
Product Benefits
- Field-adjustable wattage and 5CCT selection allows customization for any lighting environment.
- Ultra-thin, edge-lit design installs without recessed housing, simplifying retrofit and new construction projects.
- High 90 CRI ensures accurate color rendering for residential, retail, and commercial spaces.
- Wide voltage compatibility (120-277V) supports both residential and commercial electrical systems.
Key Features
- Selectable Output: Choose between 12W, 10W, or 8W for flexible light levels.
- 5CCT Adjustable: Switch between 2700K, 3000K, 3500K, 4000K, and 5000K.
- Edge-Lit Technology: Provides smooth, uniform illumination with minimal glare.
- High CRI: 90 CRI with strong R9 performance for enhanced color quality.
- Dimmable: Compatible with TRIAC/ELV dimmers down to 10%.
- Air Tight & IC Rated: Safe for direct contact with insulation and energy-efficient installations.
- Wide Beam Spread: 110° beam angle for broad light distribution.
Specifications
Technical Specifications
| Input Wattage | 12W / 10W / 8W |
| Voltage | 120-277V |
| Frequency | 50/60 Hz |
| Power Factor | ≥0.9 |
| THD | ≤20% |
Performance Specifications
| Lumens | 1100 / 825 / 675 lm |
| Efficacy | 92 / 83 / 84 lm/W |
| Color Temperature | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 90 |
| Beam Angle | 110° |
| Lifespan | 50000 hours |

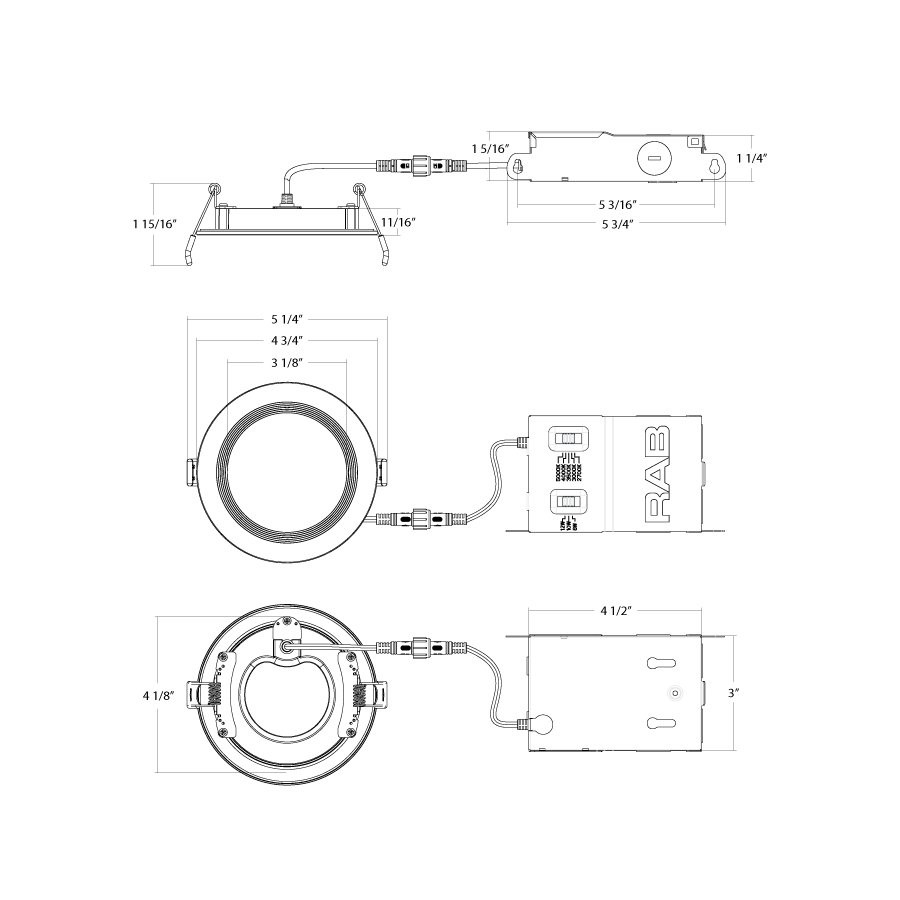

Physical Specifications
| Size | 4" |
| Shape | Round |
| Trim Style | Baffle |
| Finish | White |
| Lens | Polycarbonate diffuser |
| Construction | Metal and plastic housing |
Compliance & Safety
| UL Listed | Yes |
| IC Rated | Yes |
| Air Tight | Yes (ASTM-E283) |
| Environment | Dry, damp, and wet locations |
| Energy Star | Yes |
| Title 24 | Compliant |
| RoHS | Compliant |
Applications
- Residential recessed lighting for kitchens, living rooms, and hallways
- Commercial offices and retail spaces
- Hospitality and multi-family housing
- Closets and tight ceiling spaces
- New construction and retrofit installations
Installation Tips
- Turn off power at the breaker before installation to ensure safety.
- Use the included template to cut an accurate ceiling opening.
- Install the remote driver/junction box and secure wiring connections properly.
- Select desired wattage and color temperature using built-in switches before final placement.
- Push retention tabs upward to secure the wafer flush against the ceiling.
FAQ
What wattage options are available?
This fixture allows selection between 12W, 10W, and 8W depending on lighting needs.
Can I adjust the color temperature?
Yes, it features 5CCT selectable settings ranging from 2700K to 5000K.
Is this fixture dimmable?
Yes, it supports TRIAC and ELV dimming down to 10% on compatible systems.
Does it require a recessed housing?
No, the ultra-slim design allows installation without a traditional recessed housing.
Is it safe for insulated ceilings?
Yes, it is IC rated and safe for direct contact with insulation.
Where can this fixture be installed?
It is suitable for dry, damp, and wet locations, making it highly versatile.
What is the beam angle?
The fixture provides a wide 110° beam angle for even light distribution.
What is the expected lifespan?
The LED module is rated for 50000 hours of operation.
