Product Description

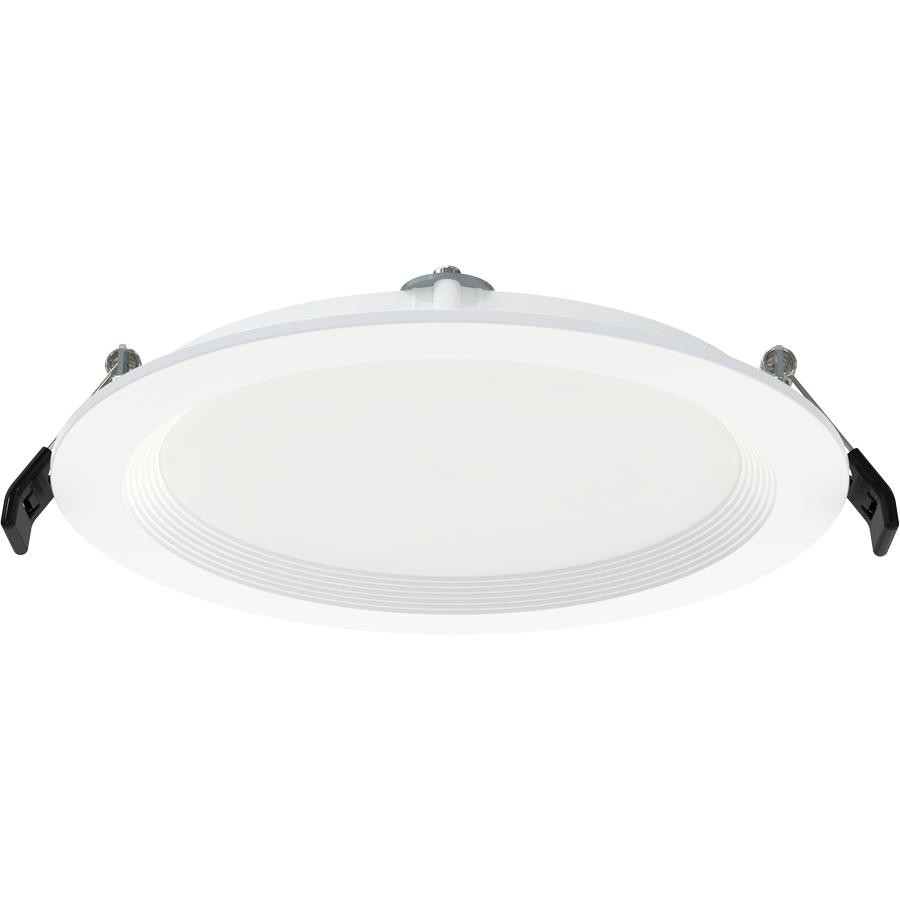

WFR34-6B/BP 6" Edge-lit WAFER34 120V 5CCT 90CRI Triac Dim Round Baffle 12PK from RAB Lighting is a contractor-focused ultra-slim LED wafer downlight designed for fast installation in both new construction and remodel applications. Featuring selectable color temperatures, high 90 CRI performance, TRIAC/ELV dimming, and a canless edge-lit design, this 6" round baffle wafer delivers flexible recessed lighting with wet location capability and convenient bulk 12-pack packaging.
Product Summary
Brand: RAB Lighting
Model: WFR34-6B/BP
Product Type: 6" Edge-Lit LED Wafer Downlight
Trim Style: Round Baffle
Input Wattage: 13W
Lumen Output: 865lm - 990lm
Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
CRI: 90 CRI
Voltage: 120V
Dimming: TRIAC/ELV dimming to 10%
Pack Quantity: Bulk 12-Pack
Location Rating: Wet Location Rated
Free shipping on orders over $250
Product Benefits
- Ultra-slim canless design eliminates the need for traditional recessed housings, simplifying installation.
- 5CCT selectable technology allows lighting customization during installation for residential and commercial spaces.
- High 90 CRI illumination enhances color accuracy and visual comfort.
- Bulk contractor packaging provides efficient solutions for large residential and commercial projects.
Key Features
- 5CCT Adjustable: Selectable 2700K, 3000K, 3500K, 4000K, and 5000K settings.
- Edge-Lit LED Design: Smooth uniform light distribution with reduced glare.
- Canless Installation: No recessed housing required.
- 90 CRI: High-quality color rendering for enhanced interior lighting.
- TRIAC/ELV Dimming: Dims down to 10% on compatible systems.
- IC Rated: Approved for direct contact with insulation.
- Remote Driver Box: Includes integrated junction box and quick disconnect.
- Wet Location Rated: Suitable for indoor and outdoor environments.
Specifications
Technical Specifications
| Model Number | WFR34-6B/BP |
| Input Wattage | 13W |
| Lumen Output | 865lm - 990lm |
| Efficacy | 67.9-78.6 lm/W |
| Voltage | 120V |
| Operating Frequency | 60Hz |
| Power Factor | 0.9 |
| THD | <20% |
| Dimming | TRIAC/ELV dimming to 10% |
LED Specifications
| Selectable Color Temperatures | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 90 CRI |
| Beam Angle | 110° ±10° |
| R9 Value | Greater than 50 |
| Color Consistency | <5-step / <7-step MacAdam Ellipse binning |
| L70 Lifespan | 30,000 hours |
Construction & Compliance
| Fixture Size | 6" |
| Shape | Round |
| Trim Style | Baffle |
| Finish | White |
| Lens | Frosted polycarbonate diffuser |
| Enclosure Material | Plastic + Metal |
| Environment | Dry, damp, and wet locations |
| IC Rated | Suitable for direct contact with insulation |
| Compliance | UL Listed, NEC 410.16 Compliant, RoHS Compliant, California Title 24 Part 6 |
Applications
- Residential kitchens and living areas
- Bathrooms and shower lighting
- Hallways and corridors
- Multi-family housing developments
- Commercial retrofit projects
- New construction recessed lighting applications
Installation Tips
- Turn power off at the electrical panel before beginning installation.
- Use the included template to cut the proper 6-5/16" ceiling opening.
- Select desired color temperature using the integrated dip switch before mounting.
- Wire the remote driver box using black-to-black, white-to-white, and green-to-ground connections.
- Place all wiring back into the junction box before closing the driver cover.
- Lift retention tabs upward and push fixture into ceiling until flush.
- Compatible mounting plates and extension cables are available for advanced installations.
FAQ
Does this wafer require a recessed housing?
No. The ultra-slim canless design eliminates the need for traditional recessed housings.
What color temperatures are selectable?
The fixture includes selectable 2700K, 3000K, 3500K, 4000K, and 5000K settings.
Is this fixture dimmable?
Yes. The fixture supports TRIAC and ELV dimming down to 10%.
Can this fixture be installed in insulated ceilings?
Yes. The fixture is IC rated and approved for direct contact with insulation.
What is the cut-out size required?
The fixture requires a 6-5/16" ceiling cut-out.
Is the fixture suitable for wet locations?
Yes. The wafer is suitable for dry, damp, and wet environments.
What is included in the package?
Each package includes the wafer fixture, remote driver box, and installation template. This model is supplied in a bulk 12-pack configuration.
What trim style does this model use?
This version features a round white baffle trim for reduced glare and enhanced visual comfort.
