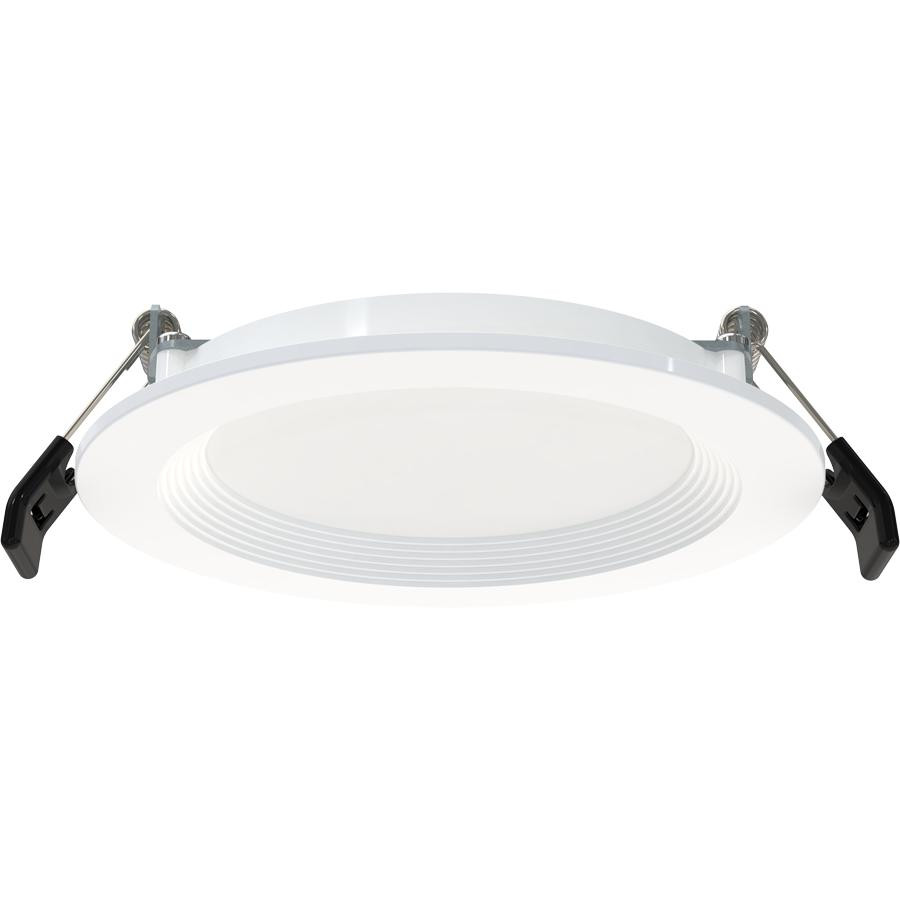

WFR34-4B/BP 4" Edge-lit WAFER34 120V 5CCT 90CRI Triac Dim Round Baffle 12PK

Product Description

WFR34-4B/BP 4" Edge-lit WAFER34 120V 5CCT 90CRI Triac Dim Round Baffle 12PK from RAB Lighting is a contractor-friendly ultra-slim LED wafer downlight designed for fast installation in new construction and remodel applications. Featuring selectable color temperatures, 90 CRI performance, TRIAC/ELV dimming, and a low-profile canless design, this 4" round baffle wafer provides flexible recessed lighting with wet location suitability and bulk 12-pack convenience.

Product Benefits

• Ultra-slim canless wafer design eliminates the need for traditional recessed housings.
• 5 selectable color temperatures provide flexible lighting customization during installation.
• 90 CRI output delivers enhanced color accuracy for residential and commercial environments.
• Bulk contractor packaging offers cost-effective installation for multi-unit and large-scale projects.

Key Features

• 5CCT Adjustable: Selectable 2700K, 3000K, 3500K, 4000K, and 5000K settings.
• Edge-Lit Technology: Uniform smooth illumination with reduced glare.
• Canless Installation: No recessed housing required.
• 90 CRI: High color rendering for improved visual comfort.
• TRIAC/ELV Dimming: Dims down to 10% on compatible systems.
• IC Rated: Approved for direct contact with insulation.
• Wet Location Rated: Suitable for indoor and outdoor use.
• Remote Driver Box: Includes integrated junction box with quick disconnect.

Specifications

Technical Specifications

Model Number	WFR34-4B/BP
Input Wattage	9W
Lumen Output	535lm - 650lm
Efficacy	59.4-72 lm/W
Voltage	120V
Operating Frequency	60Hz
Power Factor	0.9
THD	<20%
Dimming	TRIAC/ELV dimming to 10%

LED Specifications

Selectable Color Temperatures	2700K / 3000K / 3500K / 4000K / 5000K
CRI	90 CRI
Beam Angle	110° ±10°
R9 Value	Greater than 50
Color Consistency	<5-step / <7-step MacAdam Ellipse binning
L70 Lifespan	30,000 hours

Construction & Compliance

Fixture Size	4"
Shape	Round
Trim Style	Baffle
Finish	White
Lens	Frosted polycarbonate diffuser
Enclosure Material	Plastic + Metal
Environment	Dry, damp, and wet locations
IC Rated	Suitable for direct contact with insulation
Compliance	UL Listed, NEC 410.16 Compliant, RoHS Compliant, California Title 24 Part 6

Applications

• Residential kitchens and living areas
• Bathrooms and shower lighting
• Hallways and corridors
• Multi-family housing developments
• Commercial retrofit projects
• New construction recessed lighting installations

Installation Tips

• Turn power off at the electrical panel before installation.
• Use the included template to cut the proper 4-5/16" ceiling opening.
• Select desired color temperature using the integrated dip switch before mounting.
• Wire the remote driver box using black-to-black, white-to-white, and green-to-ground connections.
• Place all wiring back into the junction box before closing the driver cover.
• Lift retention tabs upward and push fixture into ceiling until flush.
• Compatible mounting plates and extension cables are available for advanced installations.

FAQ

Does this wafer require a recessed housing?

No. The ultra-slim canless design eliminates the need for traditional recessed housings.

What color temperatures are selectable?

The fixture includes selectable 2700K, 3000K, 3500K, 4000K, and 5000K settings.

Is this fixture dimmable?

Yes. The fixture supports TRIAC and ELV dimming down to 10%.

Can this fixture be installed in insulated ceilings?

Yes. The fixture is IC rated and approved for direct contact with insulation.

What is the cut-out size required?

The fixture requires a 4-5/16" ceiling cut-out.

Is the fixture suitable for wet locations?

Yes. The wafer is rated for dry, damp, and wet environments.

What is included in the package?

Each package includes the wafer fixture, remote driver box, and installation template. This model is supplied in a bulk 12-pack configuration.

What trim style does this model use?

This version features a round white baffle trim for reduced glare and improved visual comfort.
