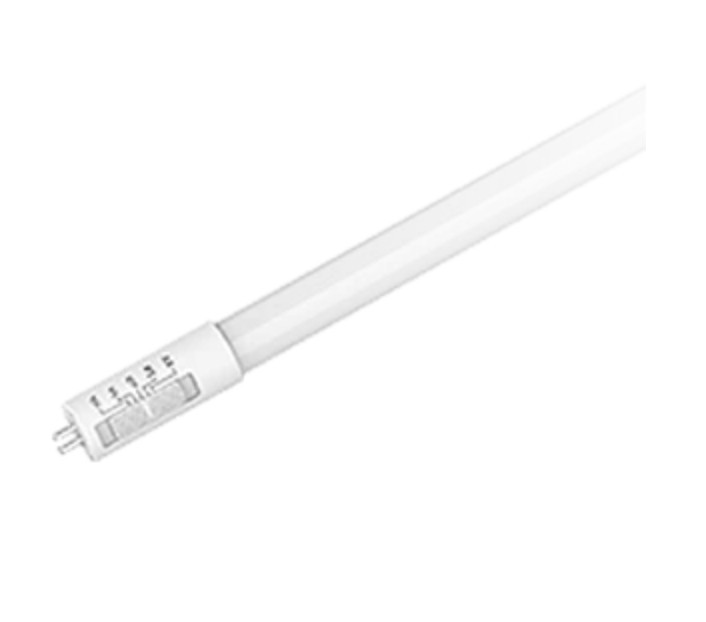

RAB Lighting T5HO-25-48G-8CCT-SD-BYP LED T5HO 4FT Glass 25W Type B G5 CRI80 3000/3500/4000/5000/6500K (25 Pack) is a high-performance LED retrofit tube designed to replace conventional 54W T5HO fluorescent lamps. Featuring ballast bypass Type B installation, selectable 5CCT technology, and a durable frosted glass enclosure, this 4 ft LED tube delivers efficient, uniform illumination for commercial, industrial, retail, and food-safe lighting applications.
Product Summary
- Product Type: LED Linear Tube
- Length: 4 ft
- Wattage: 25W
- Fluorescent Equivalent: 54W T5HO
- Lumen Output: 3,300 lm
- Efficacy: 132 lm/W
- Color Temperatures: 3000K / 3500K / 4000K / 5000K / 6500K
- CRI: 80
- Voltage: 120-277V
- Installation: UL Type B Ballast Bypass
- Base Type: G5
- Free shipping on orders over $250
Product Benefits
- 5CCT selectable technology allows quick adjustment between 3000K, 3500K, 4000K, 5000K, and 6500K for flexible lighting environments.
- Ballast bypass Type B installation eliminates ballast maintenance and improves long-term reliability.
- Frosted glass lens delivers smooth, diffuse illumination without visible hot spots.
- DLC Listed and NSF/ANSI Standard 2 certified for commercial and food-safe applications.
Key Features
- 5CCT Selectable: Adjustable color temperature via integrated dip switch.
- High Efficiency: Delivers 132 lm/W efficacy with 3,300 lumens output.
- Glass Construction: Durable frosted glass enclosure with metal endcaps.
- Type B Installation: Supports both single-ended and double-ended ballast bypass wiring.
- Wide Voltage Range: Compatible with 120-277V applications.
- 170° Beam Angle: Broad illumination coverage for general lighting.
- DLC Qualified: Eligible for utility rebates where applicable.
- 50,000-Hour Lifespan: Long-lasting LED performance.
Specifications
Performance Specifications
| Product Type | Linear Tube |
| Wattage | 25W |
| Wattage Equivalency | 54W T5HO Fluorescent |
| Lumen Output | 3,300 lm |
| Efficacy | 132 lm/W |
| Lifespan | 50,000 Hours |
| Length | 4 ft |
Electrical Specifications
| Input Voltage | 120-277V |
| Operating Frequency | 50/60Hz |
| THD | <25% |
| Power Factor | >0.9 |
| Dimmable | Yes, but not recommended for dimming applications |
| Operating Temperature | -4°F to 113°F (-20°C to 45°C) |
LED Characteristics
| Beam Angle | 170° |
| Color Temperatures | 3000K / 3500K / 4000K / 5000K / 6500K |
| CRI | 80 CRI |
| R9 Value | Greater than 0 |
| Color Consistency | <5-step (3000K/6500K); 7-step (3500K/4000K/5000K) |
| Color Stability | Shift no more than 200K over 5 years |
Construction Specifications
| Shape | T5HO |
| Base Type | G5 |
| Finish | White |
| Enclosure Material | Glass |
| Endcap Material | Metal |
| Lens Finish | Frosted |
Compliance & Certifications
| Listings | UL Recognized, UL Classified |
| DLC Listed | Yes, DLC 5.1 Qualified |
| NSF Listed | Food Zone (non-contact), Splash, and Non-Food Zones |
| Environment | Dry and damp locations |
| Fixture Compatibility | Open and enclosed fixtures |
| RoHS Compliant | Yes |
| FCC Compliance | Part 15 Compliant |
| California Title 20 | No |
| California Title 24 JA8 | No |
Packaging Dimensions
| Case Quantity | 25 |
| Case Dimensions | 46.77" L x 4.84" W x 4.57" H |
| Pallet Dimensions | 46.89" L x 33.9" W x 41.81" H |
Applications
- Commercial office lighting retrofits.
- Industrial and warehouse fluorescent replacement projects.
- Retail and hospitality lighting upgrades.
- Food preparation and kitchen lighting applications.
- Schools, healthcare facilities, and maintenance retrofits.
- Open and enclosed T5HO fixture replacements.
Installation Tips
- Installation should only be completed by a qualified electrician.
- Disconnect power before beginning ballast bypass installation.
- Supports both single-ended and double-ended wiring methods.
- Verify lamp holders are compatible and non-shunted where required.
- Do not use with damaged lamp envelopes or incompatible dimmers.
- Suitable for retrofit luminaires using up to 6 tubular lamps.
Frequently Asked Questions
What fluorescent lamps does this LED tube replace?
This LED tube is designed to replace conventional 54W T5HO fluorescent lamps.
Does this lamp require a ballast?
No, this is a UL Type B ballast bypass lamp that operates directly from line voltage.
What color temperatures are available?
The lamp includes selectable 3000K, 3500K, 4000K, 5000K, and 6500K color temperatures.
Can this tube be used in enclosed fixtures?
Yes, it is rated for use in both enclosed and open fixtures.
Is the lamp dimmable?
Yes, however dimming applications are not recommended.
What environments is this product approved for?
This lamp is suitable for indoor dry and damp environments.
Is this product suitable for food-safe environments?
Yes, it meets NSF/ANSI Standard 2 requirements for Food Zone (non-contact), Splash, and Non-Food Zones.
What is the expected lifespan?
The LED tube is rated for a 50,000-hour lifespan based on IES LM-70 testing.
