STL200H/L STL200H Sensor + PAR38 38W 3000K/4000K/5000K E26 90CRI 3600LM

Product Description

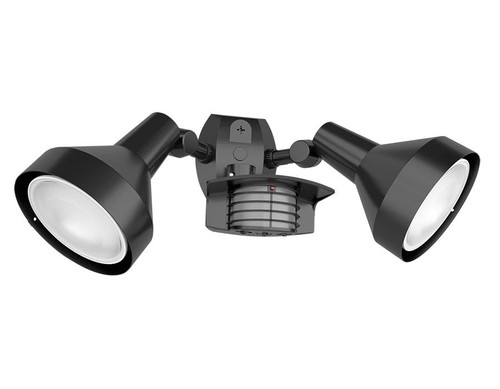

STL200H/L STL200H Sensor + PAR38 38W 3000K/4000K/5000K E26 90CRI 3600LM by RAB combines a motion-sensing outdoor floodlight with two Edison-base PAR38 LED lamps. Field-selectable color temperatures, adjustable detection controls, automatic daylight response, and protected manual override provide flexible security lighting for wet-location installations.

Product Benefits

• Choose between 3000K, 4000K, and 5000K in the field to match the desired outdoor lighting appearance.
• Automatically activates the floodlights when the infrared sensor detects the movement of people or vehicles within its protection zone.
• Adjustable sensitivity, time, photocell, and detection-zone controls help tailor operation to the installation site.
• Two bright PAR38 lamps deliver 3,600 lm while the photoelectric control deactivates the lights during daylight when configured for night-only operation.

Key Features

• Two selectable-CCT lamps: Includes two Edison-base PAR38 LED lamps with 3000K, 4000K, and 5000K field-selectable color temperatures.
• Advanced detection logic: Helps minimize false triggering.
• 200° detection pattern: Provides broad motion coverage with “Look Out” and two “Look Down” detection zones.
• Adjustable sensitivity: Control can be set from 30% to 100% to suit the required detection area.
• Adjustable operating time: Lights can remain on from approximately 5 seconds to 12 minutes after the detection zone is vacated.
• Photoelectric control: Supports night-only, dusk-adjusted, or 24-hour operation.
• Protected manual override: Allows the lights to be kept on for 6 hours without additional wiring.
• LED detection indicator: Displays the sensor’s detection state and provides a visible nighttime deterrent.
• Automatic temperature compensation: Adjusts sensitivity for consistent detection in hot and cold ambient temperatures.
• RF immunity: Shielded circuitry provides resistance to radio-frequency interference.
• CU4 EZ Plate: Universal cover supports round, rectangular, and octagonal surface-mounted or recessed boxes.
• Horizontal lock: No-tool joints help keep the sensing pattern level during installation.

Specifications

Technical Specifications

Lamp Type	Two Edison-base PAR38 LED lamps
Base	E26
Input Power	38W
Sensor Power Consumption	1W
Voltage	120V AC, 60Hz
Switching Capacity	120W electronic ballast (LED) at 120V
Surge Protection	Withstands up to 6000V

Performance Specifications

Light Output	3,600 lm
Selectable Color Temperature	3000K/4000K/5000K
Color Rendering Index	90 CRI
L70 Lifespan	15,000 hours
Detection Pattern	200°
Sensitivity Adjustment	30% to 100%
Time Adjustment	Approximately 5 seconds to 12 minutes
Automatic Test Period	5 minutes
Manual Override Duration	6 hours

Physical Specifications

Finish	Bronze
Floodlight Construction	Precision die-cast aluminum
Threaded Arm	1/2 in. NPS with serrated locking swivel
Overall Width	17 1/2 in.
Center Housing Width	4 5/8 in.
Floodlight Dimensions	7 in. x 5 5/8 in.
Weight	4.2 lb
Mounting	Wall or ceiling; round, rectangular, or octagonal surface-mounted or recessed box

Compliance & Safety

Listing	UL Listed
Location Rating	Suitable for wet locations
Grounding	Proper grounding required

Applications

• Outdoor security and entry lighting
• Wall-mounted or ceiling-mounted motion-activated lighting
• Detection of people or vehicles approaching the protected area
• Round, rectangular, or octagonal outdoor junction boxes
• Night-only, dusk-adjusted, or 24-hour motion-sensing operation

Installation Tips

• Turn off all power at the circuit breaker or fuse panel before installing or maintaining the fixture.
• Install in accordance with the National Electrical Code and all applicable local codes. Installation must be completed by a person familiar with the product’s construction, operation, and associated hazards.
• Mount the sensor 6–12 ft high for optimum range and detection.
• Position the sensor below and as far as possible from the lights, keeping it level for full coverage.
• Aim the sensor so expected movement travels across the detection pattern rather than directly toward it.
• Do not install the sensor on a circuit feeding motor loads such as HVAC equipment, kitchen appliances, washers, dryers, or garage door openers.
• Use the supplied blinders or lens mask and reduce sensitivity when a smaller detection area is required.
• Seal openings with silicone sealant and confirm the EZ Plate, mounting gasket, O-ring gasket, and finishing cap form a weatherproof seal.
• After installation, use the 5-minute test period to aim the sensor and conduct a walk test before setting the desired time, sensitivity, and photocell controls.

Frequently Asked Questions

What color temperatures can be selected?

Each included PAR38 lamp offers field-selectable 3000K, 4000K, or 5000K operation.

How much light does the STL200H/L produce?

The two PAR38 LED lamps provide a combined output of 3,600 lm with 90 CRI.

How long do the lights remain on after motion stops?

The adjustable time control can keep the lights on for approximately 5 seconds to 12 minutes after the detection zone is vacated.

Can the sensor operate during the day?

Yes. The photoelectric control can be adjusted for 24-hour operation, night-only operation, or activation at a selected dusk light level.

Can the floodlights be kept on manually?

Yes. Protected manual override is activated by slowly switching off-on-off-on within 2–3 seconds. The lights remain on for 6 hours. Switching off-on once within 2 seconds resumes automatic operation.

How can unwanted motion detection be reduced?

Reduce the sensitivity setting, aim the sensor toward the ground, or use the supplied snap-on blinders or lens mask to limit the detection zone.

What is the recommended mounting height?

Mounting the sensor 6–12 ft high provides optimum range and detection.

Can the STL200H/L be installed in wet locations?

Yes. The fixture is UL Listed and suitable for wet locations when installed with the required weatherproof seals.
