Product Description

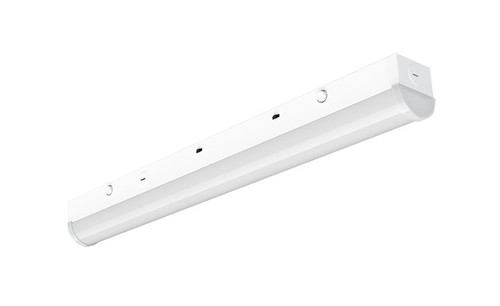

SR2 LED Strip 2FT 19/14/10W 5000/4000/3500K Jbox Adaptor White from RAB Lighting is a 2 ft field-adjustable LED strip fixture with selectable light output and selectable color temperature. This white SR2 LED strip features 19/14/10W power settings, 3500K/4000K/5000K CCT adjustment, 120-277V operation, 0-10V dimming, and a standard J-Box Adaptor mounting configuration.
Product Summary
- Fixture Type: LED Strip
- Size: 2 ft
- Wattage: 19/14/10W
- Color Temperature: 3500K/4000K/5000K
- Voltage: 120-277V
- Finish: White
- Free shipping on orders over $250
Product Benefits
- Field-adjustable 19W/14W/10W light output allows one fixture to support multiple lighting requirements.
- Selectable 3500K, 4000K, and 5000K color temperatures provide flexible lighting options for different indoor spaces.
- Standard 0-10V dimming supports energy savings and lighting control down to 10%.
- Surface mounting is standard, with V-Hooks and Chain mounting available using the SR VHOOK KIT ordered separately.
Key Features
- Field Adjustable Light Output: 19W/14W/10W with factory default 19W.
- CCT Selectable: 5000K, 4000K, and 3500K with factory default 4000K.
- High efficacy: Delivers 1,552-2,998 lm with 140.6-160.6 lm/W efficacy.
- Long LED life: 50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations.
- Standard dimming: Driver includes dimming control wiring for 0-10V dimming systems and dims down to 10%.
- Durable construction: Sheet metal housing with polycarbonate lens.
- Damp location rated: UL Listed suitable for damp locations.
- Continuous run capable: Up to 27 SR2 fixtures may be linked together using the SR JOIN KIT.
Specifications
Technical Specifications
| Product | SR2 |
| Family | SR |
| Size / Wattage | 2 = 2ft (19/14/10W) |
| Mounting | J-Box Adaptor |
| Driver Type | Constant Current |
| Voltage | 120-277V standard |
| Input Watts | 10-20.6W |
| Watts | 19/14/10W |
| 120V Current | 0.16A/0.12A/0.08A |
| 208V Current | 0.09A/0.07A/0.05A |
| 240V Current | 0.08A/0.06A/0.04A |
| 277V Current | 0.07A/0.05A/0.04A |
| THD | 6.33% at 120V, 12.02% at 277V |
| Power Factor | 99.8% at 120V, 98.22% at 277V |
| Surge Protection | L-N 1KV, L/N-G 2KV |
Performance Specifications
| Field Adjustable Light Output | 19W/14W/10W (factory default 19W) |
| Color Temperature | 3500K/4000K/5000K |
| CCT Selection | Color temperature selectable by 5000K, 4000K and 3500K (factory default 4000K) |
| Color Accuracy | 83-85 CRI |
| L70 Lifespan | 50,000 Hours |
| Lumens | 1,552-2,998 lm |
| Efficacy | 140.6-160.6 lm/W |
| Wattage Equivalency | 19W: (1) F32T8; 14W: (1) F32T8; 10W: (1) F32T8 |
| Dimming Driver | Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. |
| LEDs | Long-life, high-efficacy, discrete, surface-mount LEDs |
| Color Consistency | 4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color |
Physical Specifications
| Color | White |
| Weight | 2.5 lbs |
| Lens | Polycarbonate lens |
| Housing | Sheet metal |
| Mounting | Surface mounting standard. V-Hooks and Chain mounting available (ordered separately, SR VHOOK KIT). |
| Accessories | Suspended Mounting Kit: SR VHOOK KIT; Surface Mount Kit: SR JOIN KIT |
| Finish | Formulated for high durability and long-lasting color |
| Ambient Temperature | Max Power Temp Rating: 50°C (122°F); Middle Power Temp Rating: 55°C (132°F); Low Power Temp Rating: 62°C (144°F) |
| Cold Weather Starting | The minimum starting temperature is -20°C (-4°F) |
Compliance & Safety
| UL Listed | Suitable for damp locations |
| DLC Listed | This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements. |
| DLC Product Code | S-BY8SM3 (Direct Linear Ambient Luminaires) |
| DLC Product Code | S-DX6VKR (Stairwell and Passageway Luminaires) |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Warranty | 5 Yr Limited Warranty |
Applications
- Indoor ceiling-mounted LED strip lighting.
- Damp location linear ambient lighting applications.
- Stairwell and passageway luminaire applications.
- Projects requiring selectable wattage and selectable CCT from one fixture.
- Surface mounted installations using a J-Box Adaptor.
- Continuous row installations using the SR JOIN KIT.
Installation Tips
- Read carefully before installing fixture and retain the instructions for future reference.
- RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes.
- Proper grounding is required for safety.
- Disconnect or turn OFF power at the electrical panel before installing or maintaining fixture.
- The fixture is suitable for indoor ceiling mounting.
- Attach both Junction Box Cover Plates to the Fixture Housing and secure with provided screws.
- Make electrical connections as shown in the wiring diagram using approved wiring connectors and wire to local NEC codes.
- For 0-10V dimming, connect the black fixture lead to LINE, white fixture lead to COMMON, green GROUND wire to supply ground, purple fixture lead to (V+) DIM lead, and pink fixture lead to (V-) DIM lead.
- Locate the Field Adjustable Switches on the side of Fixture Housing to select Power (W) and Color Temperature (CCT).
- For SR2 continuous run mounting, up to 27 fixtures may be linked together using the SR JOIN KIT.
Frequently Asked Questions
What wattage settings are available on the SR2?
The SR2 provides field adjustable light output of 19W/14W/10W with factory default 19W.
What color temperatures can the SR2 be set to?
The SR2 is selectable by 5000K, 4000K and 3500K, with factory default 4000K.
What is the lumen output range?
The SR2 delivers 1,552-2,998 lm.
Is the SR2 dimmable?
Yes. The driver includes dimming control wiring for 0-10V dimming systems and dims down to 10%.
What voltage does this fixture support?
The SR2 supports 120-277V standard operation.
Is the SR2 suitable for damp locations?
Yes. The SR2 is UL Listed suitable for damp locations.
What mounting comes standard?
Surface mounting is standard, and the ordering matrix lists the standard mounting as J-Box Adaptor.
Can the SR2 be suspended with V-Hooks and Chain?
Yes. V-Hooks and Chain mounting is available with the SR VHOOK KIT ordered separately.
How many SR2 fixtures can be linked together?
Up to 27 SR2 fixtures can be linked together for continuous run mounting.
What warranty is included?
The RAB 5-year, limited warranty covers light output, driver performance and paint finish.
