SMP2X2 Panel Smfa 2'X2' Square 45W 4050LM CRI90 5CCT Unv Triac White

Product Description

SMP2X2 Panel SMFA 2' x 2' Square 45W 4050LM CRI90 5CCT UNV TRIAC White from RAB Lighting is a modern surface-mount LED panel designed for high-performance general lighting. Featuring field-adjustable color temperature, high color rendering, and universal voltage compatibility, this sleek fixture delivers reliable illumination for commercial and residential spaces.

Product Benefits

• Provides flexible lighting with 5 selectable color temperatures, allowing customization for different environments and user preferences.
• High CRI 90+ ensures accurate color rendering, making it ideal for offices, retail spaces, and healthcare settings.
• Slim, modern surface-mount design enhances aesthetics while delivering uniform, glare-free illumination.
• Energy-efficient 45W LED system replaces traditional 90W CFL fixtures, reducing energy consumption and maintenance costs.

Key Features

• 5CCT Selectable: Easily switch between 2700K, 3000K, 3500K, 4000K, and 5000K via internal dip switch.
• High Output: Delivers up to 4950 lumens with 110 lm/W efficacy.
• TRIAC/ELV Dimming: Smooth dimming capability down to 10% with compatible systems.
• Uniform Light Distribution: Polycarbonate diffuser ensures smooth, even illumination.
• Long Lifespan: 50,000-hour rated life reduces maintenance frequency.
• Universal Voltage: Compatible with 120–277V electrical systems.

Specifications

Technical Specifications

Wattage	45W
Lumen Output	4950 lm
Efficacy	110 lm/W
Voltage	120–277V
Dimming	TRIAC / ELV (down to 10%)
Operating Temperature	-20°C to 40°C
Frequency	50/60Hz

Performance Specifications

Color Temperature	2700K / 3000K / 3500K / 4000K / 5000K
CRI	90+
L70 Lifespan	50,000 hours
Color Consistency	4-step MacAdam Ellipse

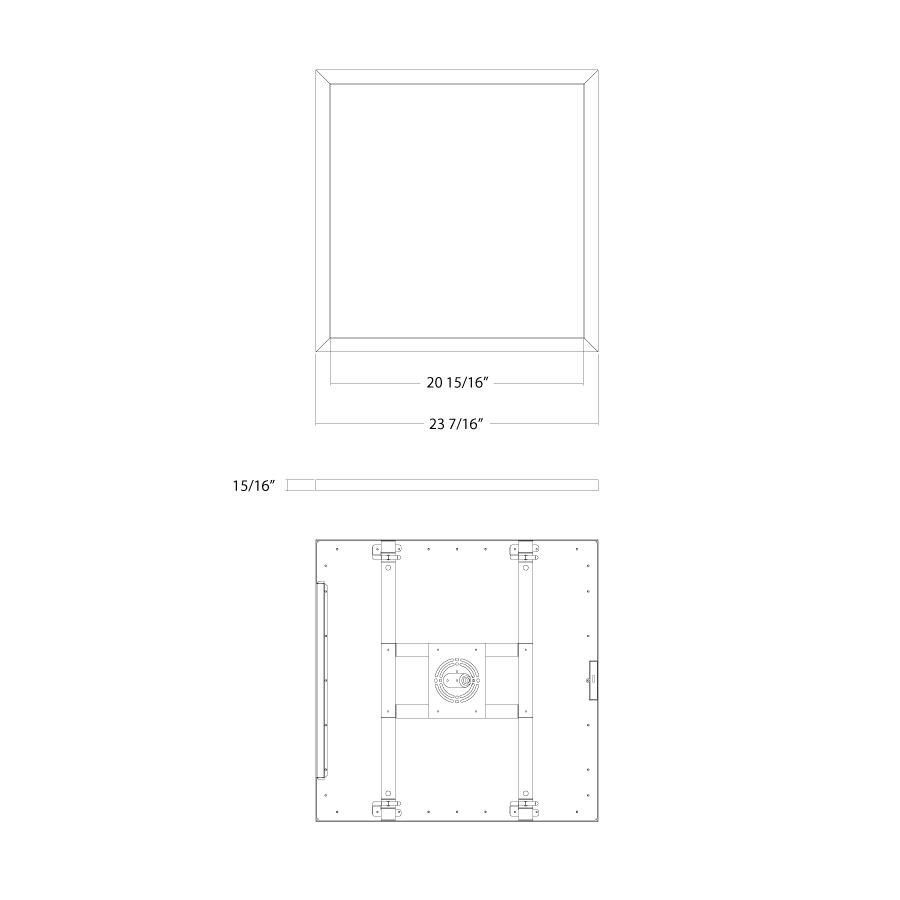

Physical Specifications

Size	2' x 2'
Shape	Square
Finish	White
Material	Metal housing with polycarbonate diffuser
Weight	7.0 lbs

Compliance & Safety

Listings	UL Listed
Environment	Suitable for dry and damp locations
Energy Compliance	Title 20, Title 24 JA8 compliant
FCC Compliance	Part 15B
RoHS	Mercury and UV free

Applications

• Office and commercial lighting
• Retail stores and showrooms
• Healthcare facilities
• Residential kitchens and living spaces
• Hallways, corridors, and common areas

Installation Tips

• Turn off power at the breaker before installation to prevent electrical shock.
• Use the included bracket and mounting hardware for secure surface installation.
• Select desired color temperature using the internal dip switch before mounting.
• Follow NEC and local electrical codes for proper wiring and installation.
• Ensure wiring is protected from sharp edges and secured properly within the junction box.

Frequently Asked Questions

Can I change the color temperature after installation?

The color temperature is selectable via an internal dip switch, so adjustments should be made prior to final installation.

Is this fixture dimmable?

Yes, it supports TRIAC and ELV dimming and can dim down to 10% with compatible dimmers.

What voltage does this panel support?

The fixture operates on universal voltage from 120V to 277V.

Is it suitable for damp locations?

Yes, it is rated for use in both dry and damp indoor environments.

How long does the LED last?

The fixture has a rated lifespan of 50,000 hours based on L70 performance.

Does it meet energy code requirements?

Yes, it complies with California Title 20 and Title 24 JA8 requirements.

What type of mounting is used?

This is a surface-mount fixture installed using a bracket and junction box.

What is included in the box?

The package includes the fixture, mounting bracket, screws, nuts, and installation hardware.
