Product Description

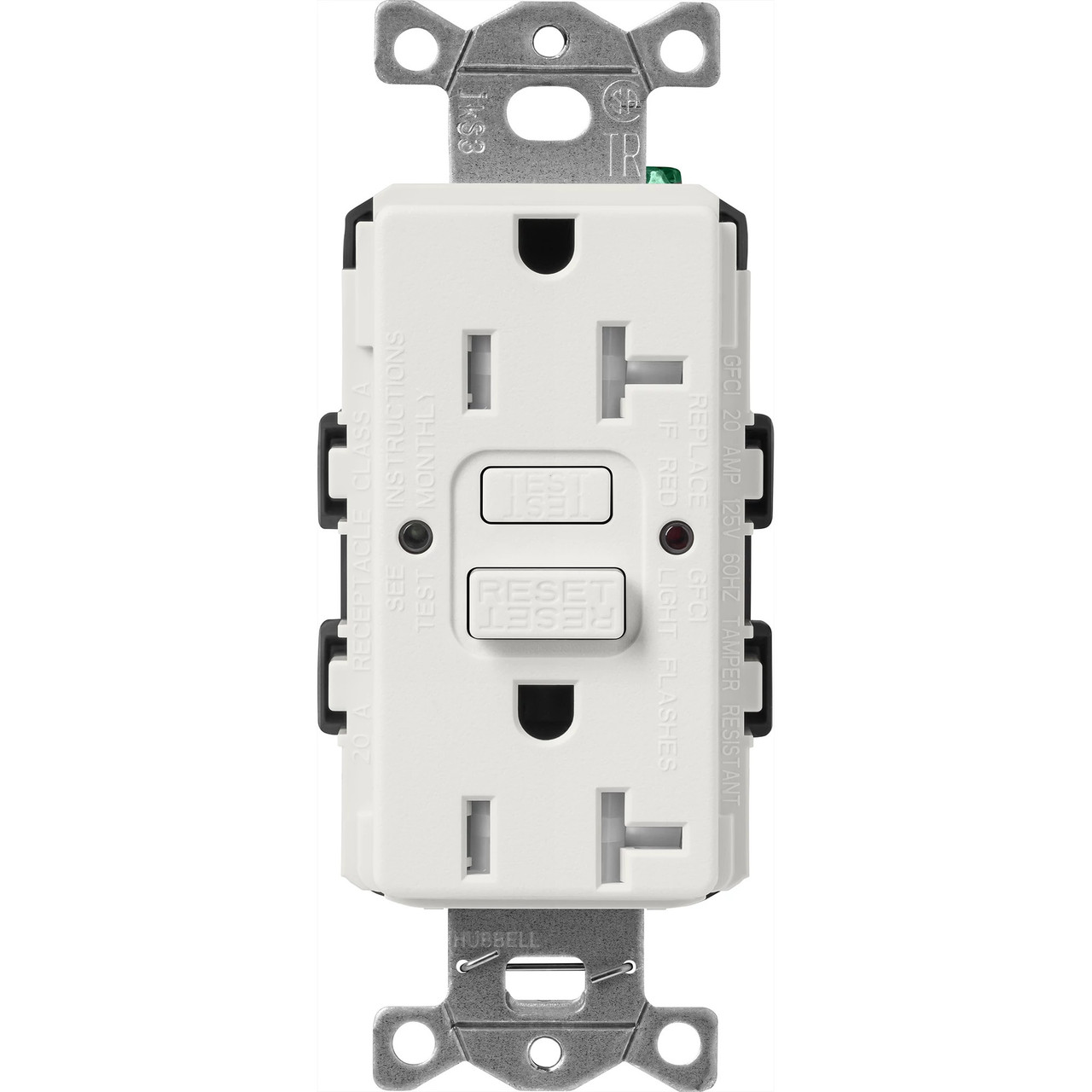

SCR-20-GFST-LG Lutron Claro Tamper-resistant Gfci Duplex Receptacle, 20-AMP is a Lutron tamper resistant, self-testing GFCI receptacle with 20 A, 125 V~ 60 Hz rating and a Lunar Gray satin finish. Designed for dependable ground fault protection, this Claro receptacle features continuous self-test functionality, LED status indication, and a tamper-resistant shutter mechanism.
Product Summary
- Product Type: Tamper Resistant, Self-Testing GFCI Receptacle
- Model: SCR-20-GFST-LG
- Rating: 20 A 125 V~ 60 Hz
- Trip Level: 4 – 6 mA
- Finish: Lunar Gray
- Free shipping on orders over $250
Product Benefits
- Provides continuous self-testing that initiates within 2.5 seconds and repeats every 30 seconds or less.
- Disconnects power to the receptacle if critical components are damaged and GFCI protection is lost.
- Helps improve safety with a reverse wire safety feature that prevents power to the face or downstream receptacles if wired incorrectly.
- Includes clear LED status indicators for power, trip condition/ground fault condition, and end of life.
Key Features
- Continuous self-test functionality: Disconnects power to receptacle if critical components are damaged and GFCI protection is lost.
- Three protection provisions: Continuous electronic sensing, manual test and reset, and auto-sensing mode for immediate interruption for a ground fault condition for Class A protection.
- Manual Test: Incorporates a full system test function that reviews the mechanical and electronic GFCI system for functionality.
- Reverse wire safety feature: If wired incorrectly there will be no power to the face or to downstream receptacles for added safety.
- LED indicating lights: Green LED for power to the device, Red LED for trip condition/ground fault condition, and Flashing Red LED for end of life.
- Tamper-resistant shutter mechanism: Permanently installed internal shutter mechanism capable of resisting insertion of foreign elements into the device.
- Internal back wiring clamp and guide pocket: Quick and dependable termination.
- Wallplate compatibility: Receptacle face compatible with NEMA designer and NovaT* designer-opening wallplates.
Specifications
Technical Specifications
| Model | SCR-20-GFST-LG |
| Product Family | Lutron GFCI – Tamper Resistant, Self-Testing Receptacles |
| Receptacle Type | Duplex GFCI Receptacle |
| Rating | 20 A 125 V~ 60 Hz |
| Voltage Range | 102 V~ – 132 V~ |
| Frequency | 60 Hz |
| Trip Level | 4 – 6 mA |
| Trip Time | .025 seconds (nominal) |
| Max Interruption | 10,000 A |
Performance Specifications
| Self-Test Initiation | within 2.5 seconds |
| Self-Test Cycle | every 30 seconds or less |
| Class A Protection | 4 – 6 mA |
| Immunity Level | Exceeds immunity level of 0.5 V over a frequency range of 150 kHz to 230 MHz |
| Radiated Emissions | Compliant for radiated emissions 30 – 1000 MHz |
| Conducted Emissions | Compliant for conducted emissions 150 kHz – 30 MHz |
Physical Specifications
| Finish | Lunar Gray |
| Finish Type | Satin Finishes |

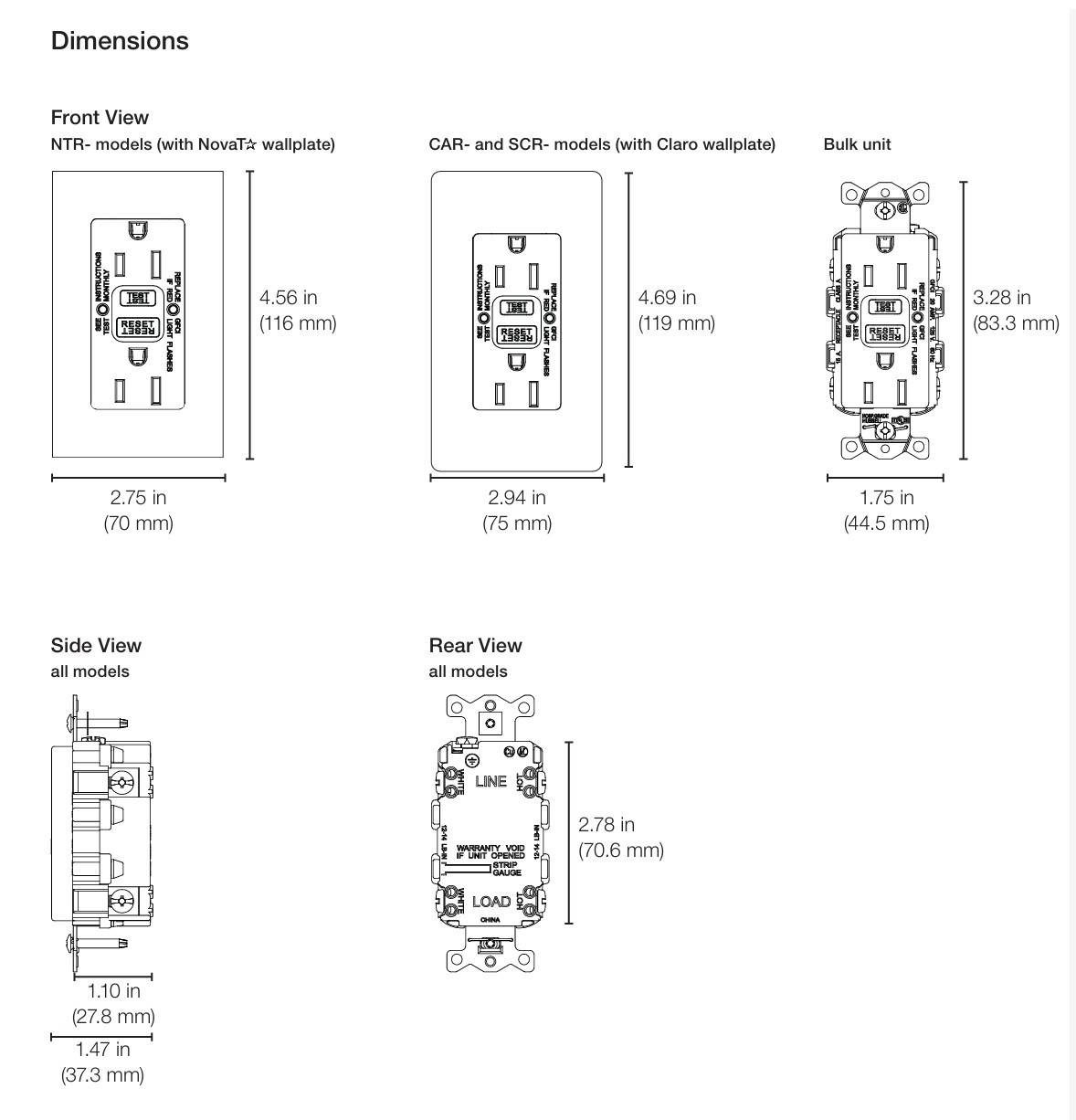

| SCR Model Front View with Claro Wallplate Height | 4.69 in (119 mm) |
| SCR Model Front View with Claro Wallplate Width | 2.94 in (75 mm) |
| Bulk Unit Height | 3.28 in (83.3 mm) |
| Bulk Unit Width | 1.75 in (44.5 mm) |
| Side View Depth | 1.10 in (27.8 mm) |
| Side View Overall Depth | 1.47 in (37.3 mm) |
| Rear View Height | 2.78 in (70.6 mm) |
Compliance & Safety
| UL Listed | UL® Listed |
| CSA Certified | CSA Certified |
| NOM Certified | NOM Certified |
| UL 943 | Meets UL® 943 Class A GFCIs |
| UL 498 | Meets UL® 498 for receptacles |
| NEC, CEC & OSHA | Complies to NEC®, CEC & OSHA |
| UL File | E-41978 |
| CSA File | LR-24886 |
| UL 943 Dust Test | Meets performance requirement section 6.20 UL® 943 GFCI |
| NEC Compliance | Compliant with NEC® 406.12 and NEC® 517-18(c) |
| Operating Temperature | -35 °C to 66 °C (-30 °F to 150 °F) |
| Maximum Humidity | 95% |
Applications
- 20 A, 125 V~ receptacle installations requiring GFCI protection.
- Installations requiring tamper-resistant receptacle functionality.
- Projects requiring self-testing GFCI receptacles with clear visual status indication.
- Applications requiring compliance with NEC® 406.12 and NEC® 517-18(c).
- Installations using NEMA designer and NovaT* designer-opening wallplates.
Installation Tips
- Choose the wiring diagram for either one cable entering the box or two cables entering the box.
- For one cable entering the box, the LINE cable brings power to the GFCI.
- For two cables entering the box, the LINE cable brings power to the GFCI and the LOAD cable feeds power to other receptacle(s).
- When using one cable entering the box, the yellow sticker remains in place to cover the LOAD terminals.
- For side wire connections, wrap wire clockwise, 2/3 of the way around the screw.
- For back wire connections, insert wire to the bottom of hole and tighten down screw.
- Use 1 in (25.4 mm) wire length for side wire connection.
- Use 5/8 in (16 mm) wire length for back wire connection.
Frequently Asked Questions
What is the amp rating for the SCR-20-GFST-LG?
The SCR-20-GFST-LG is rated for 20 A 125 V~ 60 Hz.
What finish is LG?
LG is Lunar Gray in the Satin Finishes group.
Does this GFCI receptacle self-test?
Yes. It provides continuous self-testing that initiates within 2.5 seconds and is a continuous cycle every 30 seconds or less.
What do the LED indicators show?
The Green LED indicates power to the device, the Red LED indicates trip condition/ground fault condition, and the Flashing Red LED indicates end of life.
What is the trip level?
The trip level is 4 – 6 mA.
What is the nominal trip time?
The nominal trip time is .025 seconds.
Does this receptacle have a tamper-resistant shutter mechanism?
Yes. It has a permanently installed internal tamper-resistant shutter mechanism capable of resisting insertion of foreign elements into the device.
What happens if the receptacle is wired incorrectly?
The reverse wire safety feature provides no power to the face or to downstream receptacles if wired incorrectly.
