Product Description

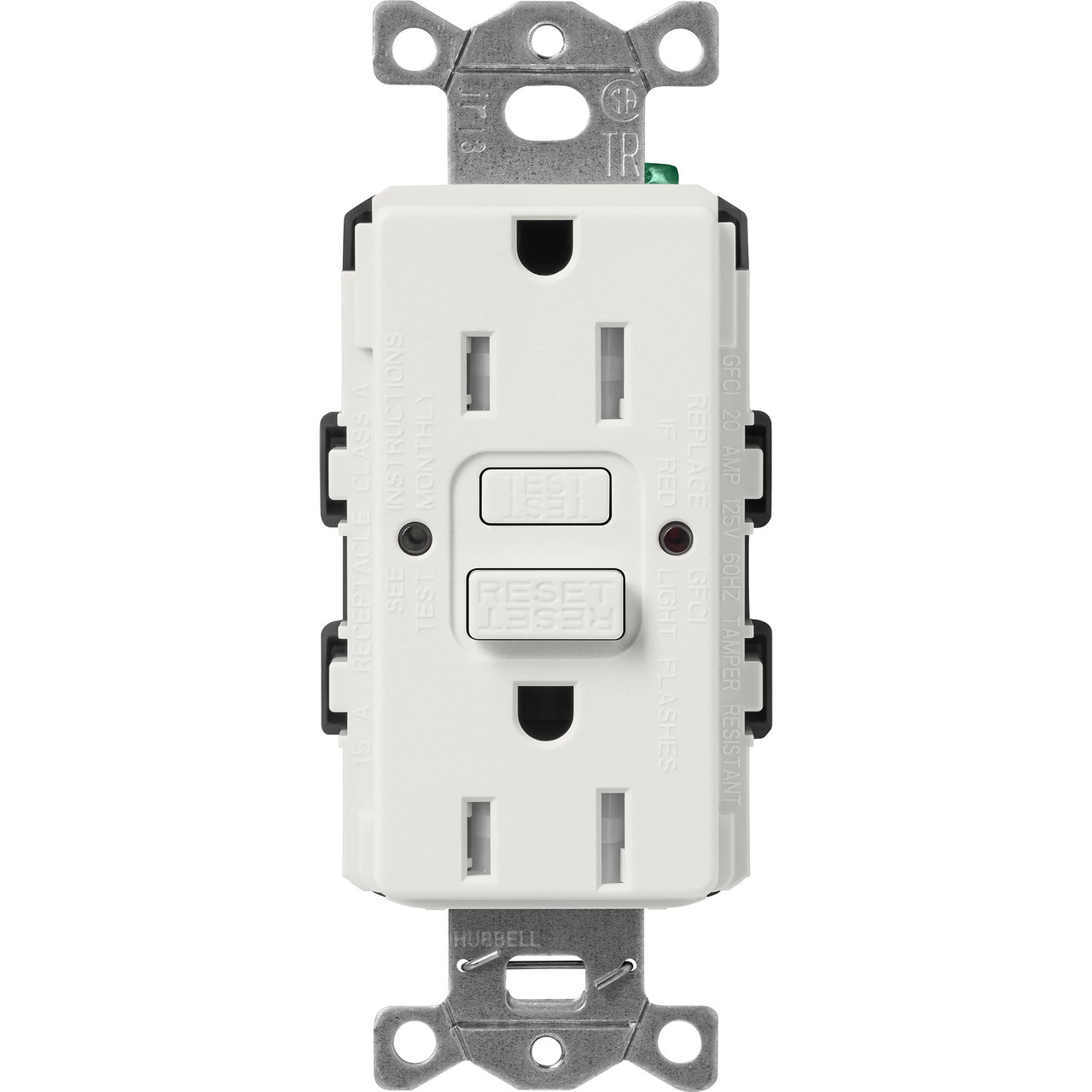

The SCR-15-GFST-LG Lutron Claro Tamper-Resistant GFCI Duplex Receptacle, 15-AMP delivers advanced electrical safety with continuous self-testing technology and reliable ground fault protection. Designed by Lutron, this GFCI receptacle provides enhanced protection for residential and commercial environments while maintaining a clean, designer aesthetic compatible with Claro wallplates.
Product Summary
- Amperage: 15 A
- Voltage: 125 V~ 60 Hz
- GFCI Protection: Class A (4 – 6 mA trip level)
- Self-Test Function: Continuous automatic testing every ≤30 seconds
- Safety Features: Tamper-resistant shutters + reverse wiring protection
- LED Indicators: Green (power), Red (trip), Flashing Red (end of life)
- Compliance: UL 943, UL 498, NEC 406.12, CSA Certified
- Installation: Back and side wiring compatible
- Design: Claro-style, designer wallplate compatible
- Shipping: Free shipping on orders over $250
Product Benefits
- Enhanced Safety Protection: Automatically disconnects power if GFCI protection is compromised, ensuring continuous electrical safety in kitchens, bathrooms, and outdoor circuits.
- Smart Self-Testing: Performs automatic diagnostics within 2.5 seconds and cycles every ≤30 seconds to maintain reliable protection without manual intervention.
- Child Safety Built-In: Tamper-resistant shutter mechanism prevents insertion of foreign objects, making it ideal for residential and family environments.
- Reliable Installation Performance: Reverse wiring protection prevents power flow if improperly wired, reducing installation errors and improving safety.
Key Features
- Continuous Self-Test Technology: Automatic testing cycle ensures ongoing GFCI protection integrity.
- Manual Test & Reset Function: Full system diagnostic testing via front-facing buttons.
- Class A Ground Fault Protection: Trips at 4 – 6 mA for maximum user safety.
- LED Status Indicators: Clear visual feedback for power, fault, and device lifecycle status.
- Tamper-Resistant Design: Internal shutters block foreign object insertion.
- Reverse Wiring Protection: No power delivered if wired incorrectly.
- Back Wiring Clamp System: Fast, secure, and dependable wire termination.
- Designer Compatibility: Works with Claro and NovaT wallplates.
Specifications
Electrical Specifications
| Amperage | 15 A |
| Voltage | 125 V~ (102 V – 132 V) |
| Frequency | 60 Hz |
| Trip Level | 4 – 6 mA |
| Trip Time | 0.025 seconds (nominal) |
| Max Interruption | 10,000 A |
Environmental Specifications
| Operating Temperature | -35 °C to 66 °C |
| Humidity | Up to 95% |
Physical Specifications
| Height | 4.69 in |
| Width | 2.94 in |
| Depth | 1.47 in |
Compliance & Certifications
| Certifications | UL Listed, CSA Certified, NOM Certified |
| Standards | UL 943, UL 498, NEC 406.12, NEC 517-18(c) |
Applications
- Residential kitchens, bathrooms, and laundry areas
- Commercial restrooms and breakrooms
- Outdoor or damp-location circuits requiring GFCI protection
- Healthcare and code-compliant installations
- New construction and retrofit electrical upgrades
Installation Tips
- Ensure correct LINE and LOAD wiring to activate proper GFCI functionality.
- Use back wiring clamp for faster and more secure installation.
- Verify grounding connection to electrical box when applicable.
- Test the device after installation using the built-in TEST button.
- Do not energize the circuit if reverse wiring protection prevents power—recheck connections.
Frequently Asked Questions
What does the self-testing feature do?
The device automatically tests itself every ≤30 seconds to ensure GFCI protection is functioning properly and disconnects power if a fault is detected.
What happens if the device fails?
If the GFCI reaches end of life or loses protection capability, a flashing red LED will indicate replacement is required.
Is this receptacle tamper-resistant?
Yes, it includes internal shutters that prevent foreign objects from being inserted into the outlets.
Can this be used outdoors?
Yes, when installed in an مناسب weatherproof enclosure, it is suitable for outdoor and damp locations.
What is the trip sensitivity?
The receptacle trips at 4 – 6 mA, meeting Class A GFCI protection standards.
Does it support both back and side wiring?
Yes, it supports both back wiring clamp connections and traditional side wiring.
What happens if it is wired incorrectly?
The reverse wiring protection feature prevents power from being delivered, ensuring safety during installation.
Is it compatible with designer wallplates?
Yes, it is designed to work with Lutron Claro and NovaT designer wallplates.
