Product Description

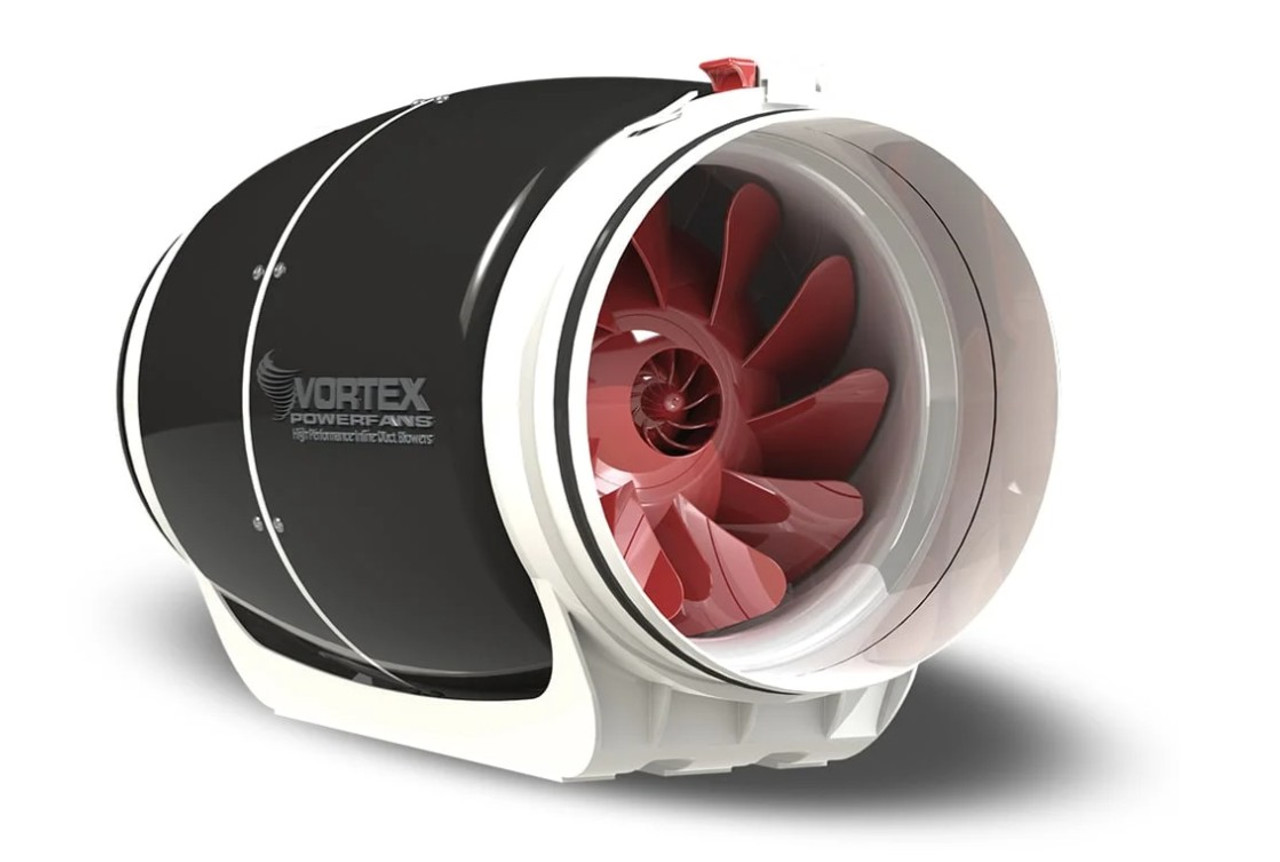

S-1000 Atmosphere Inline Fan is a heavy-duty 10" S-Series duct fan designed for high-performance ventilation in larger residential and commercial systems. Delivering an impressive 1032 CFM at 0.2" static pressure, this inline fan features a mixed-flow impeller and acoustically insulated polycarbonate housing for powerful yet quiet operation. Ideal for demanding airflow environments requiring superior efficiency and reliability.
Brand: Atmosphere / Panasonic
Model: S-1000
Duct Size: 10"
Airflow: 1032 CFM @ 0.2” SP
Power: 229W / 1.92 Amps
Housing: Impact-resistant polycarbonate with sound insulation
Warranty: 10-Year Manufacturer’s Warranty
Free shipping on orders over $250
Product Benefits
- Moves high volumes of air efficiently—ideal for large ventilation zones
- Integrated backdraft damper prevents air reversal and improves system efficiency
- Noise-reducing housing with acoustic insulation ensures quieter operation
- Designed for long duct runs in commercial, industrial, or greenhouse applications
Key Features
- Mixed Flow Impeller: Combines axial and centrifugal characteristics for powerful yet quiet airflow
- Double Insulated Housing: Minimizes vibration and condensation
- 100% Speed Controllable: Compatible with solid-state speed controllers
- ETL and AMCA Certified: Compliant with North American safety and airflow standards
- Thermal Overload Protection: Automatically resets if overheating occurs
Technical Specifications
| Technical Specs | |
|---|---|
| Input Voltage | 120V |
| Frequency | 60 Hz |
| Power | 229W |
| Amperage | 1.92 Amps |
| Speed (RPM) | 2970 RPM |
| Speed Control | Yes – solid-state compatible |
| Performance Specs | |
|---|---|
| Max CFM | 1090 CFM |
| CFM @ 0.125” SP | 1067 CFM |
| CFM @ 0.2” SP | 1032 CFM |
| CFM @ 1.0” SP | 781 CFM |
| Maximum Static Pressure | 1.766” W.G. |
| Physical Specs | |
|---|---|
| Duct Diameter | 10" |
| Length | 17.394" |
| Height | 15.282" |
| Width | 13.297" |
| Weight | 19.8 lbs |
| Compliance & Safety | |
|---|---|
| Certifications | ETL Listed, AMCA Air Listed |
| Overload Protection | Thermal auto-reset |
| Warranty | 10-Year Manufacturer Warranty |
Application Examples
- Large-scale grow room and greenhouse exhaust
- Commercial and industrial HVAC systems
- Server room cooling with high airflow demand
- Warehouse or production floor ventilation
Installation Tips
- Remove the fan body from its housing using the LIFT-button release
- Secure the mounting bracket with supplied screws to a solid structure
- Connect ductwork to both ends of the bracket
- Reinstall the fan and tighten flanges to lock securely
- Maintain a minimum 1-meter clearance from any accessible duct opening
Frequently Asked Questions
Q: How much airflow does the S-1000 provide?
A: It offers 1032 CFM at 0.2” SP and up to 1090 CFM maximum.
Q: What makes the housing noise-reducing?
A: The polycarbonate casing is double insulated to absorb sound and prevent condensation.
Q: Can the fan speed be adjusted?
A: Yes, it's compatible with most solid-state speed controllers.
Q: Does it include a backdraft damper?
A: Yes, it comes with a built-in backdraft damper to prevent unwanted airflow reversal.
Q: Is the fan easy to install?
A: Yes, the tool-less mounting bracket and LIFT-button design streamline installation.
Q: Can it be used for attic or workshop exhaust?
A: Absolutely—its high airflow and rugged design are suitable for attic, workshop, or industrial spaces.
Q: Does it require maintenance?
A: It features sealed-for-life bearings; simply inspect annually and clean the impeller as needed.
Q: Is it certified?
A: Yes, it is ETL Listed and AMCA Air Listed for compliance with U.S. and Canadian standards.
