Product Description

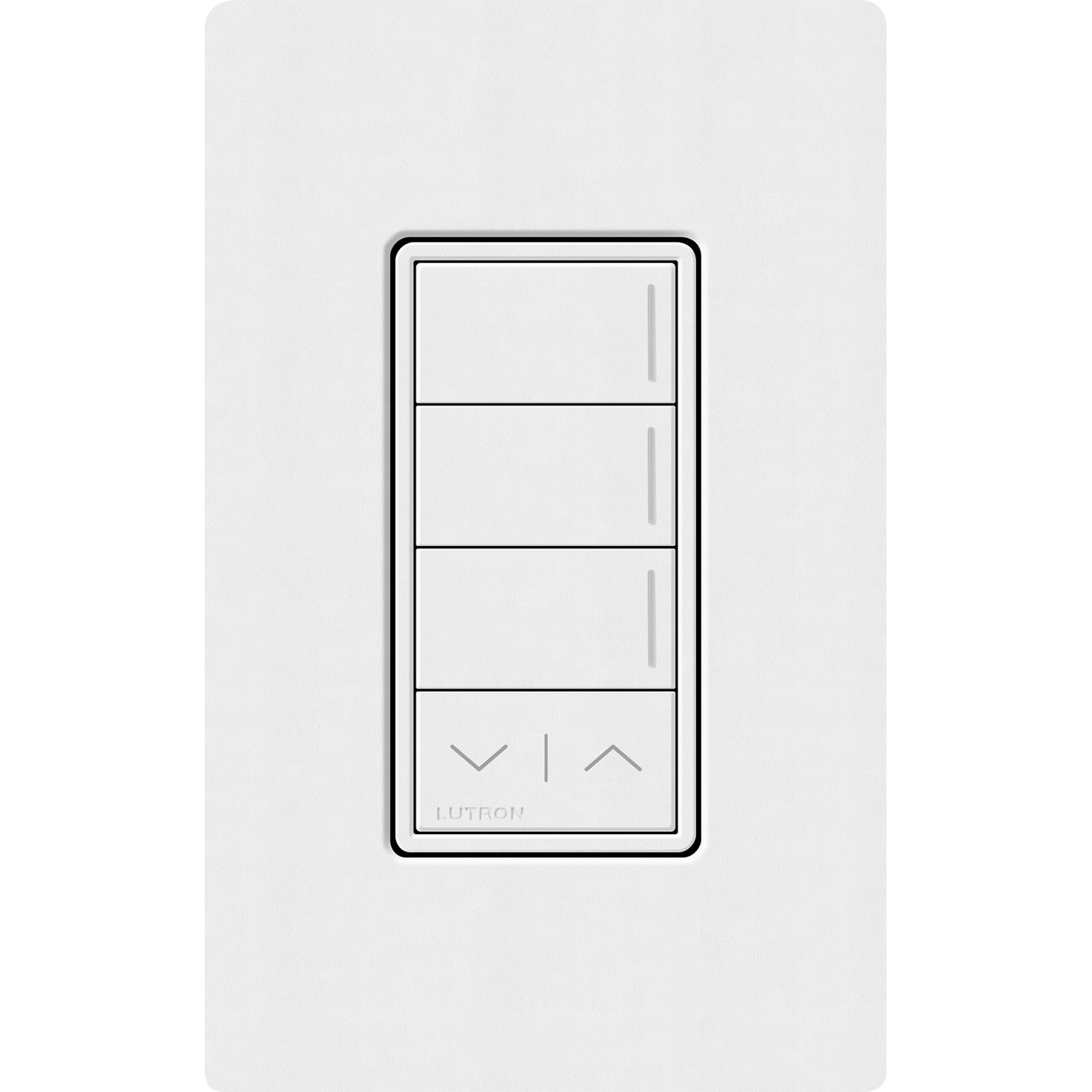

Lutron RRST-W3RL-SW RadioRA 3 Sunnata RF 3-Button Keypad with Raise/Lower – Snow White is a sophisticated smart control interface designed for seamless operation of lighting, shades, and connected devices within RadioRA 3 systems. Featuring three programmable buttons with integrated raise/lower functionality, this keypad delivers intuitive scene control with a sleek Sunnata design and customizable personalization options.
Product Summary
- Configuration: 3-button keypad with raise/lower
- Voltage: 120–277V
- Current: 0.25 A
- Power Consumption: 0.25W typical, 1.5W max
- Communication: Clear Connect Type X RF (2.4 GHz)
- Range: Up to 75 ft
- Mounting: Standard wallbox installation
- Finish: Snow White (SW)
- Environment: Indoor use only
- Shipping: Free shipping on orders over $250
Product Benefits
- Provides simple, centralized control of lighting scenes, shades, and automation systems.
- Raise/lower functionality allows fine-tuning of light levels and shade positions.
- Customizable button configurations and engraving enhance user experience and clarity.
- Elegant Sunnata design integrates seamlessly into modern residential and commercial spaces.
Key Features
- 3-Button Scene Control: Activate preset lighting and shading scenes
- Raise/Lower Function: Fine-tune light levels and shade positions
- Status LED Indicators: Visual feedback for active selections
- Custom Personalization: Replaceable button kits with custom engraving options
- Wireless RF Communication: Clear Connect Type X technology
- System Integration: Works with RadioRA 3 processors and devices
- Power Failure Memory: Returns to previous state after power restoration
- Modern Aesthetic: Large, easy-to-use buttons with LED locator bars
Specifications
Technical Specifications
| Voltage | 120–277V, 50/60Hz |
| Current | 0.25 A |
| Power Consumption | 0.25W typical, 1.5W max |
| Communication | Clear Connect Type X RF (2.4 GHz) |
| Range | Up to 75 ft |
| Operating Temperature | 0°C to 40°C |
| Humidity | 0% to 90% non-condensing |
Performance Specifications
| Control Type | Scene control with raise/lower adjustment |
| Functions | Lighting, shades, draperies, motorized screens |
| Programmability | Custom scenes and presets via system programming |
| LED Indicators | Status LEDs with adjustable intensity |
Physical Specifications

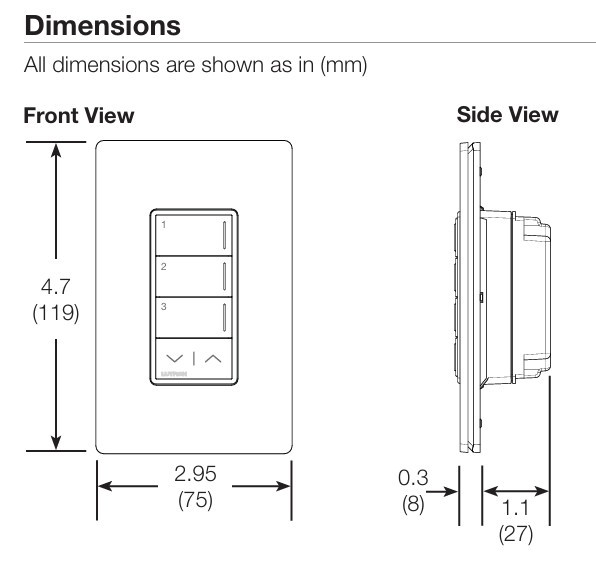

| Dimensions | 4.7 in H x 2.95 in W x 1.1 in D |
| Mounting | Standard U.S. wallbox (2¼ in min depth) |
| Finish | Snow White (SW) |
| Wallplate | Claro style, sold separately |
Applications
- Whole-home lighting and shading control systems
- Conference rooms and commercial automation
- Living rooms, bedrooms, and entertainment areas
- Multi-scene lighting environments
- Smart home integration projects
Installation Tips
- Install within 75 ft of the RadioRA 3 processor for reliable RF communication.
- Ensure neutral and hot wiring connections are properly secured.
- Use compatible Claro wallplates for a clean, finished appearance.
- Program scenes and button functions using Lutron Designer software.
- Position in accessible locations for optimal user interaction.
FAQ
What does the raise/lower function do?
It allows you to fine-tune lighting levels or adjust shades and draperies after selecting a scene.
Can I customize the button labels?
Yes, the keypad supports personalized button kits that can be customized using Lutron Designer software.
What systems is this keypad compatible with?
It is designed for use with Lutron RadioRA 3 systems.
Does it require a neutral wire?
Yes, both hot and neutral wiring connections are required for operation.
What devices can it control?
It can control lighting, shades, draperies, motorized screens, and other connected devices.
Is this keypad wireless?
Yes, it communicates wirelessly using Clear Connect Type X RF technology.
What happens after a power outage?
The keypad will return to its previous state when power is restored.
Is a wallplate included?
No, wallplates are sold separately.
