Product Description
RAB R6R14827120WB 6" Retrofit Downlight delivers 1,438 lumens from just 14W at a warm 2700K, providing an easy, tool-less upgrade for most 5" and 6" recessed housings with wet-location, ENERGY STAR® certified performance. The kit includes an E26 socket adapter and torsion springs for fast installation.

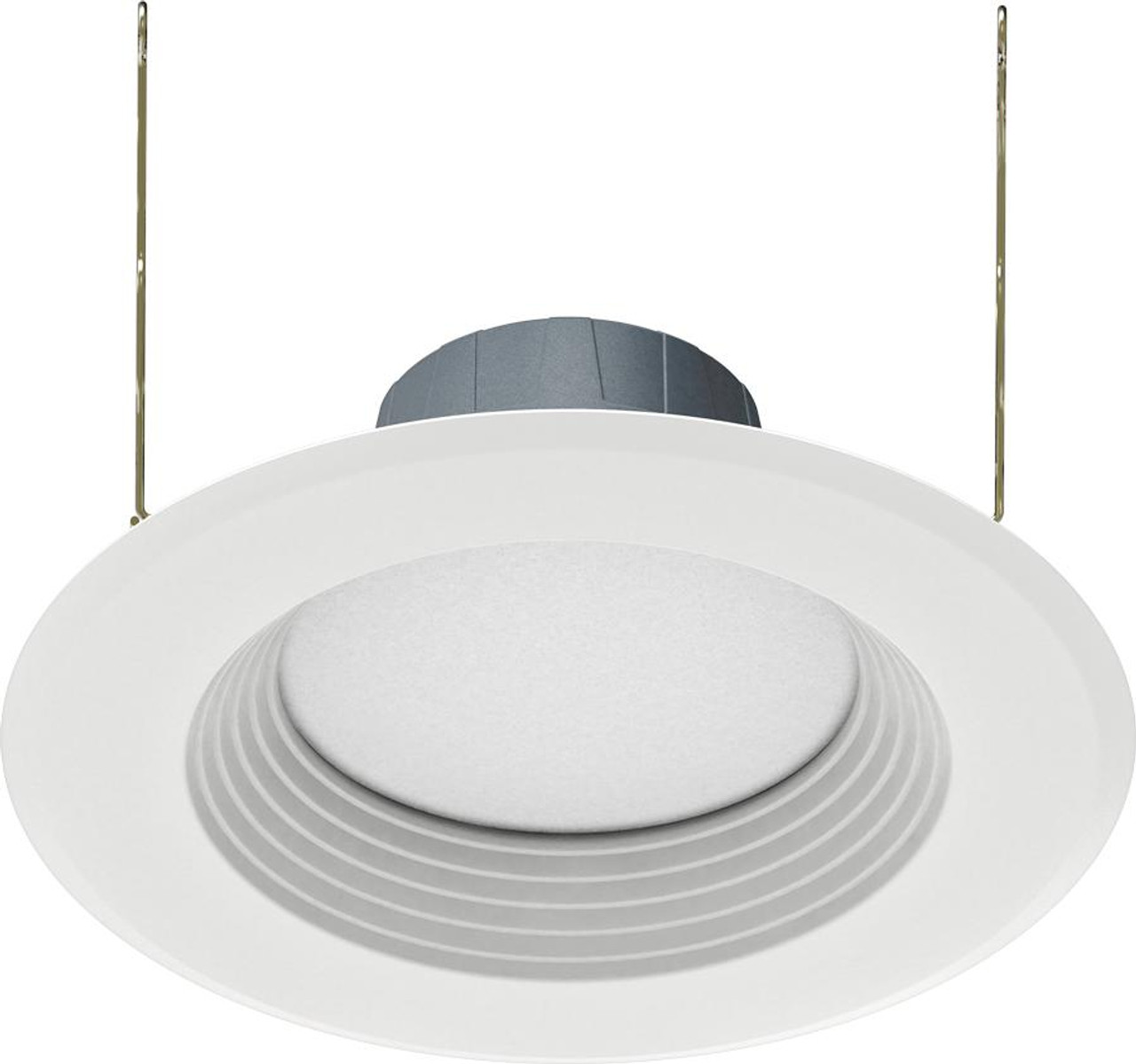

R6R14827120WB Retrofit Downlight, 14W, 2700K, 6-Inch
Round baffle-trim LED retrofit for 5"/6" cans; 1,438 lm output, 80 CRI, TRIAC dimming to 5%, wet-location rated, ENERGY STAR® 2.2 certified.
- Lumen Output: 1,438 lm
- Wattage: 14W (Input Watts 13.6W)
- CCT / CRI: 2700K / 80 CRI
- Voltage: 120V, 60 Hz
- Dimming: TRIAC, down to 5%
- Rating: Wet Location, ENERGY STAR® 2.2
Free shipping on orders over $250
Benefits
- Simple retrofit: Upgrades most 5" and 6" recessed housings without rewiring—ideal for quick residential and light commercial remodels.
- Energy savings: 100 lm/W efficacy replaces up to 100W incandescent while maintaining comfortable 2700K output.
- Wet-location ready: Suitable for showers and covered outdoor soffits where a wet rating is required.
- Reliable performance: 50,000-hour L70 lifetime and 5-year warranty minimize maintenance.
Key Features
- 1,438 lm @ 14W for bright, uniform illumination
- TRIAC dimming to 5% on compatible dimmers
- Round baffle trim with frosted, regressed polycarbonate lens for visual comfort
- Includes E26 adapter and torsion springs for fast install into 5"/6" cans
- Wet Location & ENERGY STAR® 2.2 certified
- Mercury/UV free; RoHS-compliant components
Specifications
Technical Specs
| Wattage | 14W (Input Watts 13.6W) |
| Input Voltage | 120V, 60 Hz |
| Driver Type | Constant current |
| Dimming | TRIAC phase-cut, to 5% (see compatible dimmer guide) |
| THD / Power Factor | <20% THD, PF ≥0.9 |
| L70 Lifetime | 50,000 hours |
| Beam Angle | 95° ± 10° |
Performance Specs
| Lumen Output | 1,438 lm |
| Efficacy | 100 lm/W |
| CCT | 2700K |
| CRI | 80 |
| Flicker | Silent operation, <30% flicker |
| Replacement | Up to 100W incandescent |
Physical Specs
| Form / Trim | Round baffle, regressed frosted lens |
| Housing | Durable steel sheet metal |
| Finish | Matte White |
| Compatibility | Most 5" & 6" recessed housings; Edison E26 socket adapter included |
| Weight | 0.7 lbs |
| Approx. Dimensions | Trim O.D. 7-3/8"; overall height ~2-3/4" (see diagram) |
Environmental & Ratings
| Operating Temp | -30 °C to 40 °C (-22 °F to 104 °F) |
| Location | Wet Location rated |
| Green Technology | Mercury and UV free; RoHS components |
Compliance & Safety
| ENERGY STAR® | Version 2.2 Certified (Model DLR0013; ID 2350004) |
| UL | UL Classified |
| NEC Closets | Compliant with NEC 410.16 (A)(1) and 410.16 (C5) |
| Warranty | 5-Year, No-Compromise Warranty |
| BAA | Available upon request |
Application Examples
- Residential remodels: living rooms, kitchens, bedrooms, hallways
- Wet areas: showers and covered outdoor soffits requiring wet location rating
- Light commercial: lobbies, corridors, small offices using existing 5"/6" cans
- Energy upgrades replacing 65–100W incandescent downlights
Installation Tips
- Power off at the breaker before starting.
- Remove existing trim and lamp; screw the included E26 adapter into the socket.
- Connect the downlight lead to the adapter, squeeze torsion springs, and seat into the can until flange is flush with the ceiling.
- Verify TRIAC dimmer compatibility for smooth low-level dimming to 5%.
- Ambient temperature must be within -30 °C to 40 °C for proper operation.
Frequently Asked Questions
Will this fit my existing recessed housing?
Yes—it's designed for most 5" and 6" cans and includes torsion springs plus an E26 socket adapter for quick install.
Is it wet-location rated for showers?
Yes, the fixture is UL Classified for wet locations.
What dimmers can I use?
Use compatible TRIAC phase-cut dimmers; the downlight dims smoothly to 5%.
How bright is it compared to older lamps?
At 1,438 lumens and 100 lm/W efficacy, it replaces up to a 100W incandescent downlight.
What is the lifetime and warranty?
L70 lifetime is 50,000 hours and it's covered by RAB’s 5-year, no-compromise warranty.
What are the overall dimensions?
The trim is about 7-3/8" in diameter with an overall height near 2-3/4". Refer to the dimensional drawing for details.
Is it suitable for closet installations?
Yes, it complies with NEC 410.16 (A)(1) and 410.16 (C5) for closet use.
