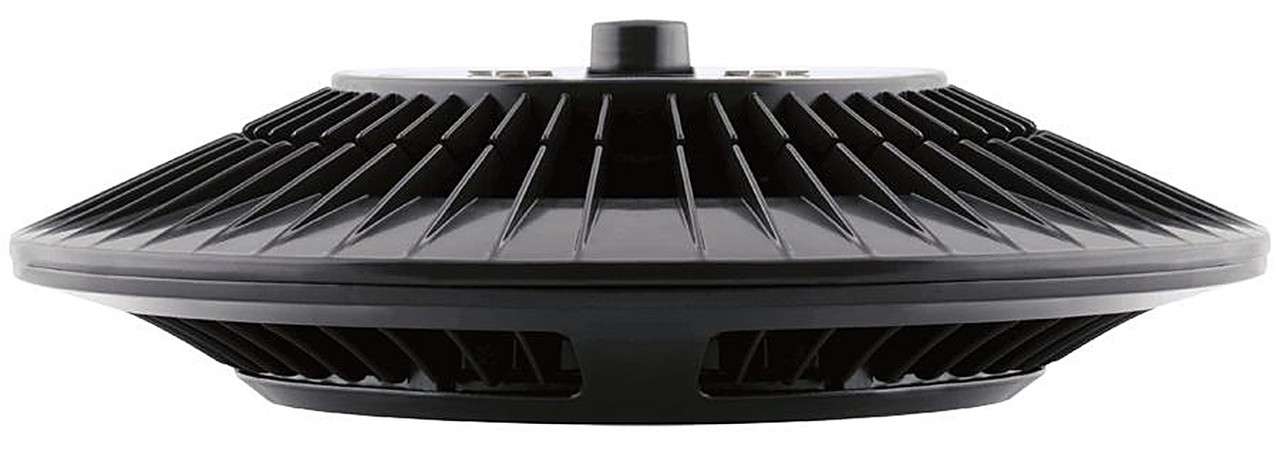

Product Description
The PLED26W480 Architectural Pendant is a high-performance lighting solution, designed to deliver bright, consistent illumination with a sleek and durable construction. With 2864 lumens, 26W power consumption, and 480V compatibility, this fixture is perfect for demanding architectural applications.
Key Features
- Bright Illumination: Delivers 2864 lumens with a color temperature of 5000K for cool, clear lighting.
- Long Lifespan: Rated for 100,000 hours of LED performance based on IES LM-80 results and TM-21 calculations.
- Durable Construction: Die-cast aluminum housing with a clear tempered glass lens and high-temperature silicone gaskets.
- Dimmable: Features 0-10V dimming for customizable brightness levels.
- Energy-Efficient: Mercury and UV-free with RoHS-compliant components, making it environmentally friendly.
- Weather-Resistant: UL listed for wet locations, ensuring reliability in outdoor settings.
- Thermal Management: Optimized for long LED and driver lifespan with advanced thermal management.
Specifications
- Lumen Output: 2864 lumens
- Wattage: 26W
- Voltage: 480V
- Color Temperature: 5000K
- Dimming: 0-10V dimmable
- Material: Die-cast aluminum housing with a clear tempered glass lens
- Certifications: UL Listed for wet locations, IESNA LM-79 & LM-80 tested
- Lifespan: 100,000 hours
- Green Technology: Mercury and UV-free, RoHS compliant
- Warranty: 5-Year Limited Warranty
- BUG Rating: B1 U1 G0
Installation Tips
- Ensure compatibility with 480V electrical systems before installation.
- Install in outdoor or wet locations as the fixture is UL listed for such environments.
- Use 0-10V dimming controls for customizable brightness levels.
- Refer to the SPEC SHEET for complete installation instructions and safety guidelines.
Frequently Asked Questions
Q: Is this light suitable for outdoor applications?
A: Yes, it is UL listed for wet locations and is suitable for outdoor use.
Q: What is the expected lifespan of this fixture?
A: The fixture has a rated lifespan of 100,000 hours.
Q: Does this light support dimming?
A: Yes, it features 0-10V dimming for adjustable brightness.
Q: Is the product Buy American Act compliant?
A: This product can be manufactured to comply with the Buy American Act upon request. Contact customer service for more details.
Q: What is the BUG rating of this light?
A: The BUG rating is B1 U1 G0, indicating minimal light pollution.
