Product Description
The NYUD-3L1345MPW from Nora Lighting is a stylish, architectural-grade 3" LED cylinder that provides up and down directional lighting. Finished in a clean matte powder white, this fixture is ideal for both residential and commercial applications. Its selectable color temperature and directional control allow for versatile and efficient illumination.
Key Specifications:
- Output: 3000lm total (1500lm up / 1500lm down)
- Power: 35W
- Selectable CCT: 3000K / 4000K / 5000K
- Input Voltage: 120-277VAC
- Finish: Matte Powder White
- Wet Location Rated: IP65
- Compliance: Title 24 JA8-2022
Free shipping on orders over $250
Why Choose the NYUD-3L1345MPW?
- Modern matte white finish blends effortlessly with any architectural style
- Selectable direction and color temperature for dynamic lighting flexibility
- Durable and weather-sealed for indoor and outdoor applications
- ADA compliant and Title 24 certified for regulatory peace of mind
Key Features

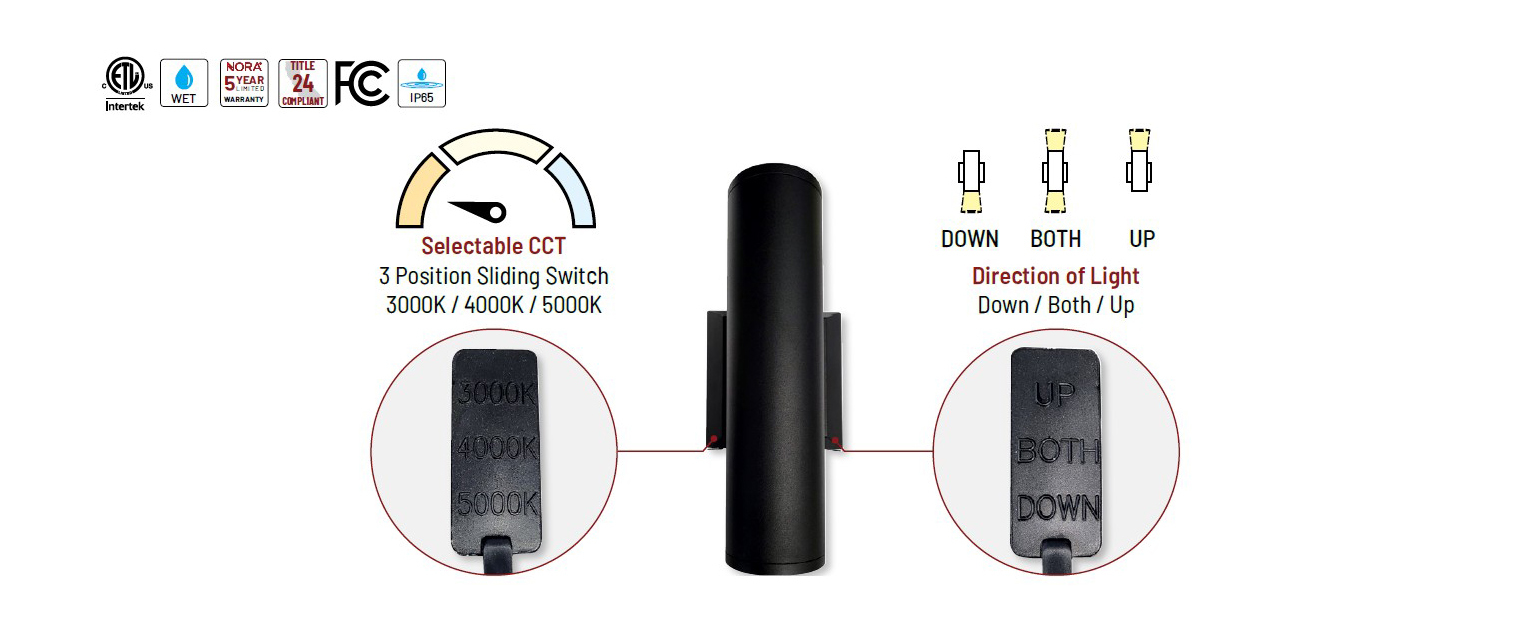

- Selectable CCT: 3000K, 4000K, and 5000K via integrated switch
- Directional Control: Independent switch to enable up, down, or both lighting
- Beam Spread: 31° Narrow Flood for focused lighting output
- Construction: Extruded aluminum body with powder-coated finish
- Sealed Glass Lens: Silicone sealed lens for IP65 wet location rating
Specifications
Technical Specs
| Input Voltage | 120-277VAC |
| Wattage | 35W |
| Dimming | 0-10V |
Performance Specs
| Total Lumen Output | 3000lm (1500lm each direction) |
| Selectable CCT | 3000K / 4000K / 5000K |
| CRI | 90+ |
| Beam Spread | 31° Narrow Flood |
Physical Specs
| Finish | Matte Powder White |
| Mounting | Compatible with 4" square and 4"/3" octagonal junction boxes |
| Construction | Extruded aluminum with die-cast canopy |
Application Examples
- Contemporary building facades and entryways
- Residential patios, decks, and garages
- Retail storefronts and signage illumination
- Hospitality corridors and exterior walls
Installation Tips
- Pre-select the desired light direction and CCT before installation
- Ensure all seals are intact for wet location use
- Use included hardware with compatible junction boxes
- Apply silicone caulking around base where required for added protection
Frequently Asked Questions
Q: Can I use this fixture as an uplight only?
A: Yes, an integrated switch allows selection between up, down, or both light directions.
Q: What makes this fixture ideal for outdoor use?
A: Its IP65 rating, sealed lens, and powder-coated body make it weather-resistant and durable.
Q: Does this light require a specific type of junction box?
A: It is compatible with standard 4" square or 4"/3" octagonal junction boxes.
Q: Is this fixture dimmable?
A: Yes, it supports 0-10V dimming for adjustable light output.
Q: What is the beam angle?
A: It features a 31° Narrow Flood beam spread for directional lighting.
Q: How is the CCT changed?
A: A sliding switch allows easy selection between 3000K, 4000K, or 5000K.
Q: Is the finish resistant to fading?
A: Yes, the durable matte powder coat helps resist UV fading and corrosion.
Q: Does this meet California energy codes?
A: Yes, it is Title 24 JA8-2022 certified for high efficacy lighting.
Q: What warranty is included?
A: The fixture includes a 5-year limited manufacturer warranty.
