Product Description
NULS-LED4540W 45" LED Linear Undercabinet 4000K White by Nora Lighting is a slim, low-profile lighting solution designed to deliver bright, even illumination for under cabinet, cove, and general lighting applications. Engineered for efficiency and flexibility, this 45" linear fixture offers a clean, modern appearance while providing reliable performance for residential and commercial environments.
Product Summary
- Length: 45"
- Wattage: 16W
- Color Temperature: 4000K
- Lumen Output: 525 lm per foot
- Voltage: 120V
- CRI: 80+ CRI
- Dimming: Triac dimmable down to 15%
- Construction: Slim, low-profile plastic housing with frosted lens
- Listing: cULus Listed for dry locations
- Warranty: 5-Year Limited Warranty
- Bonus: Free shipping on orders over $250
Product Benefits
- Provides uniform, glare-free illumination with a frosted lens that eliminates visible LED diode imaging.
- Ideal for under cabinet, cove, and task lighting in kitchens, offices, and retail spaces.
- Offers energy-efficient performance with long 60,000-hour lifespan and low power consumption.
- Flexible installation with linkable design and included connectors for continuous lighting runs.
Key Features
- Slim Low-Profile Design: Compact form factor fits seamlessly under cabinets.
- Frosted Lens: Ensures smooth, even light distribution.
- Linkable System: Easily connect multiple fixtures for extended runs.
- 120V Operation: Direct connection without additional drivers.
- Dimmable: Compatible with Triac dimmers down to 15%.
- Complete Kit: Includes mounting brackets and end-to-end connector.
Specifications
Technical Specifications
| Voltage | 120V |
| Wattage | 16W |
| Lumen Output | 525 lm per foot |
| Color Temperature | 4000K |
| CRI | 80+ CRI |
| Dimming | Triac dimmable to 15% |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Lifetime | 60,000 hours (L70) |
| Max Run Wattage | 120W |

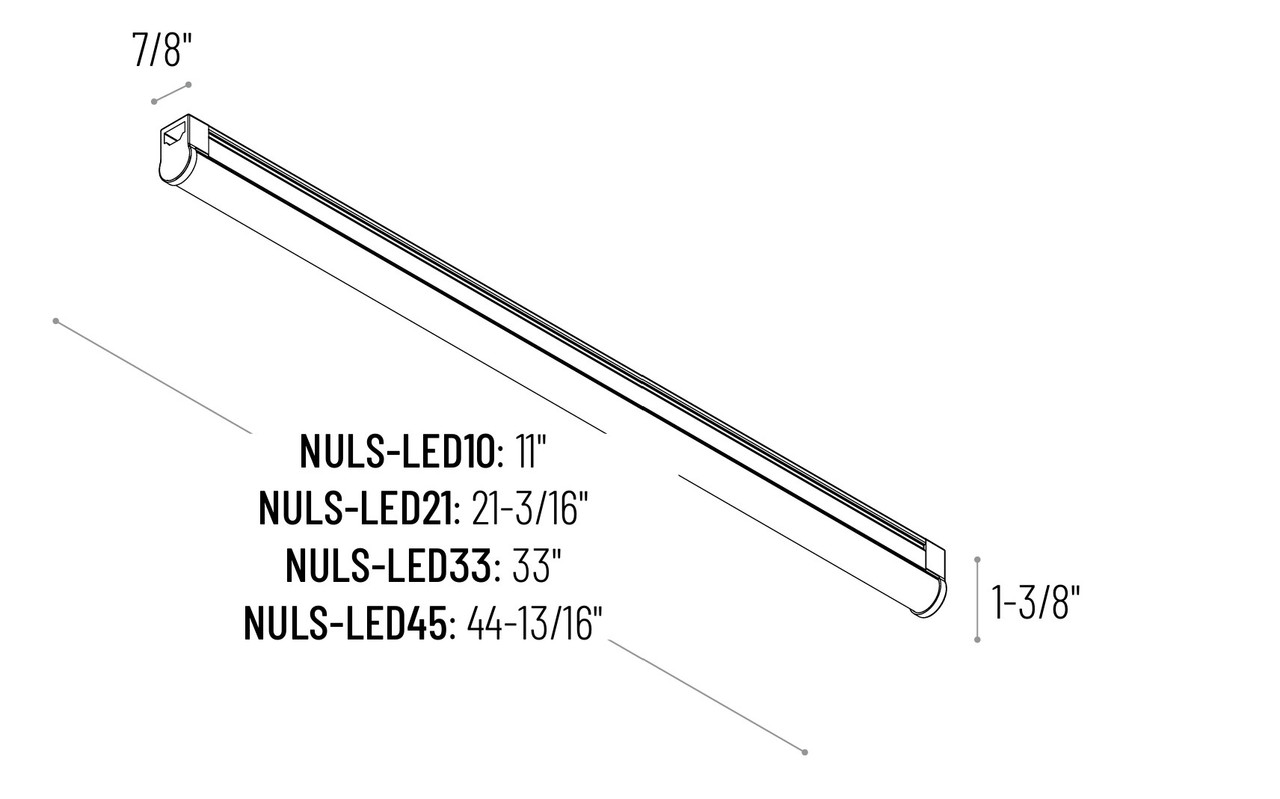

Physical Specifications
| Length | 44-13/16" |
| Height | 1-3/8" |
| Depth | 7/8" |
| Finish | White |
| Housing | Injection molded plastic |
Performance & Compliance
| Listing | cULus Listed for Dry Location |
| System Type | 3-Wire Linear System |
| Warranty | 5-Year Limited Warranty |
Applications
- Under cabinet lighting in kitchens and workspaces
- Cove lighting for accent illumination
- Retail display and shelving lighting
- Office task lighting and workstations
- Residential and commercial general lighting
Installation Tips
- Use included mounting brackets for secure and aligned installation.
- Take advantage of the linkable design to create continuous lighting runs.
- Ensure total connected load does not exceed 120W per run.
- Pair with compatible Triac dimmers for smooth dimming performance.
- Install in dry locations only as per safety listing.
FAQ
Can this fixture be linked with other units?
Yes, the NULS LED system is designed to be linkable using included connectors or optional jumper cables.
Is this light dimmable?
Yes, it is dimmable down to 15% when used with compatible Triac dimmers.
What type of voltage does it require?
This fixture operates on standard 120V input voltage.
What is the light output?
The fixture delivers 525 lumens per foot, providing bright and even illumination.
Can it be used in damp or wet locations?
No, it is rated for dry locations only.
What is included with the fixture?
Each unit includes mounting brackets and an end-to-end connector for easy installation.
How long does the fixture last?
It has a rated lifespan of 60,000 hours at L70 performance.
Can I hardwire this fixture?
Yes, it can be hardwired using compatible accessories such as a junction box or hardwire cord.
