Product Description

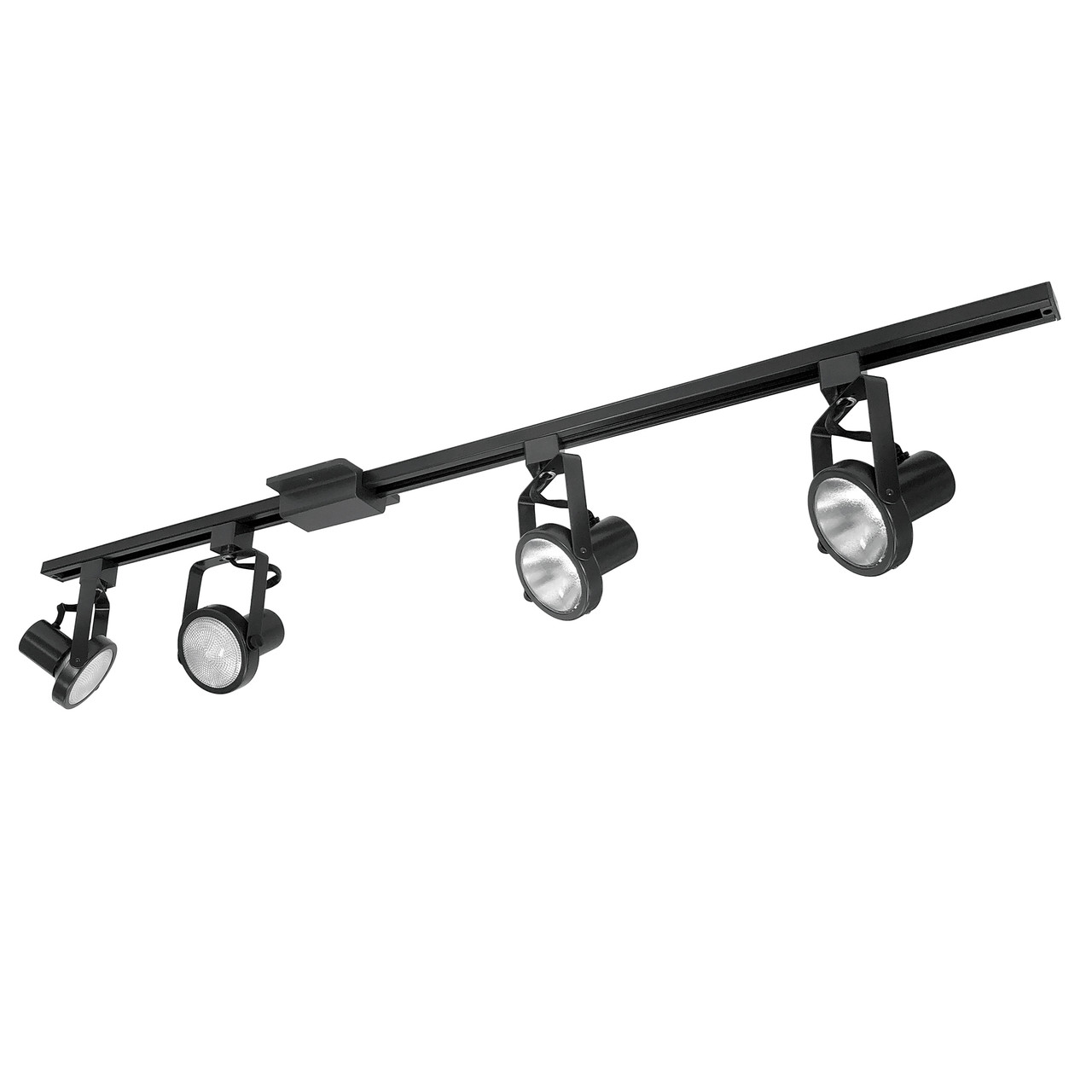

NTL-158B/4H 4-FT Track Pack With (4) Gimbal Ring PAR30 Track Heads Black from Nora Lighting is a line voltage gimbal ring track pack with one 4' single circuit extruded aluminum track and 4 PAR30 adjustable gimbal track heads in a black finish. The track includes 20-Amp rated flat, solid integral conductors, two end caps, and a floating canopy feed that allows the track to connect to an existing outlet box anywhere along the track.
Product Summary
- Track Length: 4'
- Fixture Type: Gimbal Ring Track Pack
- Track Heads: 4
- Lamp Type: 75W Par30 lamp
- Voltage: 120V input, 60Hz
- Finish: Black
- Free shipping on orders over $250
Product Benefits
- Includes a complete 4' line voltage track pack with adjustable gimbal ring PAR30 track heads for flexible indoor lighting layouts.
- Floating canopy feed allows the track to connect to an existing outlet box anywhere along the track.
- Adjustable yoke provides custom aiming for accent lighting and directional illumination.
- Interchangeable with Halo, Catalina, Hampton Bay, Halo-Edison, or any other brands configured to Halo 3 conductor track design.
Key Features
- 4' single circuit track: Extruded aluminum track with 20-Amp rated flat, solid integral conductors.
- PAR30 gimbal heads: Line voltage PAR adjustable gimbal track heads designed for 75W Par30 lamps.
- Deep drawn steel socket cup housing: Provides high strength and rigidity.
- Heat resistant wiring: Teflon coated wire lead resists heat degradation from lamp and housing radiation.
- Low profile gimbal ring: Minimum profile design with a high-tension stainless steel spring that secures the PAR light source.
- Adjustable yoke: Rigid steel “wishbone” yoke with dual plastic angle tightening knobs for secure angle positioning.
- Stainless steel contacts: Three 0.030 stainless steel contacts mounted in high heat rated plastic housing.
- Dimmable track: Nora track may be dimmed with any approved incandescent dimmer.
Specifications
Technical Specifications
| Catalog No. | NTL-158B/4H |
| Product Type | Gimbal Ring Track Pack |
| Track Type | Line Voltage Track Pack |
| Track Length | 4' |
| Fixtures | 4 |
| Lamp | 75W Par30 lamp |
| Lamp Included | Not included |
| Electrical | 2400 Watts, 120V input, 60Hz |
| Conductors | 20-Amp rated flat, solid integral conductors |
| Dimming | Nora track may be dimmed with any approved incandescent dimmer. |
Physical Specifications
| Finish | Black |
| Track Extrusion | .030 die cast aluminum construction with 0.045 PVC insulators holding 12-gauge flat conductor wiring |
| Track Head Housing, Socket Cup | 0.025 Deep drawn steel construction with softened edges |
| Gimbal Ring | 0.030 Baked enamel finished steel ring |
| Yoke | 0.085 Rigid steel “wishbone” yoke |
| Socket | Porcelain jacketed aluminum screw thread medium base socket |
| Wiring | Teflon coated wire lead |
| Contact Head Assembly | Three 0.030 stainless steel contacts mounted in high heat rated plastic housing |

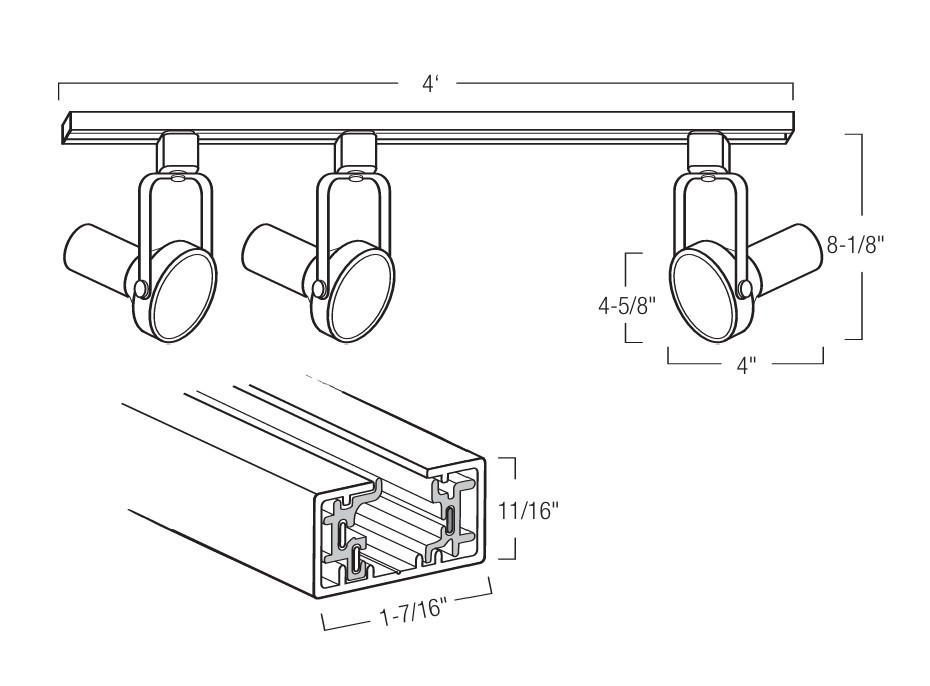

| Track Height | 11/16" |
| Track Width | 1-7/16" |
| Track Head Diameter | 4-5/8" |
| Track Head Length | 4" |
| Track Head Max. Extension | 8-1/8" |
Compliance & Safety
| UL Listed | UL Listed as track lighting fitting. |
| Location Rating | UL Listed for indoor, dry location. |
Applications
- Indoor, dry location track lighting installations.
- Accent lighting where adjustable PAR30 track heads are required.
- Line voltage track lighting systems using 120V input.
- Installations connecting to an existing outlet box anywhere along the track with the floating canopy feed.
- Compatible track applications configured to Halo 3 conductor track design.
Installation Tips
- Use only in indoor, dry locations.
- The floating canopy feed allows the track to connect to an existing outlet box anywhere along the track.
- The polarity groove is located on the face of the track to indicate the location of the grounding conductor.
- Fixtures may not be compatible with non-Nora transformers or monopoint adapters.
- Nora track fixtures are interchangeable with Halo, Catalina, Hampton Bay, Halo-Edison, or any other brands configured to Halo 3 conductor track design.
- Use 75W Par30 lamps; lamps are not included.
Frequently Asked Questions
What is included with the NTL-158B/4H track pack?
The NTL-158B/4H includes one 4' single circuit extruded aluminum track with two end caps, a floating canopy feed, and 4 gimbal ring PAR30 track heads.
What lamp type does this track pack use?
This track pack is designed for 75W Par30 lamps. Lamps are not included.
What is the input voltage?
The electrical rating is 2400 Watts, 120V input, 60Hz.
Can the track be dimmed?
Yes. Nora track may be dimmed with any approved incandescent dimmer.
What finish is this model?
The NTL-158B/4H has a black heat rated baked enamel paint finish.
Is this track pack UL Listed?
Yes. It is UL Listed as a track lighting fitting and UL Listed for indoor, dry location.
Is this track compatible with other track systems?
Nora track fixtures are interchangeable with Halo, Catalina, Hampton Bay, Halo-Edison, or any other brands configured to Halo 3 conductor track design.
What are the track head dimensions?
The track head has a 4-5/8" diameter, 4" length, and 8-1/8" max. extension.
