Product Description
NTH-108B/A Gimbal PAR38 Black from Nora Lighting is a versatile line voltage rear-loading track head designed for PAR38 lamps in retail, residential, and commercial accent lighting applications. Featuring durable die-cast aluminum construction and a fully adjustable gimbal yoke, this black track fixture delivers directional illumination with compatibility for one- or two-circuit track systems.
Product Summary
Brand: Nora Lighting
Model: NTH-108B/A
Product Type: PAR38 Rear Loading Gimbal Ring Track Head
Finish: Black
Track Style: H-Style Adapter
Lamp Type: PAR38
Maximum Wattage: 150W
Socket Type: Medium Base
Input Voltage: 120V
Construction: Die-cast aluminum and steel
Listings: UL Listed
Free shipping on orders over $250
Product Benefits
- Adjustable gimbal ring design allows precise directional lighting for accent and display applications.
- Compatible with PAR38 LED lamps for energy-efficient retrofit lighting performance.
- One- and two-circuit track compatibility provides flexible installation options for commercial track systems.
- Durable die-cast aluminum construction offers long-lasting strength and rigidity.
Key Features
- Rear Loading Design: Easy lamp replacement and maintenance.
- Gimbal Adjustment: Full directional aiming flexibility.
- PAR38 Compatibility: Supports PAR38 lamps up to 150W max.
- Medium Base Socket: Standard lamp compatibility.
- 120V Operation: Line voltage performance.
- Track Compatibility: One- or two-circuit track capable.
- Die-Cast Aluminum Housing: Superior durability and rigidity.
- Black Finish: Clean professional appearance for modern interiors.
Specifications
Technical Specifications
| Model Number | NTH-108B/A |
| Input Voltage | 120V |
| Lamp Type | PAR38 |
| Maximum Wattage | 150W Max |
| Socket Type | Medium Base |
| Lamp Included | No |
Construction Specifications
| Housing Material | Die-cast aluminum with deep drawn steel construction |
| Yoke Material | Rigid steel wishbone yoke |
| Finish | Black |
| Track Adapter | H-Style |

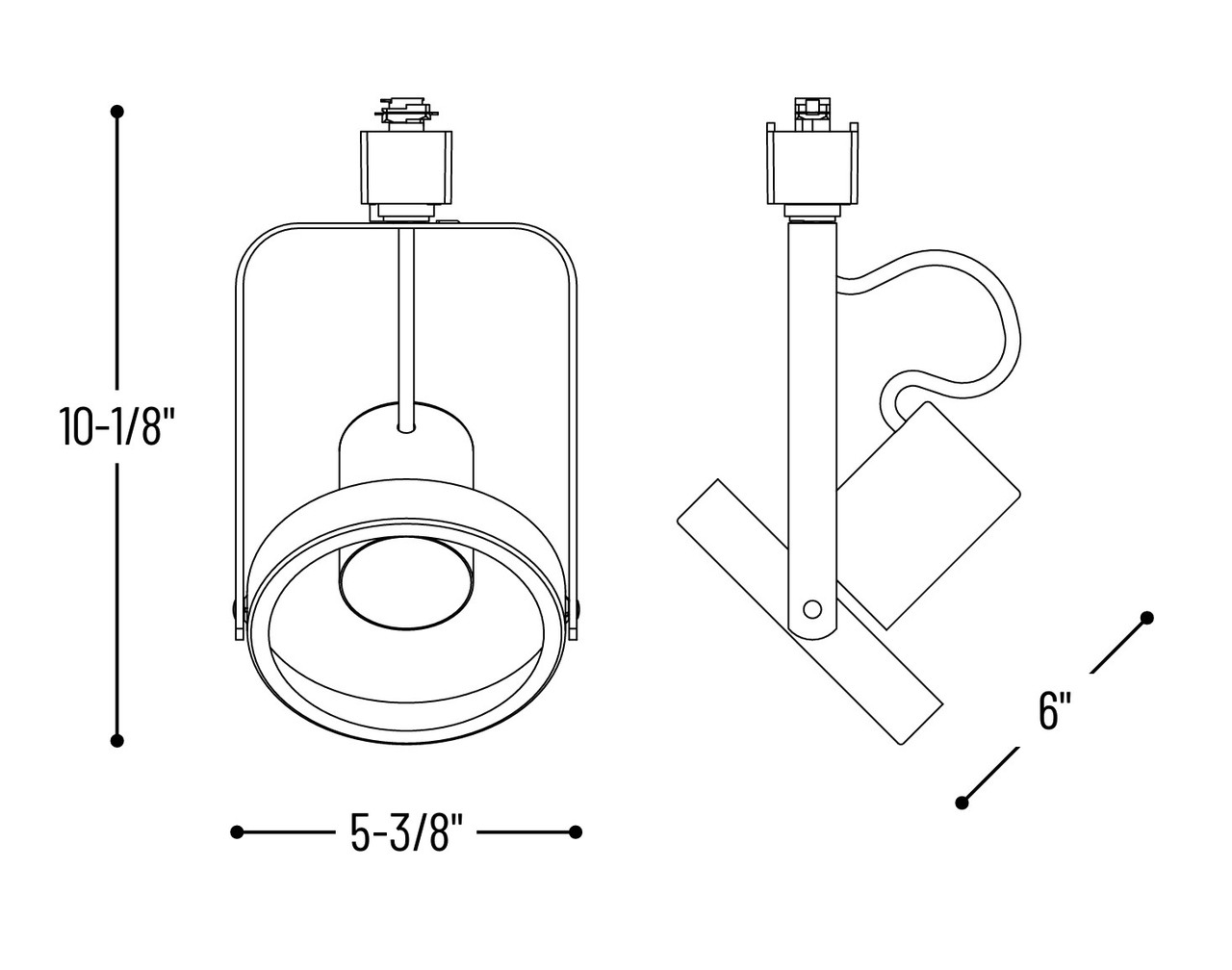

| Fixture Dimensions | 10-1/8" x 6" x 5-3/8" |
Compliance & Compatibility
| Listings | UL Listed |
| Track Compatibility | One- or two-circuit track systems |
| LED Compatible | Accepts PAR38 LED lamps |
Applications
- Retail display lighting
- Residential accent lighting
- Gallery and museum illumination
- Hospitality and restaurant track lighting
- Commercial merchandising displays
- Architectural directional lighting systems
Installation Tips
- Verify compatibility with H-style track systems before installation.
- Use PAR38 LED lamps for improved energy efficiency and reduced maintenance.
- Adjust the gimbal yoke carefully to achieve desired beam direction.
- For two-circuit track systems, adjust the positive contact position as required.
- Turn off power at the circuit breaker before installing or replacing lamps.
- Ensure lamp wattage does not exceed 150W maximum rating.
FAQ
What lamp type does this track head use?
This fixture is designed for PAR38 lamps with a medium base socket.
Is the lamp included?
No. The PAR38 lamp must be purchased separately.
Can this fixture use LED PAR38 lamps?
Yes. The fixture accepts compatible PAR38 LED lamps.
What track system is this fixture compatible with?
This model includes an H-style adapter for compatible H-track systems.
What is the maximum lamp wattage?
The fixture supports PAR38 lamps up to 150W maximum.
Can the fixture be adjusted?
Yes. The gimbal ring and yoke provide full directional aiming flexibility.
Is this fixture compatible with two-circuit track systems?
Yes. The positive contact can be adjusted for use on Nora Lighting NT-2300 series two-circuit track.
What finish does this model feature?
This configuration features a black finish for a clean professional appearance.
