Product Description

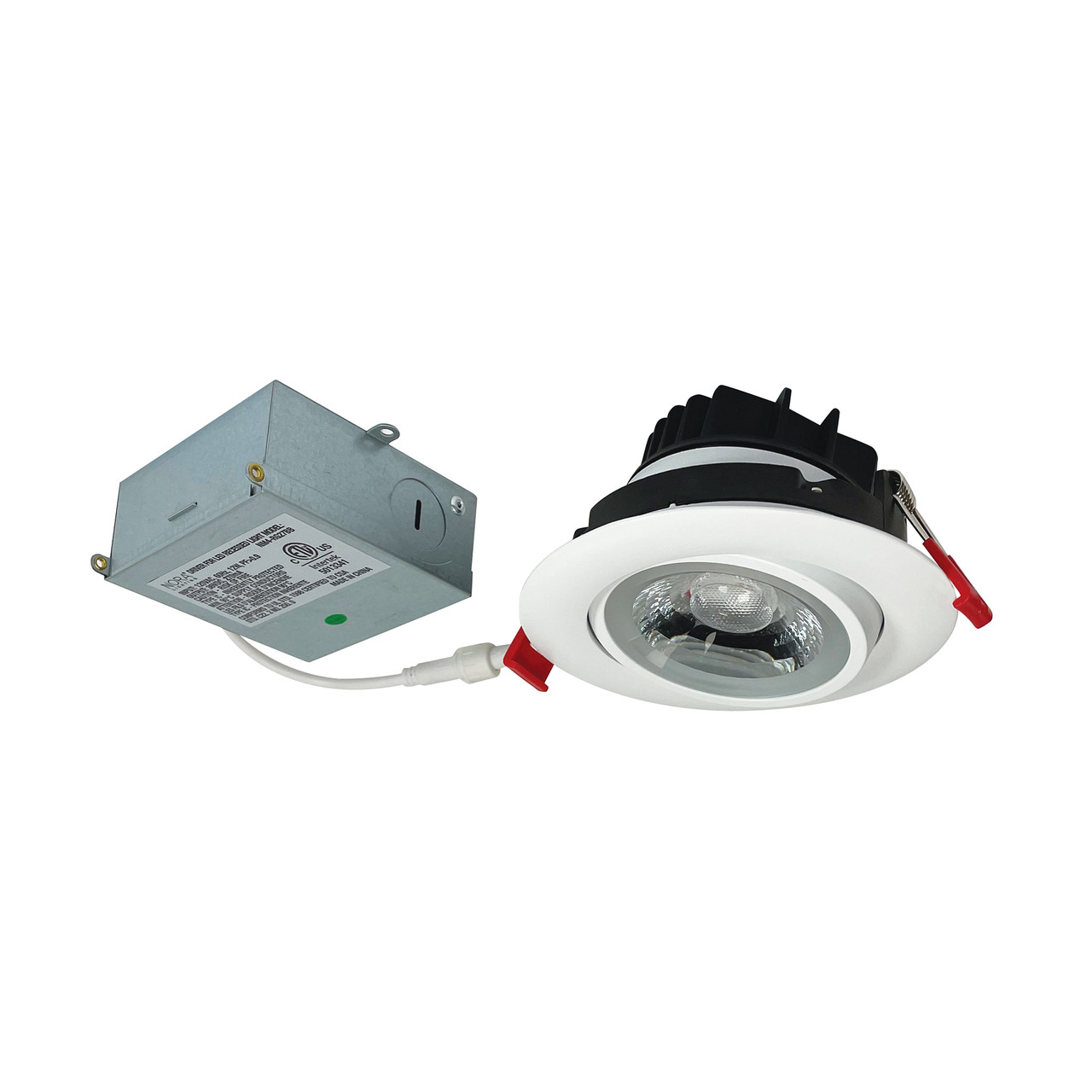

NM4-RG27MPW 4" M4 Round LED Adjustable Gimbal 950LM / 12W 2700K 120V Matte by Nora Lighting is a high-performance recessed lighting solution designed for both residential and light commercial applications. Featuring a compact, canless design with adjustable gimbal functionality, this fixture delivers precise directional lighting with excellent color quality, energy efficiency, and easy installation.
Product Summary
- Output: 950 lumens
- Wattage: 12W
- Color Temperature: 2700K
- Voltage: 120V
- CRI: 90+
- Beam Spread: 28° Narrow Flood
- Dimming: Triac / ELV, down to 10%
- Finish: Matte Powder White
- Rating: IC Air-Tight, Wet Location Listed
- Lifetime: 50,000 hours
- Certification: ENERGY STAR, Title 24 JA8
- Warranty: 5-Year Limited
- Shipping: Free shipping on orders over $250
Product Benefits
- Directional Accent Lighting: Adjustable 15° gimbal allows precise light aiming for highlighting architectural features or task areas.
- Easy Canless Installation: No housing required with integrated junction box simplifies installation in remodel or new construction projects.
- Energy Efficient Performance: High efficacy LED delivers 950 lumens using only 12W, reducing energy consumption and maintenance costs.
- Versatile Application: Wet location rating and IC Air-Tight design make it suitable for bathrooms, kitchens, soffits, and insulated ceilings.
Key Features
- Adjustable Gimbal: Up to 15° tilt for directional lighting control
- Canless Design: No recessed housing required
- High CRI: 90+ CRI for accurate color rendering
- Dimmable: Compatible with Triac and ELV dimmers down to 10%
- Quick Connect System: Includes prewired junction box with quick disconnect
- Air-Tight Construction: <2 CFM airflow for energy efficiency
- Wet Location Rated: Suitable for indoor and protected outdoor environments
- ENERGY STAR Certified: Meets strict energy efficiency standards
Specifications
Technical Specifications
| Voltage | 120V |
| Wattage | 12W |
| Lumen Output | 950 lm |
| Color Temperature | 2700K |
| CRI | 90+ |
| Beam Angle | 28° Narrow Flood |
| Dimming | Triac / ELV (down to 10%) |
| Lifetime | 50,000 hours (L70) |
Physical Specifications
| Size | 4" |
| Cutout | 4-1/4" |
| Finish | Matte Powder White |
| Construction | Die-cast aluminum |
| Mounting | Spring clip installation (up to 3/4" ceiling) |
Performance & Compliance
| Operating Temperature | 0°C to 25°C |
| Air-Tight Rating | <2 CFM (ASTM-283) |
| IC Rated | Yes (direct contact with insulation) |
| Wet Location | Listed |
| Certifications | cETLus, ENERGY STAR, FCC, Title 24 JA8 |
| Warranty | 5-Year Limited |
Applications
- Residential recessed lighting (living rooms, kitchens, bedrooms)
- Bathroom and shower lighting (wet location rated)
- Accent and directional lighting for artwork or architectural features
- Light commercial spaces such as offices, retail, and hospitality
- New construction or remodel installations
Installation Tips
- Ensure ceiling cutout is 4-1/4" for proper fit and secure installation.
- Use the included junction box with quick connect wiring for faster setup.
- Confirm compatibility with selected dimmer (Triac or ELV) for optimal performance.
- Avoid installation in spray foam insulation environments.
- Use extension cables if additional distance between driver and fixture is required.
Frequently Asked Questions
Is this fixture IC rated?
Yes, it is IC rated and can be installed in direct contact with insulation, except spray foam insulation.
Can this light be used in wet locations?
Yes, it is cETLus listed for wet locations, making it suitable for bathrooms and covered outdoor areas.
Does this fixture require a housing?
No, this is a canless design and does not require a recessed housing.
What type of dimmers are compatible?
This fixture is compatible with Triac and ELV dimmers and can dim down to 10%.
What is the beam spread?
The fixture features a 28° narrow flood beam for focused directional lighting.
How adjustable is the gimbal?
The gimbal can tilt up to 15° for targeted lighting control.
What is the expected lifespan?
The LED has a rated life of 50,000 hours at L70 performance.
Can this be used for new construction?
Yes, it is suitable for both new construction and remodel applications, with optional mounting accessories available.
