Product Description

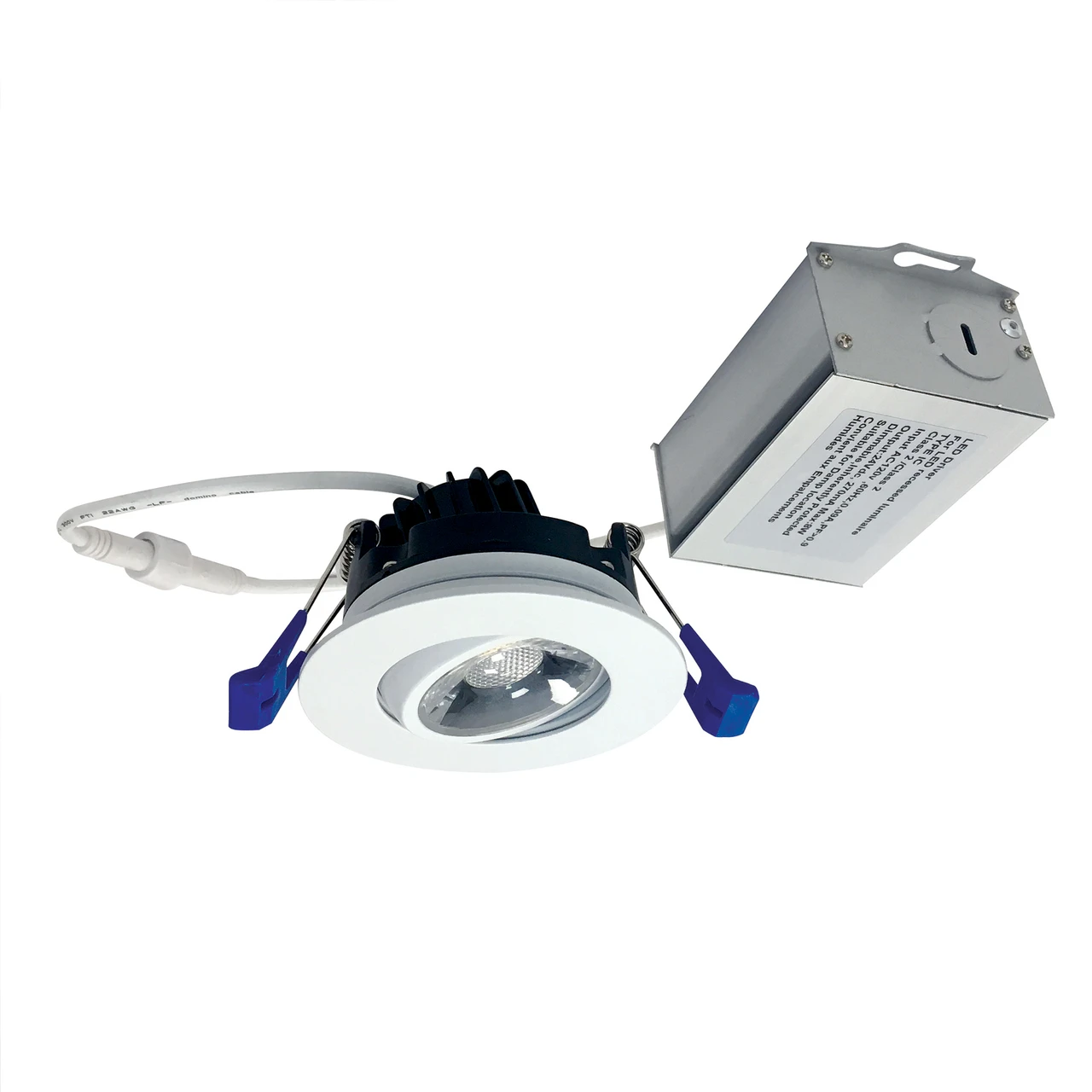

NM2-2RG6027MPW 2" M2 Round LED Adjustable Gimbal 600LM / 8W 2700K 120V Matte from Nora Lighting is a 2" M2 round LED recessed gimbal designed for insulated or non-insulated applications. This matte powder white adjustable gimbal downlight delivers 600lm / 8W performance, 2700K color temperature, 90+ CRI, 120V input, and Triac / ELV dimming in a no-housing-required IC Air-Tight rated design.
Product Summary
- Fixture Type: 2" M2 Round LED Recessed Gimbal
- Lumens / Wattage: 600lm / 8W
- Color Temperature: 2700K
- Input Voltage: 120V
- CRI: 90+ CRI
- Finish: Matte Powder White
- Free shipping on orders over $250
Product Benefits
- No housing is required, making installation convenient for remodel or new construction applications.
- 15° adjustable gimbal trim provides directional lighting control in a compact 2" aperture.
- IC Air-Tight rated construction supports insulated ceiling applications and restricts airflow from room into ceiling plenum.
- 90+ CRI output delivers high color rendering for general recessed lighting applications.
Key Features
- 15° Adjustable: Gimbal trim is adjustable up to 15°.
- No housing required: IC Air-Tight rated luminaire for can-less recessed installation.
- 600lm LED package: 600lm / 8W performance for compact recessed lighting.
- 2700K light output: Warm 2700K color temperature with 90+ CRI.
- Triac / ELV dimming: Compatible with Triac or ELV dimming.
- Quick disconnect: Quick disconnect allows for extended lengths.
- Square trim option: Optional field changeable square trim is available.
- Matte powder white finish: Die-cast aluminum trim in matte powder white.
Specifications
Technical Specifications
| Catalog Number | NM2-2RG6027MPW |
| Product Series | NM2-2RG |
| Trim Type | NM2-2RG = 2" Round Gimbal |
| Lumens / Wattage | 60 = 600lm / 8W |
| Color Temperature | 27 = 2700K |
| Finish | MPW = Matte Powder White |
| Input Voltage | 120V |
| Input Power | 8W |
| Dimming | Triac / ELV |
| Operating Temp. | 40°C max. |
Performance Specifications
| Lumens | 600lm |
| Wattage | 8W |
| Color Temperature | 2700K |
| Color Rendering Index | 90+ CRI |
| Beam Spread | 40° Flood |
| Lifetime | 60,000 hours @ L70 |
| Photometric Lumens | 598lm |
| Photometric Wattage | 7.7W |
| Photometric Efficacy | 77lpw |
| Photometric CCT / CRI | 2700K / 90 CRI |
Physical Specifications
| Trim Construction | Die-cast aluminum trims |
| Adjustability | Gimbal trim is adjustable up to 15° |
| Cut Out | 2-3/4" |
| Trim Diameter | 3-3/16" |
| Luminaire Height | 2" |
| Junction Box Width | 4" |
| Junction Box Height | 2-1/2" |
| Ceiling Thickness | Accommodates ceiling thickness up to 3/4" |
| Mounting | No housing is required, two tensions steel spring clips secure luminaire to ceiling |
Compliance & Safety
| IC Rated | IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required. |
| Air-Tight | Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM in accordance with ASTM-283 Air-Tight requirements. |
| cETLus Listed | cETLus Listed for Wet Locations |
| ENERGY STAR | ENERGY STAR certified |
| FCC | FCC compliant |
| California Title 24 | Certified to the high efficacy requirements of California Title 24 JA8-2022 |
| Warranty | 5-Year Limited Warranty |
Applications
- Insulated or non-insulated recessed lighting applications.
- Remodel or new construction recessed downlight installations.
- Wet location recessed lighting applications.
- Can-less recessed lighting installations where no housing is required.
- Directional accent or general lighting requiring a 15° adjustable gimbal.
Installation Tips
- No housing is required for installation.
- Two tensions steel spring clips secure luminaire to ceiling.
- Junction box is prewired and includes quick connect to LED fixtures for ease of installation.
- Junction box includes two 1/2" trade size knockouts and snap on cover with 7" quick connect wire.
- Luminaire includes 5" quick connect wire.
- Use quick connect extension linkable cables to extend the length between luminaire and driver enclosure.
- Maximum length between luminaire and driver is 40'.
- New construction frame-in kits are available for can-less recessed downlighting installations.
Frequently Asked Questions
What is the lumen output of the NM2-2RG6027MPW?
The NM2-2RG6027MPW is a 600lm / 8W LED recessed gimbal.
What color temperature does this model provide?
This model provides 2700K color temperature.
What finish does the NM2-2RG6027MPW have?
The finish is Matte Powder White.
Is this fixture adjustable?
Yes. The gimbal trim is adjustable up to 15°.
Does this recessed gimbal require a housing?
No. No housing is required, and two tensions steel spring clips secure the luminaire to the ceiling.
Is this fixture IC rated?
Yes. IC rated luminaires are rated for direct contact with insulation, excluding spray foam insulation, and no minimum clearance is required.
What dimming types are supported?
The NM2-2RG series supports Triac / ELV dimming.
What beam spread does this fixture provide?
The beam spread is 40° Flood.
What is the cut out size?
The cut out is 2-3/4".
Can the round trim be converted to a square trim?
Yes. Optional NM2-2SGT square trim is available for NM2-2RG in Matte Black or Matte Powder White.
