Product Description

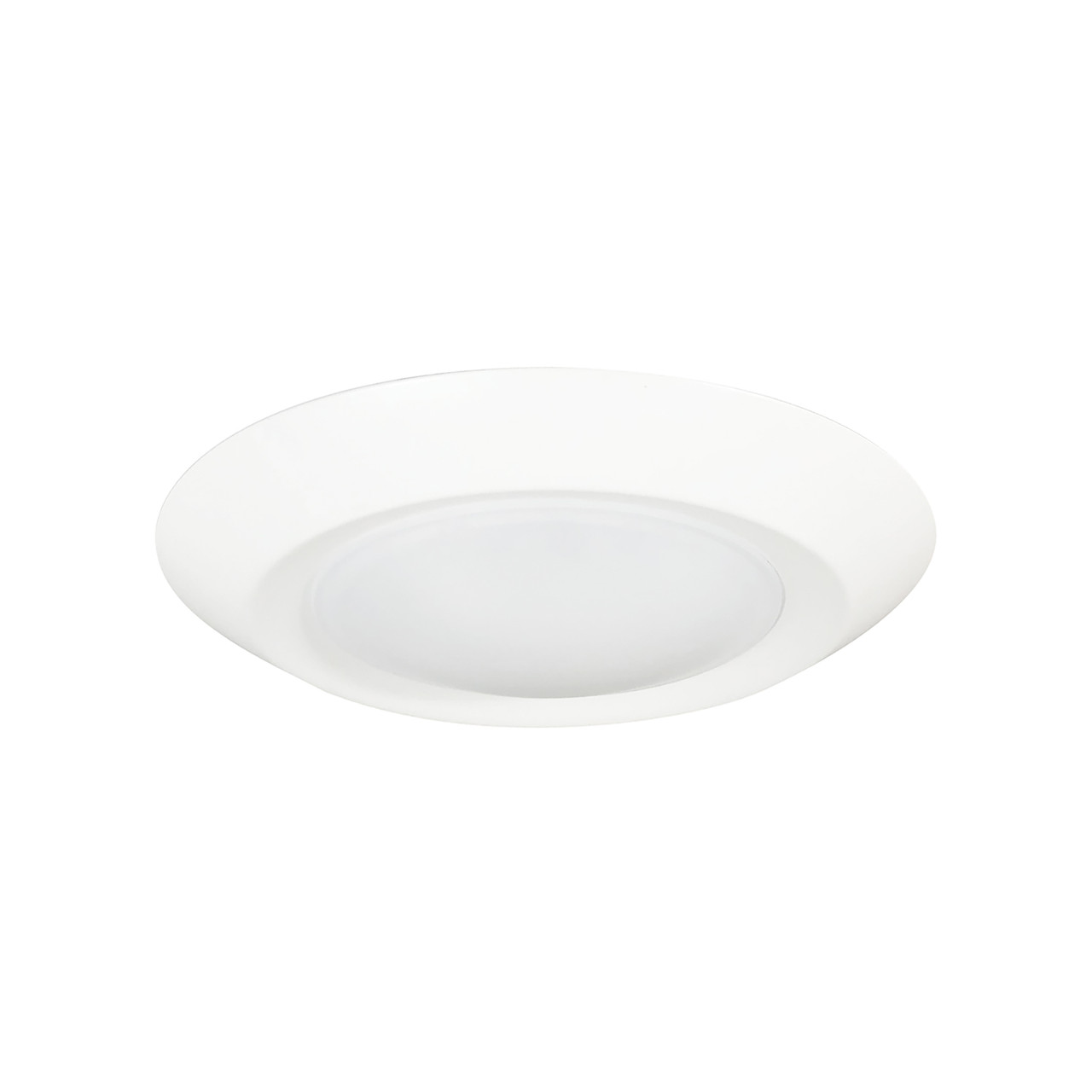

NLOPAC-R6REGT2430W 6" Regressed AC Opal LED Surface Mount by Nora Lighting delivers the sleek aesthetic of recessed lighting with the convenience of a surface-mount fixture. Designed for modern applications, this 950-lumen, 13W unit provides high efficacy, wide flood lighting and energy compliance for both residential and commercial spaces.
Brand: Nora Lighting
Model: NLOPAC-R6REGT2430W
Lumens: 881lm
Wattage: 13W
Color Temperature: 3000K
Color Rendering Index: 90+ CRI
Voltage: 120V
Listings: ENERGY STAR, cETLus, Title 24 JA8-2022, FCC Compliant
Application: Surface mount over junction boxes or retrofit to recessed housings
Free shipping on orders over $250
Benefits of the NLOPAC-R6REGT2430W Surface Mount
- Creates a recessed appearance with a regressed LED source
- Direct-to-AC LED technology eliminates the need for a separate driver
- ENERGY STAR and Title 24 JA8-2022 certified for energy efficiency
- Mounts directly to 3" or 4" junction boxes, or retrofits into recessed housings with optional kit
Key Features
- High Output: 881 lumens at 13W for bright, efficient lighting
- 90+ CRI: Exceptional color accuracy for residential and retail applications
- Wide Flood Beam: 114° beam spread ensures even illumination
- IC Rated: Safe for use in direct contact with insulation when mounted to rated junction boxes
- Surface or Retrofit Mounting: Optional torsion spring kit supports installation in recessed cans
Specifications
Technical Specs
| Input Voltage | 120V, 50/60Hz |
| Wattage | 13W |
| Lumens | 881lm |
| Color Temperature | 3000K |
| CRI | 90+ |
| Beam Spread | 114° Wide Flood |
| Dimming | Triac / ELV |
| Operating Temp | -20°C to 40°C |
Physical Specs
| Diameter | 7-3/8" |
| Height | 1" |
| Mounting | 3" or 4" J-Box; 5"/6" recessed cans with optional kit |
Certifications & Compliance
| Listings | cETLus for Wet Locations, ENERGY STAR, FCC |
| Title 24 | JA8-2022 Compliant |
| Warranty | 5-Year Limited Warranty |
Ideal Applications
- Ceiling lighting in residential kitchens, baths, and hallways
- Commercial corridors and lobbies
- Closet lighting (NEC 410.16 compliant)
- Retrofit projects replacing 5” or 6” recessed trims
Installation Tips
- Install directly over 3" or 4" junction boxes, or use optional kit for recessed cans
- Ensure junction box is IC-rated for direct insulation contact
- Secure with standard mounting screws or torsion springs (kit required)
- Supports dimming with compatible Triac/ELV dimmers
Frequently Asked Questions
Q: Can this be installed without a housing?
A: Yes, it mounts directly to 3" or 4" junction boxes for housing-free installation.
Q: Is this fixture suitable for wet locations?
A: Yes, it is cETLus listed for wet locations and suitable for bathrooms or covered outdoor spaces.
Q: Can I use this with a dimmer switch?
A: Absolutely. It supports Triac and ELV dimming systems.
Q: What is the expected light output and efficiency?
A: The 3000K model outputs 881 lumens at 13W, offering about 67 lumens per watt efficacy:contentReference[oaicite:0]{index=0}.
Q: Does this product meet Title 24 requirements?
A: Yes, it is certified under JA8-2022 for high efficacy lighting in California Title 24 applications.
Q: Can I retrofit this into an existing recessed can?
A: Yes, with the NLOPAC-56RECKIT-2 torsion spring kit (sold separately).
