Product Description

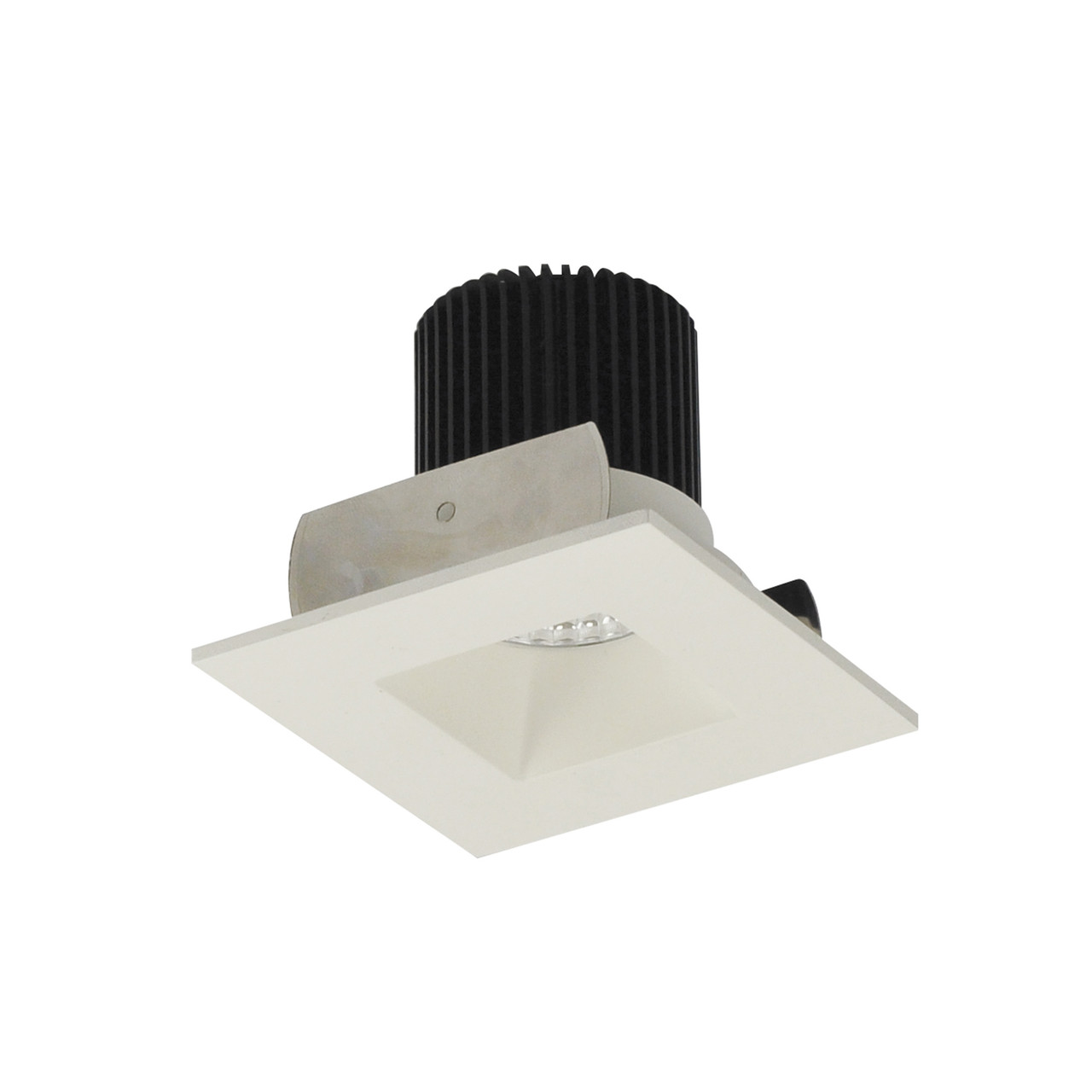

The NIOB-2SNDSQ27XMPW/10 is a 2" Iolite LED square reflector with a square aperture from Nora Lighting. This non-adjustable downlight delivers 1000 lumens at 14W with a warm 2700K color temperature and 90+ CRI. Designed for use with dedicated Iolite new construction or remodel housings, the deep regressed reflector helps optimize visual cut-off for a clean, architectural appearance.
Product Summary
- Manufacturer: Nora Lighting
- Series: Iolite
- Catalog Number: NIOB-2SNDSQ27XMPW/10
- Product Type: 2" Square Reflector with Square Aperture
- Output: 1000LM
- Wattage: 14W
- Color Temperature: 2700K
- CRI: 90+
- Finish: Matte Powder White Reflector / Matte Powder White Flange
- Aperture: Square
- Adjustability: Non-Adjustable
- Location Rating: Wet Location
Benefits
- Clean architectural appearance: Square reflector with square aperture provides a modern recessed lighting look.
- Comfortable visual cut-off: Deep regressed cone reflector helps reduce glare and improve visual comfort.
- High-quality illumination: 90+ CRI provides accurate color rendering for residential and commercial spaces.
- Efficient output: Produces 1000 lumens while consuming only 14 watts.
- Flexible beam control: Includes field-changeable spot, narrow flood, and flood optics.
- Long-lasting performance: Rated for 50,000 hours at L70.
Key Features
- 2" Iolite square reflector with square aperture
- Non-adjustable recessed LED downlight
- 1000LM / 14W LED package
- 2700K warm white color temperature
- 90+ CRI
- Matte Powder White reflector and flange
- Deep regressed cone reflector for optimized visual cut-off
- Heat-dissipating die-cast aluminum construction
- Friction blade mounting system
- Field-changeable optics included
- Compatible with dedicated Nora Iolite housings
- cULus Listed for Wet Locations
- ENERGY STAR certified
- California Title 24 JA8-2022 compliant
- RoHS compliant
- 5-year limited warranty
Specifications
| Catalog Number | NIOB-2SNDSQ27XMPW/10 |
| Product Type | 2" Iolite Square Reflector with Square Aperture |
| Source | LED |
| Lumens | 1000LM |
| Wattage | 14W |
| Color Temperature | 2700K |
| Color Rendering Index | 90+ CRI |
| Finish | Matte Powder White Reflector / Matte Powder White Flange |
| Aperture Shape | Square |
| Adjustability | Non-Adjustable |
| Construction | Heat-dissipating die-cast aluminum trim with aluminum die-cast LED heat sink |
| Mounting | Friction blades for secure housing installation |
| Operating Temperature | 0°C to 40°C |
| Lifetime | 50,000 hours @ L70 |
| Dimming | Specified by housing |
| Location Rating | Wet Location |
| Warranty | 5-Year Limited Warranty |
Optics
| Included Optics | Spot, Narrow Flood, and Flood |
| Field Changeable | Yes |
| Optional Frosted Filter-Optics | NIO-REFL38FR 60° Optic, NIO-REFL60FR 73° Optic |
| Optional Premium TIR Optics | NIO-REFLTIR15 22° Optic, NIO-REFLTIR25 26° Optic |
Dimensions

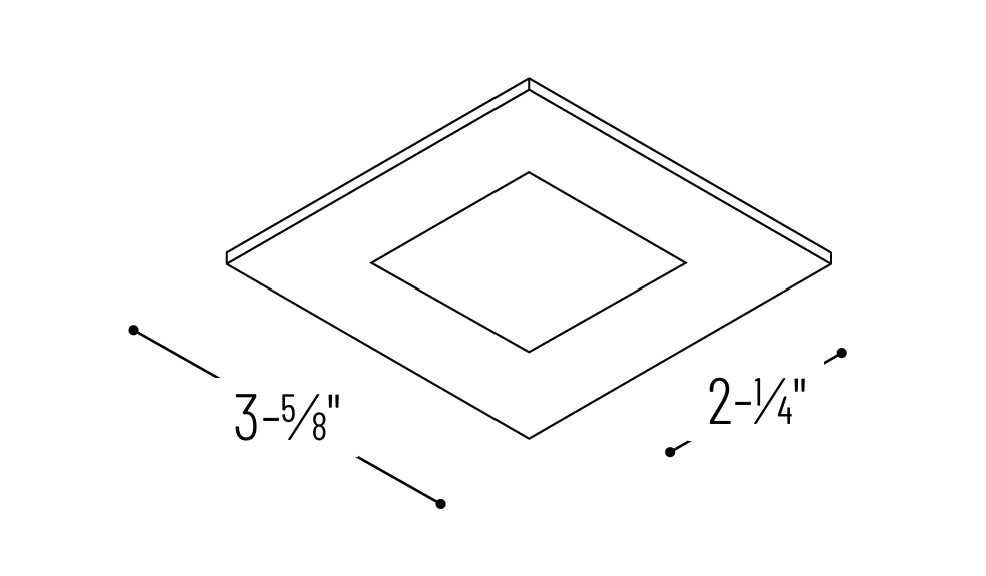

| Trim Dimensions | 3-5/8" x 2-1/4" |
Compatible Housings
| Catalog Number | Description | Lumens / Wattage |
|---|---|---|
| NHIOICD-28 | ICAT New Construction | 800-1000LM / 14W |
| NHIOICDCP-28 | Chicago Plenum | 800-1000LM / 14W |
| NHRIOIC-28 | ICAT Remodel | 800-1000LM / 14W |
Applications
- Residential recessed lighting
- Commercial downlighting
- Hospitality spaces
- Retail environments
- Corridors and circulation areas
- Offices and conference rooms
- General architectural lighting
- Wet-location ceiling applications where compatible housing is used
Installation Tips
- Requires a dedicated Nora Iolite housing for installation.
- For this 1000LM / 14W configuration, use a compatible 800-1000LM Iolite housing.
- Compatible housings include NHIOICD-28, NHIOICDCP-28, and NHRIOIC-28.
- Dimming performance is determined by the selected housing.
- Optics can be changed in the field by removing the LED module from the die-cast reflector.
- The luminaire can accommodate one hex louver and one collar accessory without an accessory holder.
- Flush mount mud ring NIO-FMMR-2S is available for compatible new construction housings only.
FAQ
Is the NIOB-2SNDSQ27XMPW/10 adjustable?
No. This model is a non-adjustable square reflector with a square aperture.
What is the lumen output of this fixture?
This model delivers 1000 lumens at 14 watts.
What color temperature is this model?
This fixture is 2700K warm white.
Is this fixture wet location rated?
Yes. The fixture is cULus Listed for Wet Locations.
Does this fixture require a housing?
Yes. This fixture requires a dedicated Nora Iolite new construction or remodel housing.
Which housings are compatible with this 1000LM model?
Compatible housings include NHIOICD-28, NHIOICDCP-28, and NHRIOIC-28.
Are optics included?
Yes. Spot, narrow flood, and flood optics are included and can be changed in the field.
