Product Description

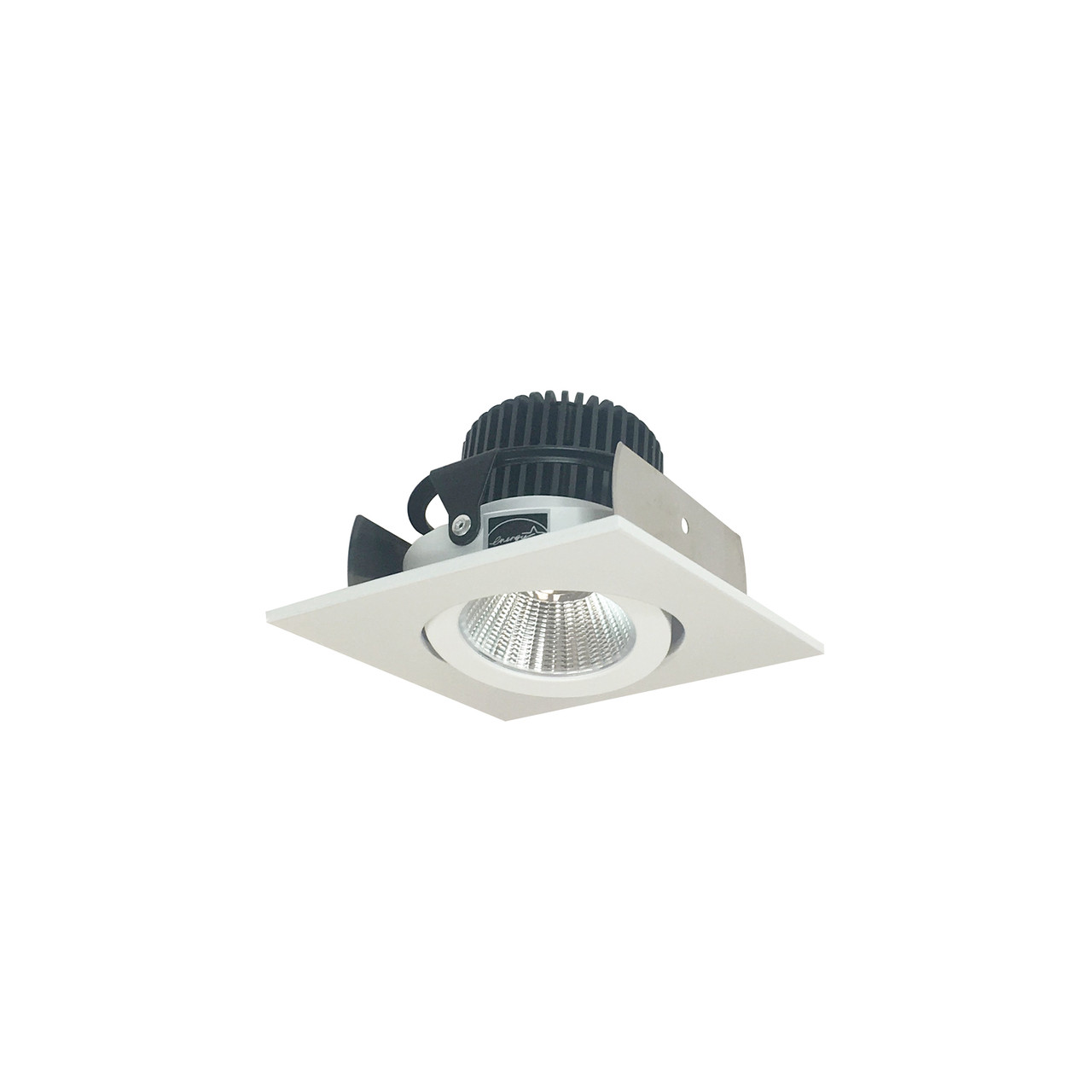

The NIOB-2SG27XMPW/10 is a 2" Iolite LED square adjustable gimbal from Nora Lighting, delivering 1000 lumens at 14W with a warm 2700K color temperature and Matte Powder White finish. Designed for use with compatible Iolite new construction or remodel housings, this die-cast adjustable surface gimbal allows precise aiming for accent, task, and general lighting applications.
Product Summary
- Manufacturer: Nora Lighting
- Series: Iolite
- Catalog Number: NIOB-2SG27XMPW/10
- Product Type: 2" Square Adjustable LED Gimbal
- Lumens: 1000LM
- Wattage: 14W
- Color Temperature: 2700K
- CRI: 90+
- Finish: Matte Powder White
- Location Rating: Damp Location
Benefits
- Adjustable beam direction: Gimbal design allows the light source to be aimed where illumination is needed.
- High-quality light output: 90+ CRI provides improved color rendering for residential and commercial spaces.
- Efficient performance: Delivers 1000 lumens using only 14 watts.
- Field-changeable optics: Includes 25°, 38°, and 60° optics for flexible beam control.
- Long service life: Rated for 50,000 hours at L70.
Key Features
- 2" Iolite square adjustable surface gimbal
- Die-cast aluminum construction
- Matte Powder White finish
- 2700K warm white LED color temperature
- 1000LM / 14W output
- 90+ CRI
- 60° flood optic installed
- 38° narrow flood and 25° spot optics included
- New construction adjustability: 30°
- Remodel adjustability: 15°
- cULus Listed for Damp Locations
- ENERGY STAR certified
- California Title 24 JA8-2022 compliant
- RoHS compliant
- 5-year limited warranty
Specifications
| Catalog Number | NIOB-2SG27XMPW/10 |
| Product Type | 2" Iolite Square Adjustable Gimbal |
| Source | LED |
| Lumens | 1000LM |
| Wattage | 14W |
| Color Temperature | 2700K |
| CRI | 90+ |
| Finish | Matte Powder White |
| Construction | Heat-dissipating die-cast aluminum trim with threaded aluminum LED heat sink |
| Mounting | Friction blades for secure housing installation |
| Operating Temperature | 0°C to 40°C ambient temperature |
| Lifetime | 50,000 hours @ L70 |
| Dimming | Specified by housing |
| Location Rating | Damp Location |
| Warranty | 5-Year Limited Warranty |
Optics
| Installed Optic | 60° Flood |
| Included Optics | 25° Spot, 38° Narrow Flood, 60° Flood |
| Field Changeable | Yes |
Dimensions & Adjustability

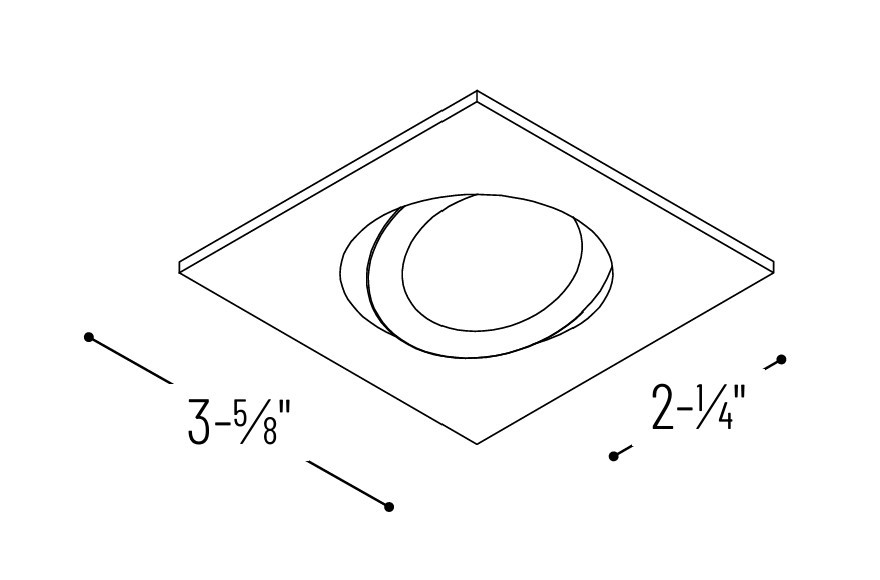

| Trim Size | 3-5/8" x 2-1/4" |
| New Construction Adjustability | 30° |
| Remodel Adjustability | 15° |
Compatible Housings
| Catalog Number | Description | Lumens / Wattage |
|---|---|---|
| NHIOICD-28 | ICAT New Construction | 800-1000LM / 14W |
| NHIOICDCP-28 | Chicago Plenum | 800-1000LM / 14W |
| NHRIOIC-28 | ICAT Remodel | 800-1000LM / 14W |
Applications
- Residential recessed lighting
- Commercial accent lighting
- Hospitality spaces
- Retail displays
- Artwork and feature wall illumination
- Task lighting
- General downlighting where adjustable aiming is required
Installation Tips
- Requires a compatible 2" Iolite dedicated housing.
- Use NHIOICD-28 or NHIOICDCP-28 for new construction applications.
- Use NHRIOIC-28 for remodel applications.
- Confirm dimming compatibility based on the selected housing.
- Field-changeable optics can be swapped by removing the LED module from the die-cast reflector.
- Optional accessories such as hex louver, translucent collars, opaque snoots, and flush mount mud rings are available.
FAQ
Does this fixture include optics?
Yes. The fixture includes 25°, 38°, and 60° optics, with the 60° flood optic installed.
Is this fixture dimmable?
Dimming is determined by the compatible Iolite housing selected for the installation.
Can this be used in damp locations?
Yes. The fixture is cULus Listed for Damp Locations.
What housing is required?
This fixture requires a compatible 2" Iolite housing, such as NHIOICD-28, NHIOICDCP-28, or NHRIOIC-28.
Is this the Comfort Dim version?
No. This model is 2700K and 1000LM / 14W. Comfort Dim is available only in 800LM versions.
