Product Description

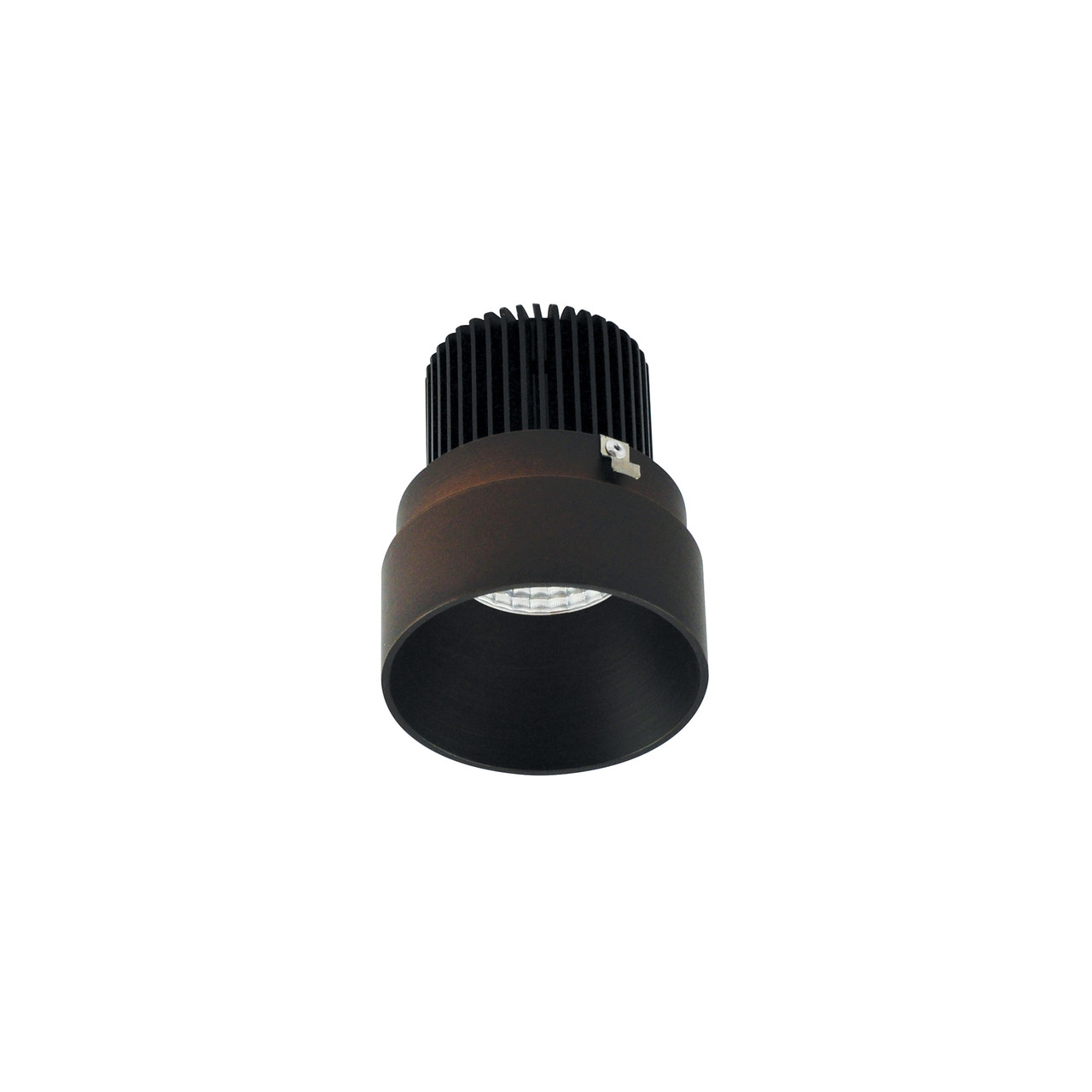

NIO-2RTLNDC30XBZ/10 2" Iolite LED Round Trimless Downlight 1000LM / 14W 3000K Bronze from Nora Lighting delivers a clean, modern trimless appearance with high-performance LED illumination for luxury residential and commercial spaces. Designed with a deep regressed reflector for enhanced visual comfort, this 2" Iolite trimless downlight provides 1000 lumens of warm 3000K light output while maintaining exceptional energy efficiency and 90+ CRI color rendering.
Product Summary
Brand: Nora Lighting
Model: NIO-2RTLNDC30XBZ/10
Product Type: 2" Round Trimless LED Downlight
Lumen Output: 1000lm
Wattage: 14W
Color Temperature: 3000K
Finish: Bronze
CRI: 90+ CRI
Listings: cULus Wet Location, ENERGY STAR, Title 24 JA8-2022, RoHS
Warranty: 5-Year Limited Warranty
Free shipping on orders over $250
Product Benefits
- Trimless knife-edge design creates a seamless architectural ceiling appearance for upscale residential and commercial interiors.
- Deep regressed reflector improves glare control and visual comfort while delivering powerful 1000 lumen illumination.
- Includes field-changeable optics with spot, narrow flood, and flood beam distributions for versatile lighting layouts.
- Wet location listing and ENERGY STAR certification make it suitable for bathrooms, kitchens, hospitality spaces, and covered outdoor applications.
Key Features
- Trimless Design: No exposed flange or extension beyond ceiling plane.
- High Performance LED: 1000lm output using only 14W.
- 3000K Color Temperature: Warm white illumination ideal for hospitality and residential applications.
- 90+ CRI: Exceptional color rendering for enhanced visual quality.
- Field Changeable Optics: Spot, narrow flood, and flood optics included.
- Die-Cast Aluminum Construction: Efficient thermal management and durability.
- Wet Location Rated: Suitable for damp and wet environments.
- ENERGY STAR Certified: Energy-efficient LED performance.
Specifications
Technical Specifications
| Model Number | NIO-2RTLNDC30XBZ/10 |
| Light Source | LED |
| Lumen Output | 1000lm |
| Wattage | 14W |
| Color Temperature | 3000K |
| CRI | 90+ CRI |
| Lifetime | 50,000 hours @ L70 |
| Dimming | Specified by housing |
Physical Specifications
| Trim Type | Round Trimless |
| Finish | Bronze |
| Construction | Die-cast aluminum |
| Mounting | Friction blade mounting to trimless mud ring |
| Ceiling Appearance | Knife-edge trimless design |
Performance & Compliance
| Location Rating | Wet Location Listed |
| Energy Certification | ENERGY STAR Certified |
| Compliance | California Title 24 JA8-2022, RoHS Compliant |
| Warranty | 5-Year Limited Warranty |
Applications
- Luxury residential living rooms and kitchens
- Hospitality and boutique hotel lighting
- Modern retail and commercial environments
- Bathrooms and wet location installations
- Architectural new construction projects
- Minimalist ceiling lighting designs
Installation Tips
- Requires compatible Nora Iolite new construction housing for proper installation.
- A trimless mud ring is required for every trimless downlight installation.
- Professional drywall finishing is recommended to achieve seamless trimless integration.
- Use included field-changeable optics to customize beam spread after installation.
- Verify dimmer compatibility with selected housing before installation.
- Use suction cup accessory for easier reflector removal during maintenance.
FAQ
Does this downlight require a housing?
Yes. The NIO-2RTLNDC requires a compatible Nora Iolite new construction housing such as NHIOICD-28 or NHIOICDCP-28.
Is the trimless mud ring included?
No. The trimless mud ring must be ordered separately for each downlight installation.
Can the beam angle be changed?
Yes. Spot, narrow flood, and flood optics are included and can be changed in the field.
Is this fixture suitable for wet locations?
Yes. The fixture is cULus listed for wet locations.
What is the expected LED lifespan?
The integrated LED system is rated for 50,000 hours at L70 performance.
Does this model support dimming?
Yes. Dimming capability is determined by the compatible housing and driver configuration.
What finish does this model use?
This configuration features a bronze finish for a sophisticated architectural appearance.
What ceiling appearance does the trimless design create?
The trimless knife-edge design eliminates visible trim flanges for a clean, seamless ceiling aesthetic.
