Product Description

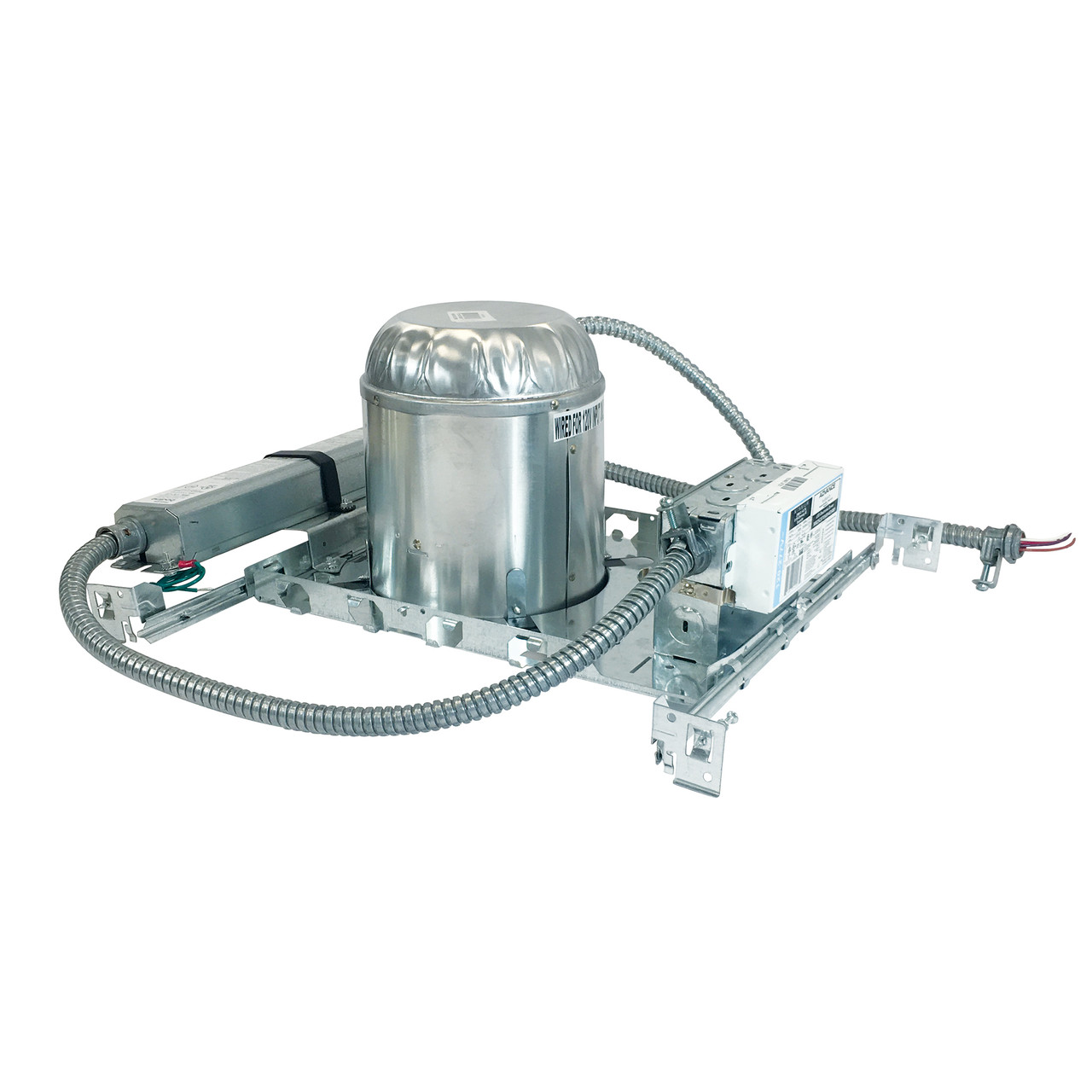

NHCB-615LE6/EM 6" Cobalt High Lumen Dedicated NON-IC New Construction Housing is a recessed housing. Electrical: 120-277V input; 0-10V dimming down to 1%. Specs verified from the NORA Lighting specification sheet.
Key Specs
- Type: recessed housing
Why Buy Here?
- Free shipping on orders over $250
- Fast handling & commercial invoicing
- Expert support for spec substitutions
Product Benefits
- Dedicated new construction housing for use where insulation can be kept 3” away from housing.
- The housing is dedicated and labeled for use with Cobalt High Lumens series.
Key Features
- Plaster Frame: High quality 0.040 aluminum die cut one piece frame.
- Housing: 0.040 aluminum housing adjusts to a ceiling thickness from 1/2" to 1-1/4". Spring brackets accept torsion wing trim springs.
- Air Flow Restriction: Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
- Bar Hangers: Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on frame. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L” Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allow for easy installation in a suspended ceiling.
- Junction Box: Prewired 25 cubic inch 0.064” thick galvanized steel, with seven 1/2” knockouts, four Romex ® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out).
Specifications
Performance Specifications
| Dimming | 0-10V dimming down to 1% |
| Operating Temperature | 0˚C to 30˚C |
Electrical Specifications
| Input Voltage | 120-277V |
Compliance & Safety
| Listings | cULus Listed for Wet Location (only w/designated reflectors) |
| Environment | Wet Locations |
| Warranty | 5-Year |
Applications
- recessed housing
Frequently Asked Questions
What input voltage does it require?
120-277V.
Is it dimmable?
Yes — 0-10V dimming down to 1%.
Where can it be installed?
Wet Locations.
What warranty does it carry?
5-Year.
