Product Description

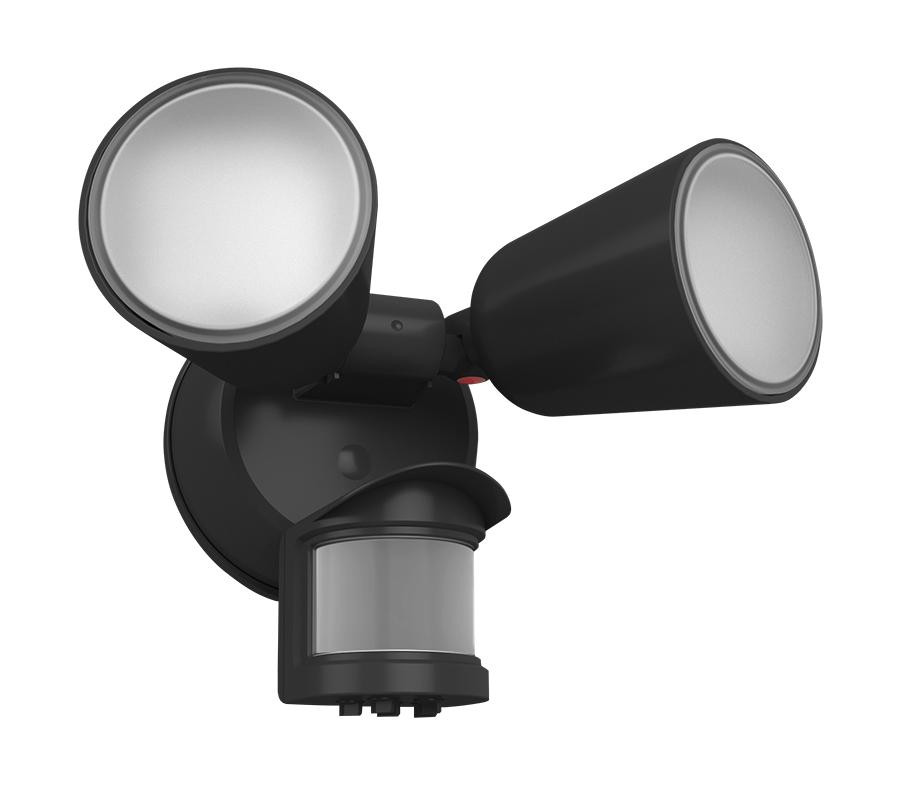

LU160 Luminator LED Floodlight by RAB Lighting is a compact, high-performance outdoor security fixture designed for reliable illumination with built-in motion sensing. Featuring a 20W LED engine, field-adjustable 3000K–5000K CCT, and a durable bronze finish, the LU160 delivers powerful, efficient light output for residential and light commercial exterior applications.
Quick Specs
- Wattage: 20W
- Voltage: 120V
- Dimming: 0-10V
- CCT: 3000K–5000K tunable
- Lumen Output: 2023–2096 lm
- Finish: Bronze
Shipping
Free shipping on orders over $250
DLC listed and suitable for wet locations with long-life LED performance.
Product Benefits
- Field-adjustable flexibility: Select between 3000K, 4000K, or 5000K to match the application.
- Integrated motion sensor: Enhances security while reducing energy usage.
- High efficiency output: Delivers over 2000 lumens with up to 108.6 lm/W.
- Outdoor durability: Wet-location rated with IP65 protection.
Key Features
- 20W LED floodlight
- 3000K–5000K tunable white via onboard switch
- 0-10V dimming capability
- Integrated PIR motion sensor with adjustable range and time delay
- Bronze finish polycarbonate housing
- 100,000-hour LED lifespan (L70)
Specifications
Technical
| Input Voltage | 120V |
| Input Power | 19.3–19.4W |
| Dimming | 0-10V |
Performance
| Lumen Output | 2023–2096 lm |
| CRI | 81–83 CRI |
| IP Rating | IP65 |
Compliance
| Listings | UL Listed, DLC Listed |
| Location Rating | Suitable for wet locations |
Applications
- Residential security lighting
- Building entrances and walkways
- Garages and driveways
- Light commercial perimeter lighting
Installation Tips
- Mount between 3–10 ft for optimal motion detection.
- Aim sensor so motion crosses the detection zone for best performance.
- Do not connect to dimmer switches or electronic timers.
- Seal around canopy with exterior-grade silicone for wet locations.
FAQ
Is the color temperature adjustable?
Yes. The LU160 includes a field-adjustable switch allowing selection from 3000K to 5000K.
Does this fixture include a motion sensor?
Yes. It features an integrated PIR motion sensor with adjustable sensitivity, time delay, and daylight threshold.
Is the LU160 dimmable?
Yes. It supports 0-10V dimming and includes onboard brightness adjustment.
Is this fixture suitable for outdoor use?
Yes. The LU160 is IP65 rated and suitable for wet locations.
What is the expected lifespan?
The integrated LED has a rated lifespan of 100,000 hours (L70).
Is the LED replaceable?
No. The LED is integrated and non-replaceable.
