Product Description

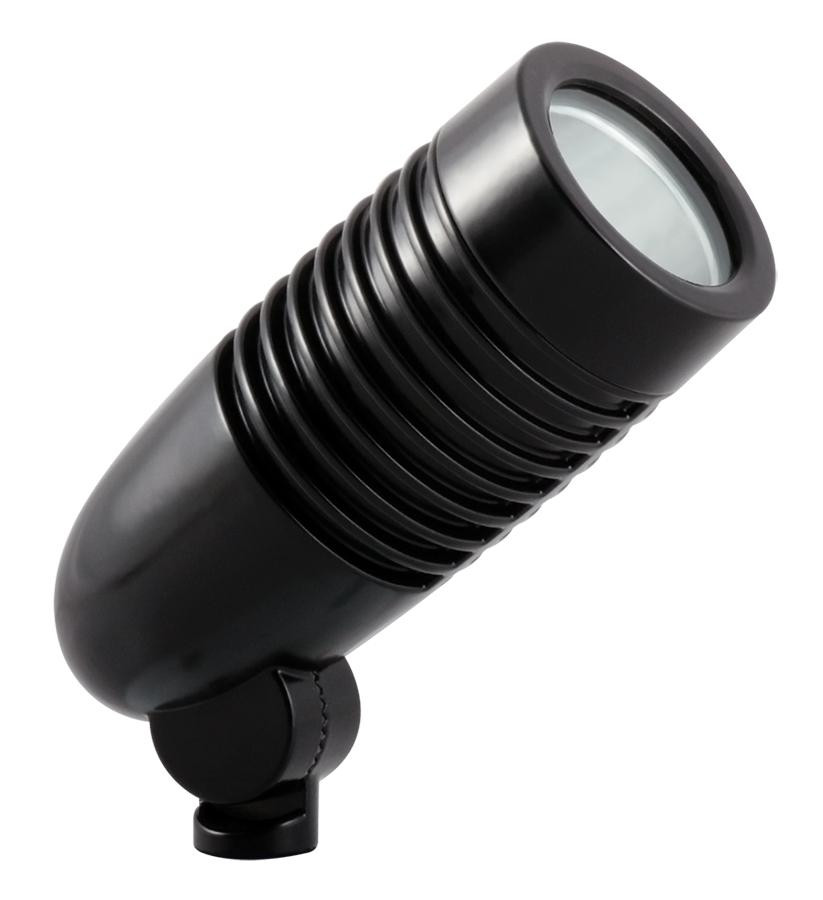

LFLED8B Landscape 588 Lumens LFLOOD 8W Cool LED Landscape Flood Black is a compact RAB LED landscape floodlight designed to deliver 588 lm of cool illumination in a durable black housing. Its microprismatic diffuser produces smooth light distribution with low glare, while the adjustable mounting arm supports precise aiming for landscape, accent, and architectural lighting applications.
Product Summary
588 lm LED landscape floodlight with an 8W LED, 4800K cool color temperature, 81 CRI, black finish, 4H x 4V NEMA beam spread, and wet-location suitability.
Free shipping on orders over $250
Product Benefits
- Produces 588 lm from a compact landscape floodlight designed to replace a 50W MR16 floodlight.
- Microprismatic diffuser provides smooth light distribution with low glare for landscape and architectural illumination.
- Suitable for wet locations and ground mounting for dependable outdoor installation.
- Optional spot and narrow spot reflector kits allow the beam pattern to be adapted for accent lighting and building grazing.
Key Features
- LED Wattage: 8W
- Light Output: 588 lm
- Color Temperature: 4800K (Cool)
- Color Accuracy: 81 CRI
- Beam Spread: 4H x 4V NEMA
- Long LED Life: 100,000-hour L70 lifespan
- Housing: Precision die-cast aluminum lens frame and mounting arm
- Lens: Microprismatic diffuser for smooth distribution and low glare
- Finish: Black polyester powder coating
- Cold Weather Starting: Minimum starting temperature of -40°C (-40°F)
- Outdoor Rated: Suitable for wet locations and ground mounting
Specifications
Technical Specifications
| LED Wattage | 8W |
| Input Watts | 7.2W |
| Driver | Constant Current, Class 2, 50/60 Hz, 100-240VAC: 0.20Amps |
| 120V Current | 0.14A |
| 208V Current | 0.09A |
| 240V Current | 0.08A |
Performance Specifications
| Lumens | 588 lm |
| Efficacy | 81.7 lm/W |
| Color Temperature | 4800K (Cool) |
| Color Accuracy | 81 CRI |
| L70 Lifespan | 100,000 Hours |
| Beam Spread | 4H x 4V NEMA |
| Color Consistency | 4-step MacAdam Ellipse binning |
| Color Stability | LED color temperature is warrantied to shift no more than 200K over a 5-year period |
Physical Specifications
| Length | 6" |
| Diameter | 2 3/8" |
| Weight | 1.6 lbs |
| Finish | Black |
| Housing | Precision die-cast aluminum, lens frame and mounting arm |
| Lens | Microprismatic diffuser |
| Gaskets | High-temperature silicone |
| Minimum Starting Temperature | -40°C (-40°F) |
| Maximum Ambient Temperature | 40°C (104°F) |
Compliance & Safety
| UL Listed | Suitable for wet locations. Suitable for ground mounting. |
| IESNA LM-79 & LM-80 Testing | RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80 |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Warranty | 5-year warranty covering defects in materials and workmanship, including light output, color stability, driver performance and fixture finish, subject to RAB warranty terms and conditions |
Applications
- Landscape floodlighting in wet outdoor locations.
- Ground-mounted landscape lighting using a compatible Mighty Post.
- Wall-mounted outdoor floodlighting using a weatherproof junction box and cover plate.
- Accent lighting and building grazing when used with the appropriate optional spot or narrow spot reflector kit.
Installation Tips
- Make certain power is OFF before installing or maintaining the fixture.
- The fixture must be wired in accordance with the National Electrical Code and all applicable local codes, with proper grounding required for safety.
- This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
- For wall mounting, install to a weatherproof junction box and cover plate. Apply weatherproof silicone sealant around the edge of the wall cover plate or surface box to maintain a weatherproof seal.
- Seal the mounting arm thread using Teflon® tape or silicone sealant.
- For ground mounting, the fixture can be installed on a Mighty Post, RAB Cat# MP19.
- Aim the floodlight in the desired direction and tighten the locknut and arm screw.
- Suitable for mounting within 1.2m (4ft) of the ground.
- Do not clean or maintain the fixture while energized. Allow the fixture to cool before touching it.
Frequently Asked Questions
How many lumens does the LFLED8B produce?
The LFLED8B produces 588 lm with an efficacy of 81.7 lm/W.
What color temperature is the LFLED8B?
The LFLED8B has a 4800K cool LED color temperature.
Is the LFLED8B suitable for wet locations?
Yes. The fixture is UL Listed for wet locations and is suitable for ground mounting.
Can the LFLED8B be wall mounted?
Yes. The installation instructions provide a wall-mounting method using a weatherproof junction box and cover plate.
Can the LFLED8B be ground mounted?
Yes. It can be mounted to a Mighty Post, RAB Cat# MP19, using the installation method provided by RAB.
What beam spread does the LFLED8B provide?
The standard fixture provides a 4H x 4V NEMA beam spread.
Are alternate beam patterns available?
Yes. The LNSLFLED8 reflector, door, and lens kit provides a 15° spot configuration, while the LSLFLED8 kit provides a 20° spot configuration.
What is the expected LED lifespan?
The LFLED8B has a 100,000-hour L70 LED lifespan.
