Product Description

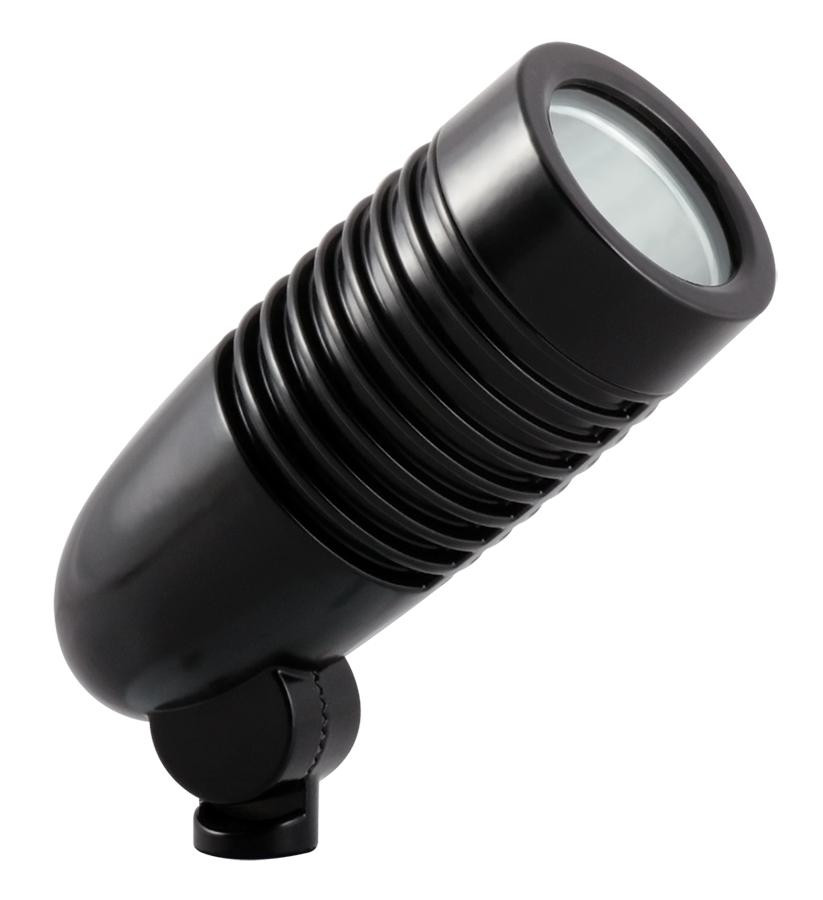

LFLED5B Landscape 299 Lumens LFLOOD 5W Cool LED Landscape Flood Black from RAB Lighting is a compact 5 Watt LED landscape floodlight designed for small-scale landscape lighting applications. This black LFLED flood delivers 299 lm at 5000K (Cool), uses line voltage operation, and features a microprismatic diffusion lens for smooth, even light distribution.
Product Summary
- Fixture Type: LED landscape floodlight
- Wattage: 5W
- Lumens: 299 lm
- Color Temperature: 5000K (Cool)
- Voltage: 100-240V
- Finish: Black
- Free shipping on orders over $250
Product Benefits
- Compact 5 Watt LED floodlight is perfectly suited for small-scale landscape lighting applications.
- 85% more energy efficient than its 35 Watt MR16 equivalent.
- Microprismatic diffusion lens provides smooth, even light distribution for outdoor accent lighting.
- Suitable for wet locations and ground mounting for landscape lighting installations.
Key Features
- Cool LED output: 5000K (Cool) color temperature with 299 lm output.
- Efficient LED performance: 5W LED with 5.1W input watts and 58.6 lm/W efficacy.
- NEMA beam spread: 4H x 4V NEMA type with 44° Beam Angle.
- Long LED life: 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations.
- Optional spot lens: Optional spot lens enables a tool-less conversion to a NEMA Type 3H x 3V.
- Durable construction: Precision die-cast aluminum housing, hood and mounting arm.
- High-temperature gaskets: High-temperature Silicone gaskets.
- Green technology: Mercury and UV free with RoHS-compliant components.
Specifications
Technical Specifications
| Catalog Number | LFLED5B |
| Family | LFLED |
| Wattage | 5 = 5W |
| Color Temp | Blank = 5000K Cool |
| Finish | B = Black |
| Driver Type | Constant Current |
| Driver | Constant Current, Class 2, 100-240V, 50-60Hz, 100-240VAC 0.18A. |
| Line Voltage | 120V-240V |
| Input Watts | 5.1W |
| 120V Current | 0.1A |
| 208V Current | 0.06A |
| 240V Current | 0.05A |
| 277V Current | N/A |
Performance Specifications
| Watts | 5W |
| Lumens | 299 lm |
| Color Temperature | 5000K (Cool) |
| Color Accuracy | 68 CRI |
| L70 Lifespan | 100,000 Hours |
| Efficacy | 58.6 lm/W |
| NEMA Type | NEMA Beam Spread of 4H x 4V |
| Beam Angle | 44° Beam Angle |
| Spot Lens | Optional spot lens enables a tool-less conversion to a NEMA Type 3H x 3V. |
| Color Consistency | 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color |
| Color Stability | LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period |
Physical Specifications
| Color | Black |
| Weight | 1.6 lbs |

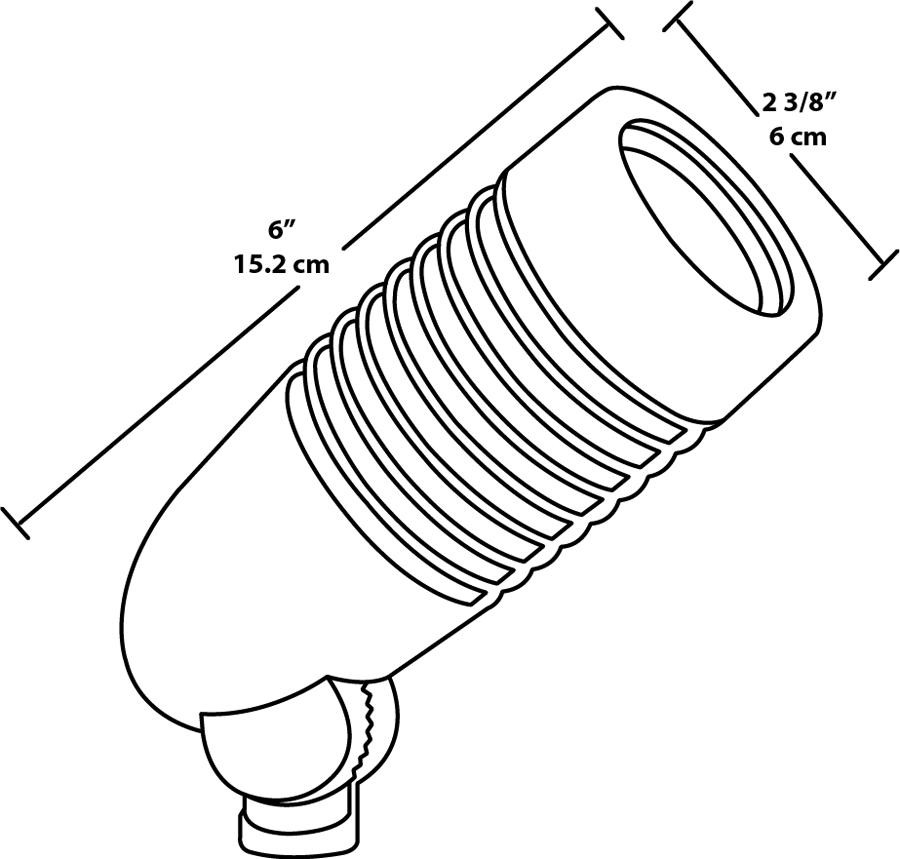

| Length | 6" / 15.2 cm |
| Diameter | 2 3/8" / 6 cm |
| Lens | Microprismatic diffusion lens for smooth and even light distribution |
| Housing | Precision die-cast aluminum housing, hood and mounting arm |
| Gaskets | High-temperature Silicone |
| Finish | Formulated for high durability and long-lasting color |
| Cold Weather Starting | The minimum starting temperature is -40°C (-40°F) |
| Maximum Ambient Temperature | Suitable for use in up to 40°C (104°F) |
Compliance & Safety
| UL Listed | Suitable for wet locations. Suitable for ground mounting. |
| IESNA LM-79 & LM-80 Testing | RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80 |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Patents | The design of the LFLED is protected by Taiwan Patent 01510966 and pending patents in US, Canada, China, and Mexico |
| Warranty | 5-Year, No-Compromise Warranty |
Applications
- Small-scale landscape lighting applications.
- Outdoor wet location landscape flood lighting.
- Ground-mounted lighting using a Mighty Post.
- Wall-mounted lighting on a weatherproof junction box and cover plate.
- Accent lighting or grazing buildings when using the optional spot lens.
Installation Tips
- Read carefully before installing fixture and retain these instructions for future reference.
- RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes.
- Proper grounding is required for safety.
- Make certain power is OFF before installing or maintaining fixture.
- For wall mounting, mount to a weatherproof junction box and cover plate.
- To ensure weatherproof seal, apply weatherproof silicone sealant around the edge of the wall cover plate or surface box.
- Seal arm thread using Teflon tape or silicone sealant.
- For ground mounting, mount to a Mighty Post (RAB Cat# MP19).
- Aim floodlight in the direction desired and tighten locknut and Arm Screw.
- Universal voltage driver permits operation at 120V thru 240V, 50 or 60 Hz.
Frequently Asked Questions
What is the lumen output of the LFLED5B?
The LFLED5B delivers 299 lm.
What wattage is this landscape flood?
The LFLED5B uses a 5W LED with 5.1W input watts.
What color temperature does this fixture provide?
This fixture provides 5000K (Cool) light.
What finish does the LFLED5B have?
The LFLED5B has a black finish.
Is this fixture suitable for wet locations?
Yes. The LFLED5B is UL Listed as suitable for wet locations and suitable for ground mounting.
What is the beam spread?
The LFLED5B has a NEMA Beam Spread of 4H x 4V with 44° Beam Angle.
Can this landscape flood be ground mounted?
Yes. The installation instructions show ground mounting to a Mighty Post (RAB Cat# MP19).
What is the LED lifespan?
The LFLED5B has a 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations.
What voltage range does this fixture support?
The driver is Constant Current, Class 2, 100-240V, 50-60Hz, 100-240VAC 0.18A.
What optional optical accessory is available?
An optional spot lens enables a tool-less conversion to a NEMA Type 3H x 3V.
