Leviton T5638-20W 18W (3.6A) USB Type A/Type-C Wall Outlet Charger, 15A TR Outlet

Product Description

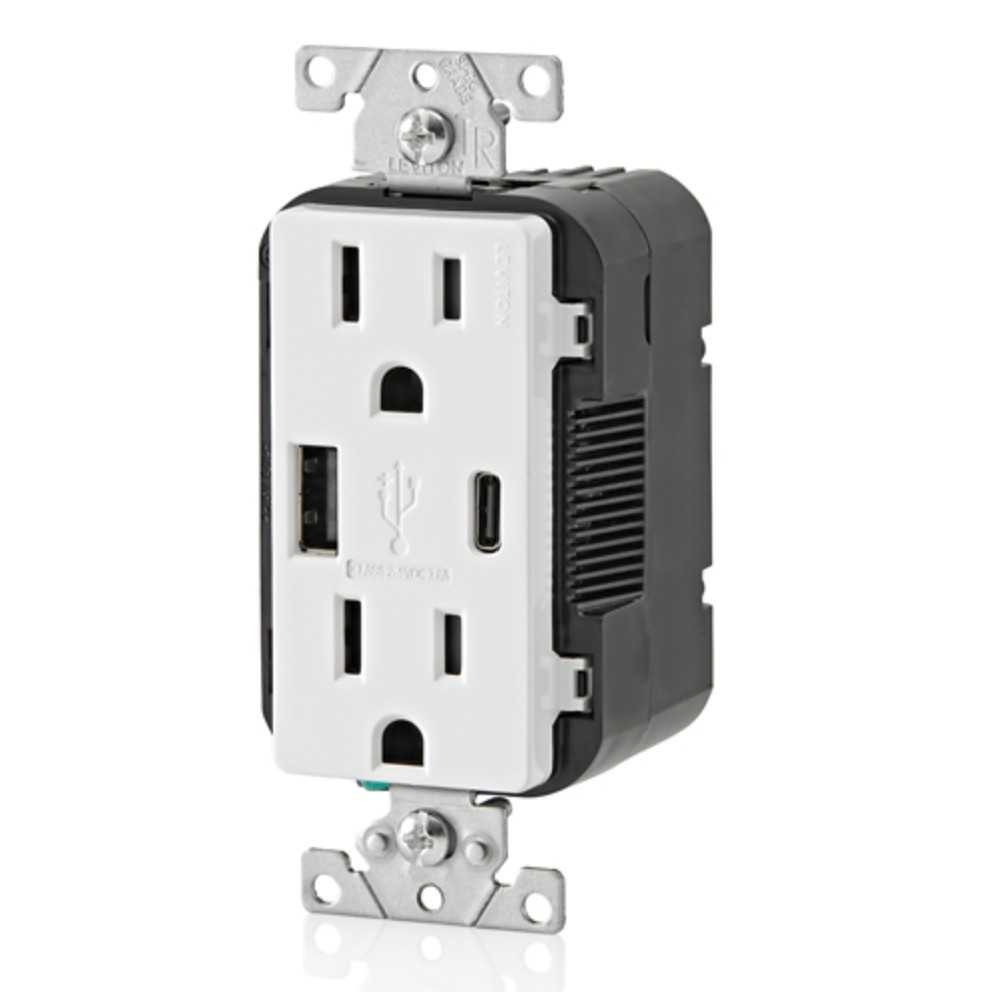

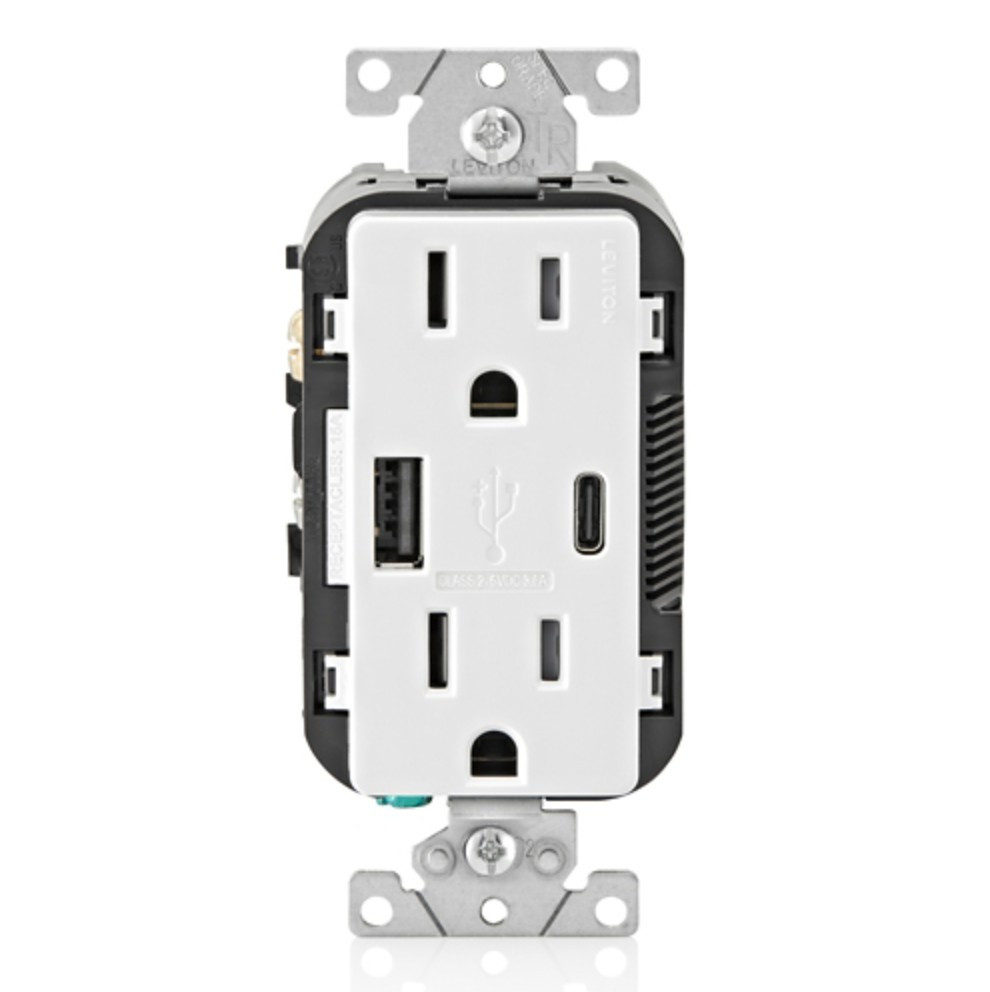

T5638-20W 18W (3.6A) USB Type A/Type-C Wall Outlet Charger, 15A TR Outlet from Leviton is a white Decora tamper-resistant duplex receptacle with one USB Type-A port, one USB Type-C port, and a 15A, 125V outlet. This Type A/C wall outlet charger delivers a combined total of 18W of power and 3.6A charging current, making it ideal for overnight charging of smartphones and other small devices while leaving the outlets available for additional power needs.

Product Benefits

• Charges most Type-A and Type-C USB powered devices from one wall outlet charger.
• Built-in smart chip recognizes individual device charging requirements to optimize the charge.
• Allows up to two USB powered devices to charge at once while keeping the outlets free for additional power needs.
• Tamper-resistant outlet helps prevent access by most non-rated or foreign objects.

Key Features

• USB Type-A and Type-C charging: Includes one Type-A port and one Type-C port for charging compatible USB powered devices.
• 18W combined output: Two charging ports deliver a combined total of 18W of power.
• 3.6A charging current: USB ports provide a combined total of 3.6A charging current.
• Smart charging: Built-in smart chip recognizes and optimizes the charging requirements of individual devices.
• No data transfer: USB ports are used to charge portable electronic devices only.
• USB compatibility: Compatible with USB 3.1, 3.0, 2.0, and 1.1 devices.
• Durable USB ports: USB ports tested to withstand over 10,000 insertions.
• Decora compatibility: Use with Decora wallplate or Decora+ screwless wallplate, sold separately.

Specifications

Technical Specifications

Catalog Number	T5638-20W
Product Type	Decora Tamper-Resistant Duplex Receptacle
Device Type	Decora Tamper-Resistant Duplex Receptacle
Type	Type A/C Duplex Receptacle
Feature	USB Type-A and Type-C
Amperage	15 A
Voltage	125 Volt
Outlet Rating	15A-125V
NEMA	5-15R
USB Rating	3.6A
USB Power Output	18W combined
Grounding	Grounding
Pole	2
Wire	3

Performance Specifications

USB Port Type	One Type A and one Type C 5VDC powered USB ports
Combined Charging Current	3.6A
Type-A Output	5VDC up to 2.4A (12W)
Type-C Output	5VDC up to 3A (15W)
Dual-Port Output	Once both ports are connected to portable electronic devices, each port will output 5V.
Power Delivery	Does not provide Power Delivery.
Data Transfer	No data transfer capability
USB Compatibility	Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
USB Insertions	USB Ports tested to withstand over 10,000 insertions
Recommended Use	Perfect for overnight charging for smart phones and other small devices, not for laptops

Physical Specifications

Color	White
Termination	Back and Side Wire
Terminal Accommodation	Back and Side wire terminals accept #14-#12 AWG copper or #10-#12 copper-clad wires.
Torque Range	14-18 in-lbs
Wallplate	Sold separately
Wallplate Compatibility	Use with Decora wallplate or Decora+ screwless wallplate
UPC Code	078477020128
Country Of Origin	Mexico

Compliance & Safety

Agency Certifications	cCSAus Listed
Grade	Spec Grade
Tamper-Resistant	Tamper-Resistant to help prevent access by most non-rated/foreign objects
FCC	This device complies with Part 15 of the FCC Rules.
Wire Rating	Use this device with wires rated for at least 167°F (75°C).
Warranty	1-Year Limited

Applications

• Residential wall outlet upgrades where USB Type-A and Type-C charging is needed.
• Overnight charging locations for smart phones and other small devices.
• Bedrooms, kitchens, home offices, and other spaces where charging adapters can be reduced.
• Standard single gang electrical wallbox installations.
• Installations using Decora wallplates or Decora+ screwless wallplates.

Installation Tips

• To avoid fire, shock, or death, turn off power at circuit breaker or fuse and test that the power is off before wiring.
• Install and use in accordance with appropriate electrical codes and regulations.
• If you are not sure about any part of the instructions, consult an electrician.
• This device cannot be used for separate feed applications.
• Use this device with copper or copper-clad wire only.
• Use this device with wires rated for at least 167°F (75°C).
• Install in a wallbox measuring at least 3 in. x 2 in. x 2.5 in. and wire in accordance with NEC article 314 box fill requirements.
• T5638 (15A) back and side wire terminals accept #12-#14 AWG copper or #10-#12 copper-clad wires.
• For side wiring, remove approximately 0.75 in. (1.9 cm) of insulation and apply torque value of 14-18 in-lbs.
• For back wiring, remove approximately 0.5 in. (1.3 cm) of insulation and tighten screws firmly.

Frequently Asked Questions

What USB ports are included on the T5638-20W?

The T5638-20W includes one USB Type-A port and one USB Type-C port.

What is the total USB charging output?

The two charging ports deliver a combined total of 18W of power and 3.6A charging current.

What is the Type-A USB output?

When the Type-A port is connected to a portable device, the charger will output 5VDC up to 2.4A (12W).

What is the Type-C USB output?

When the Type-C port is connected to a portable device, the charger will output 5VDC up to 3A (15W).

Does this USB charger support data transfer?

No. The USB ports are used to charge portable electronic devices only and have no data transfer capability.

Does this model provide Power Delivery?

No. The built-in smart chip optimizes charging requirements, but this device does not provide Power Delivery.

What is the outlet rating?

The T5638-20W is a 15A, 125V Decora tamper-resistant outlet with NEMA 5-15R configuration.

Is the wallplate included?

No. The wallplate is sold separately.

Can this device be used for separate feed applications?

No. This device cannot be used for separate feed applications.

What color is the T5638-20W?

The T5638-20W is white.
