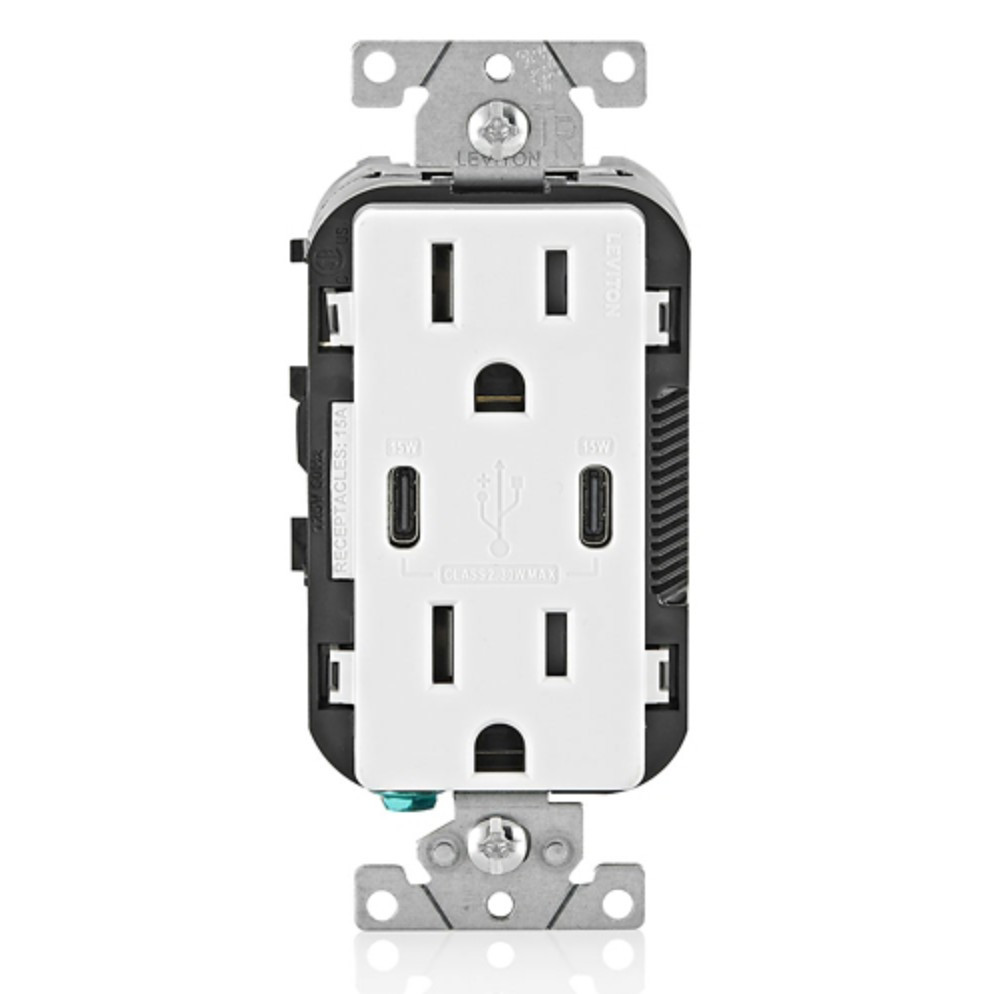

Leviton T5637-W 30W (6A) USB Dual Type-C/C Wall Outlet Charger, 15A TR Outlet

Product Description

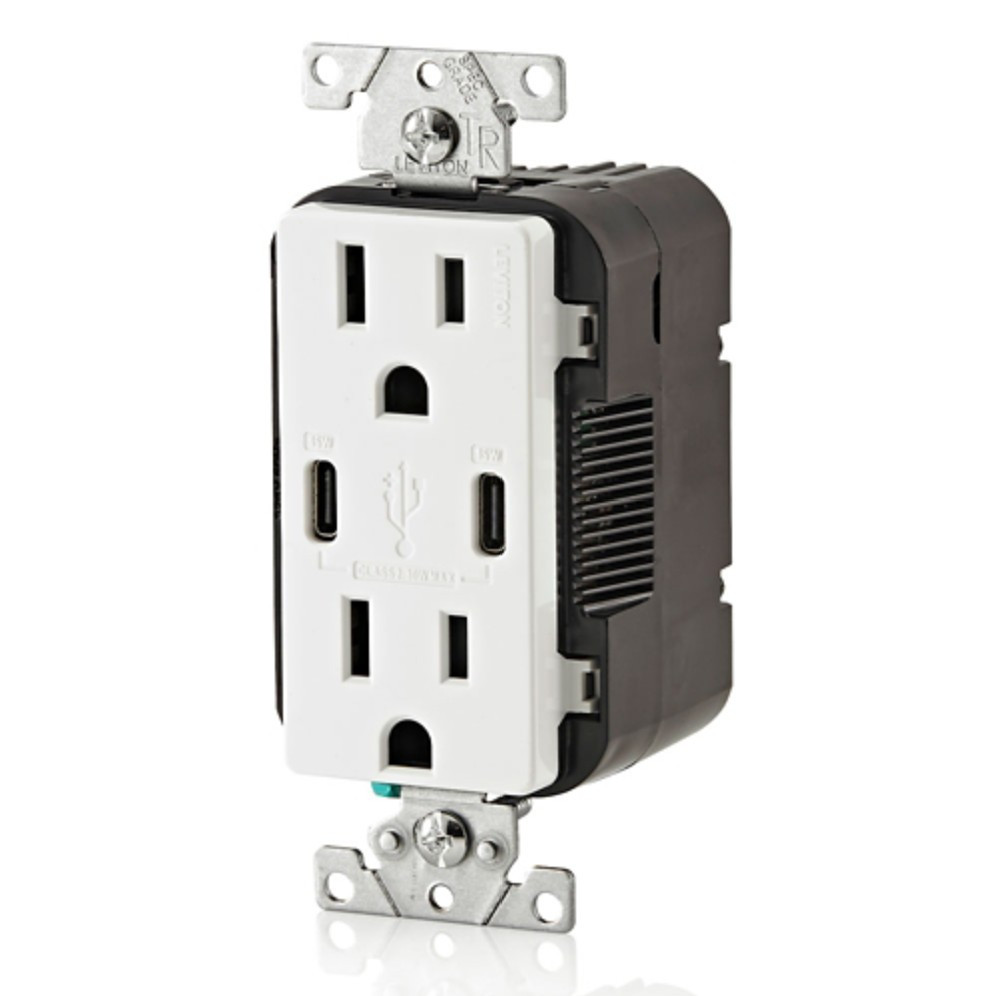

T5637-W 30W (6A) USB Dual Type-C/C Wall Outlet Charger, 15A TR Outlet from Leviton is a Decora tamper-resistant outlet and USB charger combination with two Type-C USB charging ports and a 15A, 125V tamper-resistant receptacle. This white wall outlet charger provides a combined total of 6A charging current and 30W of power, with side wired and back wired termination for installation flexibility.

Product Benefits

• Charges most Type-C devices directly and most Type-A devices with an adapter.
• Built-in smart chip recognizes the individual device’s charging requirements to optimize the charge.
• Frees the 15A tamper-resistant outlet for additional power needs while USB devices charge from the built-in Type-C ports.
• Built-in protection helps prevent the device from overheating, while tamper-resistant outlets help prevent unwanted objects from being inserted.

Key Features

• Dual USB Type-C ports: Two USB Type-C ports capable of 5V DC with a combined power output of 30W.
• 15W per port: When either port is connected to a portable device, the charger will output 5V DC at 3A maximum.
• 6A USB charger: Two high-powered charging ports deliver a combined total of 6A charging current.
• No data transfer: USB ports are used to charge portable electronic devices only.
• Tamper-resistant receptacle: Helps prevent access by most non-rated/foreign objects.
• Smart charging: Smart chip recognizes and optimizes the charging requirements of individual devices.
• Thermal protection: Internal thermos regulator prevents the electronics from overheating.
• Decora compatibility: Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately.

Specifications

Technical Specifications

Catalog Number	T5637-W
Product Type	Outlet/USB Combo
Type	Type C/C with Duplex Receptacle
Brand	Decora
Amperage	15 A
Voltage	125 VAC
Ratings	15A-125V
NEMA	5-15R
USB Rating	6A at 5V
USB Power Output	30W combined
Charging Per Port	15W maximum of charging per port
Horsepower Rating	15A-1/2 HP
Grounding	Grounding
Termination	Back & Side
Terminal Accommodation	14-12 AWG
Torque Range	14 – 18 in.-lbs

Performance Specifications

USB Port Type	Dual Type-C/C USB Chargers
Single-Port Output	5V DC at 3A maximum (15W)
Dual-Port Output	Once both ports are connected to portable electronic devices, each port will output 5V DC at 3A maximum.
Power Delivery	Does not provide Power Delivery.
Data Transfer	No data transfer capability
USB Compatibility	Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
Insertions	Tested to withstand over 10,000 insertions.
Wall Box Compatibility	Fits in a standard wallbox, is compatible with standard wallplates and can be multi-ganged with other devices
Wallplate	Not Included
Product Status	DISCONTINUED
Suggested Replacement SKU	CC1X3-W

Physical Specifications

Color	White
Body Material	Thermoplastic
Cover Material	Thermoplastic
Strap Material	Steel
Product ID	Stamped on Strap
Terminal ID	Brass-Hot Black-Hot White-Neutral Green-Gnd
UPC Code	078477000885
Country Of Origin	Mexico

Compliance & Safety

Listed	cCSAus
NOM	057
FCC Part 15	Class B
UL 1310	Yes
UL 498	Yes
Flammability	Rated V-0 per UL 94
Operating Temperature	-10°C to 40°C
Grade	Residential/Commercial Specification Grade
Warranty	2-Year Limited

Applications

• Residential applications such as kitchens, bedrooms, and home offices.
• Commercial applications such as hotels, airports, restaurants and cafes.
• Salons, office cubicles, and college dorm rooms.
• Locations where Type-C device charging is needed while keeping the outlet available for additional power needs.
• Standard wallbox installations using Decora® wallplates.

Installation Tips

• To avoid fire, shock, or death, turn off power at circuit breaker or fuse and test that the power is off before wiring.
• Install and use in accordance with appropriate electrical codes and regulations.
• If you are not sure about any part of the instructions, consult an electrician.
• This device cannot be used for separate feed applications.
• Use this device with copper or copper-clad wire only.
• Use this device with wires rated for at least 167°F (75˚C).
• Install in a wall box measuring at least 3 in. x 2 in. x 2.5 in. and wire in accordance with NEC article 314 box fill requirements.
• T5637 (15A) back and side wire terminals accept #12-#14 AWG copper or #10-#12 copper-clad wires.
• For side wiring, remove approximately 0.75 in. (1.9 cm) of insulation and apply torque value of 14-18 in-lbs.
• Wallplate sold separately.

Frequently Asked Questions

What is the USB output of the T5637-W?

The T5637-W has two USB Type-C ports capable of 5V DC with a combined power output of 30W.

How much power does each USB-C port provide?

When either port is connected to a portable device, the charger will output 5V DC at 3A maximum, or 15W.

Does this outlet support data transfer?

No. The USB ports are used to charge portable electronic devices only and have no data transfer capability.

Does this model provide Power Delivery?

No. The smart chip optimizes charging requirements, but this device does not provide Power Delivery.

What is the receptacle rating?

The receptacle is rated 15A-125V and uses NEMA 5-15R configuration.

Is the outlet tamper-resistant?

Yes. The tamper-resistant receptacle helps prevent access by most non-rated/foreign objects.

What wallplates are compatible?

The T5637-W is compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately.

Can this device be used for separate feed applications?

No. This device cannot be used for separate feed applications.

What wire sizes are accepted?

T5637 (15A) back and side wire terminals accept #12-#14 AWG copper or #10-#12 copper-clad wires.

What color is this model?

The T5637-W is white.
