Product Description

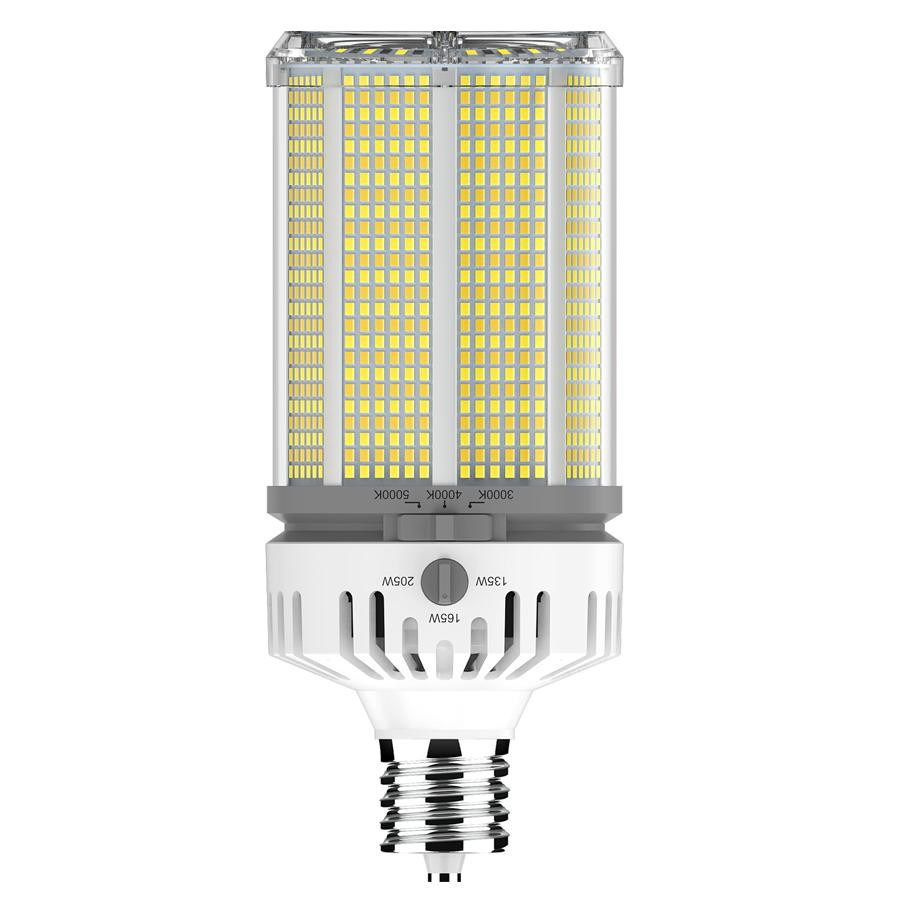

HIDFA-205S-EX39-8CCT-BYP HID Post Top CRI80 Type B EX39 135/165/205W 3000/4000/5000K from RAB Lighting is a high-output LED HID replacement lamp engineered to replace traditional 750W metal halide and high-pressure sodium lamps. Featuring selectable wattage and color temperature settings, this Type B ballast bypass LED retrofit lamp delivers flexible field-adjustable performance for post top, high bay, and enclosed fixture applications while maximizing energy savings and maintenance reduction.
Product Summary
Brand: RAB Lighting
Model: HIDFA-205S-EX39-8CCT-BYP
Product Type: HID LED Replacement Lamp
Base Type: EX39 Exclusionary Mogul
Selectable Wattages: 135W / 165W / 205W
Selectable Color Temperatures: 3000K / 4000K / 5000K
Lumen Output: 20,250lm / 24,750lm / 30,750lm
Voltage: 100-277V
CRI: ≥80 CRI
Efficacy: 150lm/W
IP Rating: IP64
Warranty: 5-Year Limited Warranty
Free shipping on orders over $250
Product Benefits
- Field-adjustable wattage and CCT settings allow installers to customize light output and color temperature during installation.
- Direct line-voltage ballast bypass design eliminates the need for external drivers or ballasts, simplifying retrofit upgrades.
- High efficacy performance of 150lm/W helps significantly reduce energy consumption compared to traditional HID lamps.
- Suitable for enclosed fixtures in dry and damp locations, making it ideal for post top, area lighting, and industrial applications.
Key Features
- Type B Ballast Bypass: Designed for direct wiring to line voltage.
- Selectable Power: 135W, 165W, or 205W selectable via dip switch.
- Selectable CCT: 3000K, 4000K, or 5000K adjustable color temperature.
- High Output: Up to 30,750 lumens.
- EX39 Mogul Base: Compatible with HID retrofit applications.
- Enclosed Fixture Rated: Approved for enclosed fixtures in dry and damp locations.
- Long Life: 50,000-hour LED lifespan.
- Surge Protection: Integrated 4kV surge protection.
- Dimmable: Supports dimming functionality.
Specifications
Technical Specifications
| Model Number | HIDFA-205S-EX39-8CCT-BYP |
| Input Wattage | 205W / 165W / 135W |
| Lumen Output | 30,750lm / 24,750lm / 20,250lm |
| Efficacy | 150lm/W |
| Input Voltage | 100-277V |
| Operating Frequency | 50/60Hz |
| Power Factor | ≥0.9 |
| THD | ≤20% |
| Dimming | Yes |
LED Performance
| Selectable Color Temperatures | 3000K / 4000K / 5000K |
| CRI | ≥80 CRI |
| Color Consistency | <6-step MacAdam Ellipse binning |
| Color Stability | Color shift no more than 200K over 5 years |
| L70 Lifespan | 50,000 hours |
| Flicker | <30% |
Construction & Compliance
| Base Type | EX39 Exclusionary Mogul |
| Bulb Shape | Post Top |
| Enclosure Material | Polycarbonate |
| Endcap Material | Metal |
| IP Rating | IP64 |
| Listings | UL Listed, UL Classified |
| Environment | Dry and damp locations |
| Fixture Rating | Suitable for enclosed fixtures |
| Operating Temperature | -22°F to 140°F (-30°C to 60°C) |
| RoHS | Mercury and UV free |
Applications
- Post top retrofit lighting
- Area and site lighting upgrades
- Industrial and warehouse high bay fixtures
- Parking lot and roadway lighting retrofits
- Municipal and campus lighting projects
- Enclosed HID fixture conversions
Installation Tips
- Ballasts, capacitors, and ignitors must be bypassed or removed before installation.
- Do not operate the lamp on existing HID ballasts.
- Select desired wattage and CCT settings using the onboard dip switches before installation.
- Install only in fixtures suitable for Type B ballast bypass retrofits.
- Use the included safety cable to secure the lamp to the luminaire.
- Verify direct line voltage wiring before energizing the fixture.
- Do not use with standard dimmers.
FAQ
What HID wattage does this lamp replace?
This LED retrofit lamp replaces traditional 750W metal halide HID lamps.
Does this lamp require ballast removal?
Yes. This is a UL Type B ballast bypass lamp and must be wired directly to line voltage.
Can the wattage be adjusted?
Yes. The lamp features selectable wattage settings of 135W, 165W, and 205W.
Can the color temperature be changed?
Yes. The lamp includes selectable 3000K, 4000K, and 5000K color temperature settings.
Is this lamp suitable for enclosed fixtures?
Yes. The lamp is rated for use in enclosed fixtures in dry and damp locations.
What type of base does this lamp use?
This model uses an EX39 exclusionary mogul base.
What is the expected LED lifespan?
The lamp is rated for 50,000 hours based on L70 LED performance.
Does this product support dimming?
Yes. The lamp supports dimming functionality when used with compatible controls.
What environments is this lamp rated for?
The lamp is suitable for dry and damp locations and operates in temperatures from -22°F to 140°F.
