Product Description

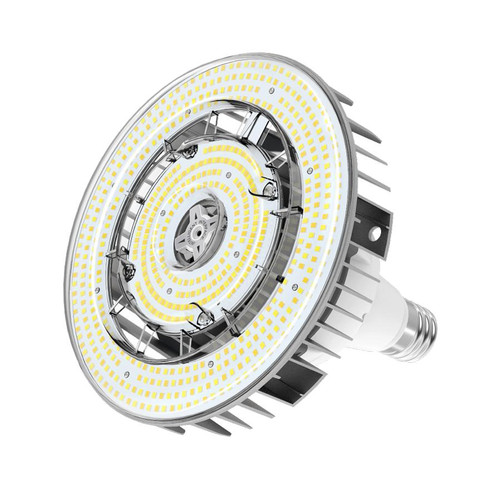

HIDFA-115S-V-EX39-8CCT-BYP/5SP HID Replacement Field Adjustable 8700/11600/16675 Lumens 60/80/115W from RAB Lighting is a field-adjustable HID replacement lamp designed to replace traditional metal halide or high pressure sodium HID lamps. This vertical EX39 ballast bypass lamp offers selectable 60W/80W/115W power, selectable 3000K/4000K/5000K color temperature, up to 16,675lm nominal output, and an integrated AUX port for lamp-level sensor control.
Product Summary
- Product Type: Field adjustable HID replacement lamp
- Input Wattage: 60W/80W/115W
- Lumens: 8,100-16,675lm
- Color Temperature: 3000K/4000K/5000K
- Input Voltage: 100-277V
- Base Type: EX39
- Installation Method: UL Type B, Ballast Bypass
- Free shipping on orders over $250
Product Benefits
- Field-adjustable lumen output and CCT provide installation flexibility when replacing traditional HID lamps.
- Adjustable wattage and CCT allow in-field customization for 60W, 80W, or 115W applications.
- Integral driver enables the lamp to be wired directly to line voltage without the need for an external driver or ballast.
- Rated for use in enclosed fixtures in dry or damp locations.
Key Features
- Selectable wattage: 60W/80W/115W power selectable design.
- Selectable CCT: Field adjustable via dip switch 3000K/4000K/5000K.
- High lumen output: Up to 16,675lm nominal output at 115W and 4000K.
- Ballast bypass installation: UL Type B, Ballast Bypass installation method.
- EX39 base: EX39 extended mogul base for HID replacement applications.
- Sensor-ready design: Integrated AUX port and 5-Pin Sensor Port for compatible lamp-level sensor control.
- Lightcloud Blue compatible: Compatible products include Lightcloud Blue 5-Pin Plug-in Controller options.
- Surge protection: 4kV surge protection.
Specifications
Technical Specifications
| Catalog Number | HIDFA-115S-V-EX39-8CCT-BYP/5SP |
| UPC | 192552027014 |
| Family | HIDFA |
| Wattage | 115S = 60/80/115W |
| Base Type | EX39 = EX39 Extended Mogul |
| CRI / Color Temp | 8CCT = 80 CRI, 3000K/4000K/5000K |
| Installation Type | BYP = Ballast Bypass |
| Sensor | /5SP = 5-Pin Sensor Port |
| Input Voltage | 100-277V |
| Operating Frequency | 50/60Hz |
| Input Current @ 120V | 988mA |
| Input Current @ 208V | 587mA |
| Input Current @ 240V | 521mA |
| Input Current @ 277V | 415mA |
| THD | ≤20% |
| Power Factor | ≥0.9 |
| Surge Protection | 4kV |
Performance Specifications
| Wattage Equivalency | 200W/250W/400W Metal Halide |
| Input Wattage | 60W/80W/115W |
| Lumens at 60W | 3000K @ 8,100lm; 4000K @ 8,700lm; 5000K @ 8,400lm |
| Lumens at 80W | 3000K @ 10,800lm; 4000K @ 11,600lm; 5000K @ 11,200lm |
| Lumens at 115W | 3000K @ 15,525lm; 4000K @ 16,675lm; 5000K @ 16,100lm |
| Efficacy | 3000K @ 135lm/W; 4000K @ 145lm/W; 5000K @ 140lm/W |
| L70 Lifespan | 50,000-Hour LED lifespan based on IES LM-70 results |
| Dimmable | Yes, via the Lightcloud Blue mobile app and devices. This lamp will not operate properly when connected to a standard (incandescent) dimmer or dimming control. |
| Color Temperature | Field adjustable via dip switch 3000K/4000K/5000K |
| Color Accuracy | ≥80 CRI |
| R9 Value | High color performance with R9 no less than 0 |
| Flicker | <30% |
Physical Specifications
| Installation Orientation | Vertical |
| Burning Position | Base up |
| Finish | Clear |
| Color | Clear |
| Bulb Shape | High bay (sensor) |
| Endcap Material | Metal |
| Enclosure Material | Polycarbonate |
| Operating Temperature | -22°F to 140°F (-30°C to 60°C) |

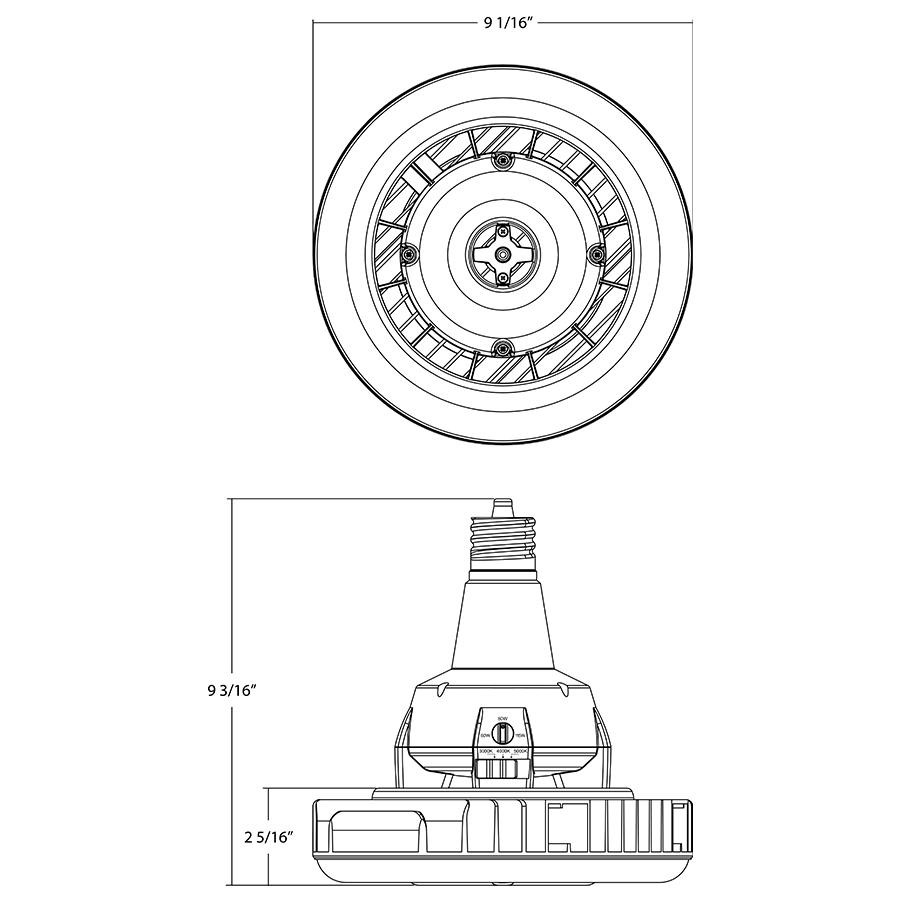

| Diameter | 9 1/16" |
| Height | 9 3/16" |
| Case Quantity | 4 |
| Case Dimensions | 20.27 in x 20.27 in x 11 in |
Compliance & Safety
| Listings | UL Listed, UL Classified |
| Environment | Suitable for use in dry and damp environments |
| Fixture Rating | Suitable for use in enclosed fixtures |
| IP Rating | IP64 |
| Model Number for Certification | H20043(HIDFA-115S-V-EX39-8CCT-BYP/5SP) |
| California Energy Commission (CEC) Status | Lawful for Sales in California |
| RoHS | Mercury and UV free. RoHS-compliant components. |
| FCC | Complies with Part 15B of the FCC Rules |
| DLC Listed | This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements. |
| DLC Product Code | PLNAFK8CSGYM |
| Warranty | 5-Year Limited Warranty |
Applications
- Replacement for traditional metal halide HID lamps.
- Replacement for high pressure sodium HID lamps.
- High bay and other suitable light fixtures.
- Enclosed fixtures in dry or damp locations.
- Field-customized HID replacement projects requiring selectable wattage and selectable CCT.
Installation Tips
- Read carefully before installing LED HID bulbs and retain the instructions for future reference.
- RAB LED HID Bulbs must be wired in accordance with the National Electrical Code and all applicable codes.
- Proper grounding is required for safety.
- These LED lamps require all ballasts, capacitors, and ignitors to be bypassed or removed. Do not operate lamps on existing ballasts.
- Before installation make certain the AC power to the fixture is off.
- Risk of fire or electric shock. LED Retrofit lamp installation requires knowledge of luminaires electrical systems. If not qualified, do not attempt installation. Contact a qualified electrician.
- Use the safety cable to secure the lamp in case of falling down due to old socket. Attach one end of the safety cable to the lamp and the other end to the luminaire.
- Select power and color temperature (CCT) of the new LED replacement lamp before installation.
- Make sure the Alternating Current Wires connect to the socket directly.
- Screw the LED lamp into the corresponding socket and attach retrofit label to luminaire.
Frequently Asked Questions
What wattage settings are available on the HIDFA-115S-V-EX39-8CCT-BYP/5SP?
This field adjustable HID replacement lamp offers 60W, 80W, and 115W selectable power settings.
What color temperatures can this lamp be set to?
The color temperature is field adjustable via dip switch for 3000K, 4000K, or 5000K.
What is the highest lumen output?
The highest nominal output is 16,675lm at 115W and 4000K.
What traditional lamps does this replace?
This lamp replaces traditional metal halide or high pressure sodium HID lamps, with wattage equivalency listed as 200W/250W/400W Metal Halide.
What base type does this lamp use?
The lamp uses an EX39 extended mogul base.
What installation method is required?
The installation method is UL Type B, Ballast Bypass.
Can this lamp operate on an existing ballast?
No. These LED lamps require all ballasts, capacitors, and ignitors to be bypassed or removed.
Is this lamp suitable for enclosed fixtures?
Yes. The fixture rating states that it is suitable for use in enclosed fixtures.
Is this lamp dimmable?
Yes. It is dimmable via the Lightcloud Blue mobile app and devices, but it will not operate properly when connected to a standard incandescent dimmer or dimming control.
What compatible Lightcloud Blue accessories are listed?
Compatible accessories include CONTROL/W/AUX/5SP/LCB, CONTROL/W/AUX/5SP/LCBS, and CONTROL/W/AUX/5SP/LCBS/MVS.
