Product Description

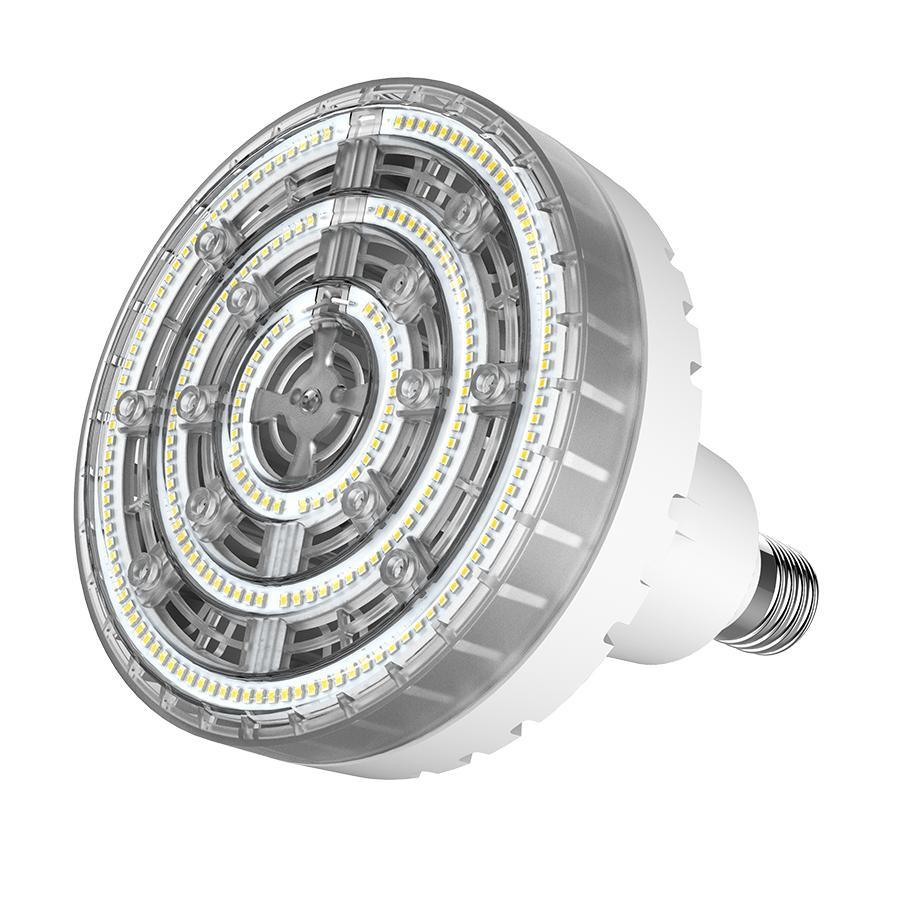

HID-80-V-EX39-850-BYP-HB-ECO HID Replacements 10800 Lumens HID 80W Vertical Base EX39 80CRI from RAB Lighting is an 80W HID replacement lamp designed to replace traditional Metal Halide or High Pressure Sodium HID lamps. This high bay LED replacement delivers 10,800lm at 5000K with 80 CRI, an EX39 base, Type B ballast bypass installation, and an integral driver that allows the lamp to be wired directly to line voltage without an external driver or ballast.
Product Summary
- Product Type: HID Replacement
- Input Wattage: 80W
- Lumens: 10,800lm
- Color Temperature: 5000K
- CRI: 80
- Base Type: EX39
- Installation Method: UL Type B, Ballast Bypass
- Free shipping on orders over $250
Product Benefits
- Replaces traditional Metal Halide or High Pressure Sodium HID lamps with an efficient LED HID replacement.
- Integral driver enables the lamp to be wired directly to line voltage without the need for an external driver or ballast.
- Rated for use in enclosed and open fixtures in dry or damp locations.
- Built-in 4kV surge protection and 50,000-Hour LED lifespan support reliable long-term performance.
Key Features
- High output: 10,800lm nominal output from an 80W LED HID replacement lamp.
- 5000K light: 5000K color temperature with 80 CRI.
- Ballast bypass installation: UL Type B installation method requires bypassing the ballast.
- EX39 base: Designed with an EX39 base type for compatible HID replacement applications.
- High bay shape: High Bay bulb shape for high bay and other suitable light fixtures.
- 0-10V dimming compatibility: Compatible with RAB specified 0-10V dimming system.
- Sensor accessory support: Lamp includes on board low-voltage AUX port for lamp level sensor accessories.
- Mercury-free design: Environmentally friendly, no mercury used.
Specifications
Technical Specifications
| Catalog Number | HID-80-V-EX39-850-BYP-HB-ECO |
| UPC | 019813908472 |
| Product Type | HID Replacement |
| Input Wattage | 80W |
| Input Voltage | 100-277V |
| Operating Frequency | 60 Hz |
| Base Type | EX39 |
| Installation Method | UL Type B, Ballast Bypass |
| Burning Position | Base Up |
| THD | <20% |
| Power Factor | >0.9 |
| Surge Protection | 4kV |
Performance Specifications
| Lumens (Nominal) | 10,800lm |
| Efficacy | 135lm/W |
| Color Temperature | 5000K |
| Color Accuracy (CRI) | 80 |
| L70 Lifespan | 50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
| Wattage Equivalency | 250W |
| Technology EQ | Metal Halide or High Pressure Sodium |
| Dimming | Compatible with RAB specified 0-10V dimming system. Dimming capabilities were tested and verified on Legrand RH4FBL3PTC 0-10V dimming system. |
Physical Specifications
| Bulb Shape | High Bay |
| Enclosure Material | Polycarbonate & Metal heat sink |
| Housing Finish | White |

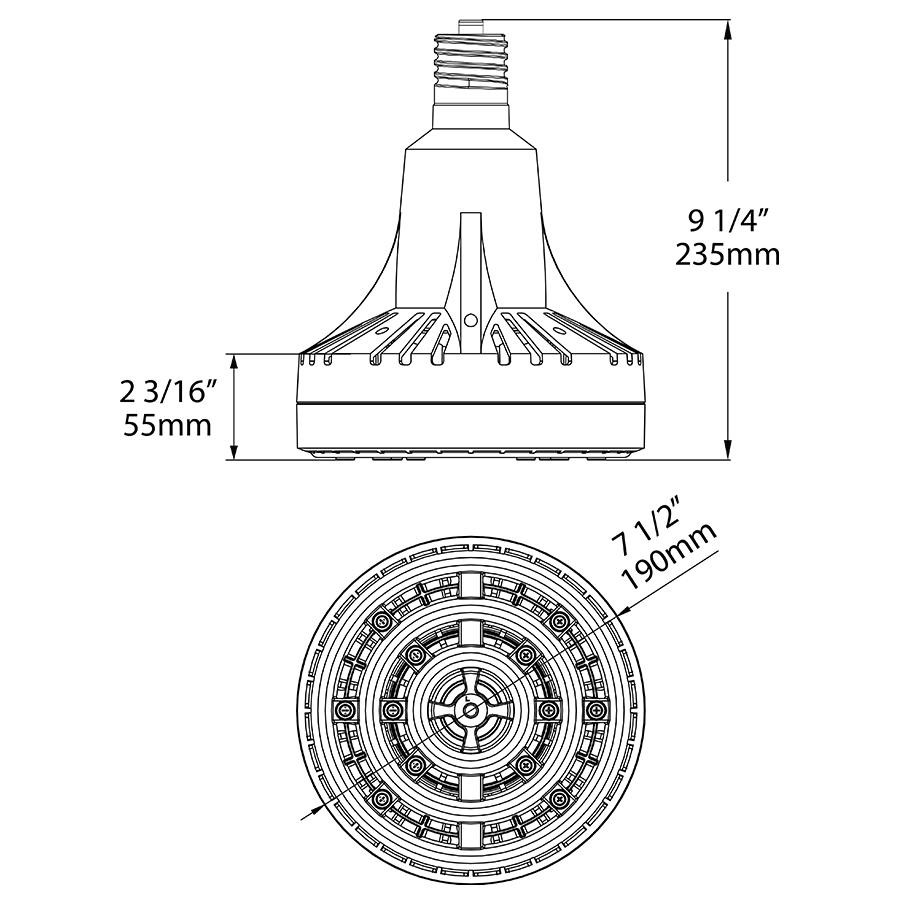

| Height | 9 1/4" / 235mm |
| Diameter | 7 1/2" / 190mm |
| Base Diameter | 2 3/16" / 55mm |
| Operating Temperature | -30°C to 60°C |
Compliance & Safety
| Listings | UL Listed, UL Classified |
| DLC Listed | This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements. |
| DLC Product Code | PLMX58WXO6X9 |
| Environment / Fixture Rating | Damp / Enclosed |
| IP Rating | IP64 |
| RoHS | Mercury and UV free. RoHS-compliant components. |
| FCC | Complies with Part 15B of the FCC Rules |
| Model Number for Certification | H10036(HID-80-V-EX39-850-BYP-HB-ECO) |
| Warranty | 5 Year Limited Warranty |
Applications
- Replacement for traditional Metal Halide HID lamps.
- Replacement for traditional High Pressure Sodium HID lamps.
- High bay and other suitable light fixtures.
- Enclosed and open fixtures in dry or damp locations.
- Applications requiring UL Type B ballast bypass HID replacement lamps.
Installation Tips
- Read carefully before installing LED HID bulbs and retain these instructions for future reference.
- RAB LED HID Bulbs must be wired in accordance with the National Electrical Code and all applicable codes.
- Proper grounding is required for safety.
- These LED lamps require all ballasts, capacitors, and ignitors to be bypassed or removed. Do not operate lamps on existing ballasts.
- Before installation make certain the AC power to the fixture is off.
- Risk of fire or electric shock. LED Retrofit lamp installation requires knowledge of luminaires electrical systems. If not qualified, do not attempt installation. Contact a qualified electrician.
- Burning position is base up.
- Use the safety cable to secure the lamp in case of falling down due to old socket. Attach one end of the safety cable to the lamp and the other end to the luminaire.
- Turn off the power before installation and remove the old ballast, capacitor and ignitor if existing.
- Make sure the Alternating Current wires connect to the socket directly, then screw the LED lamp into the corresponding socket and attach retrofit label to luminaire.
Frequently Asked Questions
What does the HID-80-V-EX39-850-BYP-HB-ECO replace?
It is a replacement for traditional Metal Halide or High Pressure Sodium HID lamps and has a 250W wattage equivalency.
How many lumens does this HID replacement lamp produce?
The nominal lumen output is 10,800lm.
What is the wattage of this lamp?
The input wattage is 80W.
What color temperature does this model provide?
This model provides 5000K light output.
What base type does this lamp use?
The base type is EX39.
What installation method is required?
The installation method is UL Type B, Ballast Bypass.
Can this lamp operate on an existing ballast?
No. These LED lamps require all ballasts, capacitors, and ignitors to be bypassed or removed. Do not operate lamps on existing ballasts.
Is this lamp suitable for enclosed fixtures?
Yes. It is rated for use in enclosed and open fixtures in dry or damp locations.
Is this lamp dimmable?
Yes. It is compatible with RAB specified 0-10V dimming system.
What is the required burning position?
The burning position is base up.
