Product Description

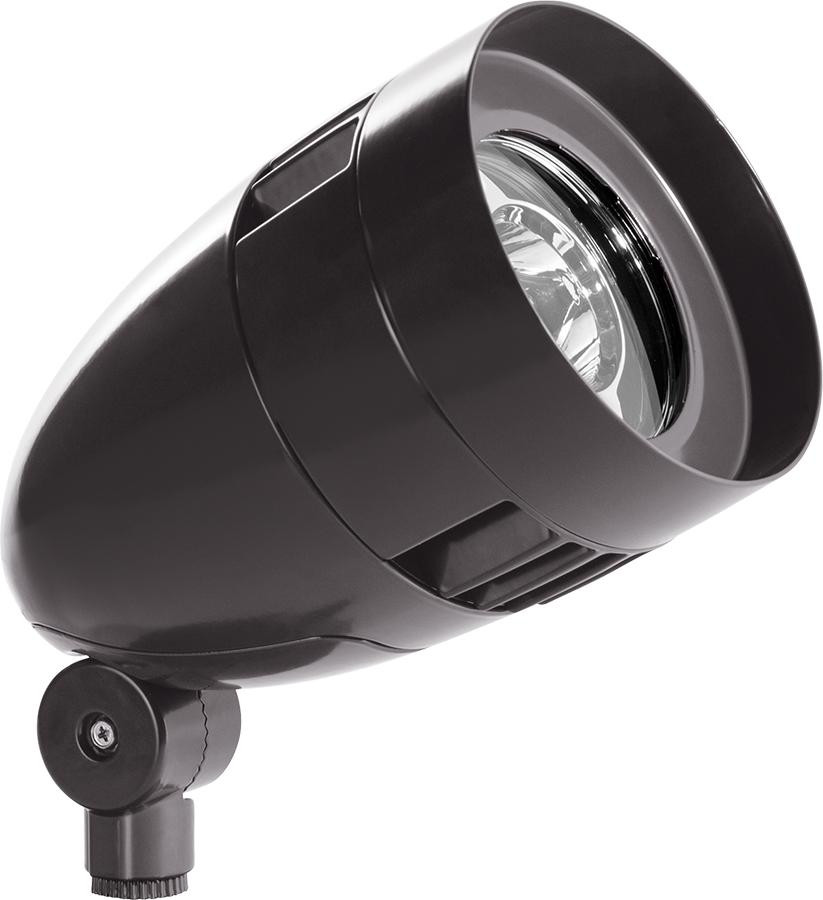

HBLED18A Landscape 2655 Lumens HBLED With Flood Reflector 18W 5000K Bronze from RAB Lighting is a bronze LED landscape flood fixture designed for wet locations and ground mounting. This 18W HBLED fixture delivers 2,655 lm at 5000K with a NEMA Beam Spread of 5H x 5V, making it a strong option for efficient outdoor landscape and flood lighting applications.
Product Summary
- Wattage: 18W
- Lumens: 2,655 lm
- Color Temperature: 5000K (Cool)
- Voltage: 120-277V
- Finish: Bronze
- Free shipping on orders over $250
Product Benefits
- Provides 80% energy savings vs. PAR floods for efficient landscape lighting performance.
- Suitable for wet locations and ground mounting, supporting outdoor lighting installations.
- Mounts on a junction box or on RAB Mighty Post for flexible installation options.
- Uses patent-pending "Air-Flow" technology with external Air-Flow fins for superior heat sinking.
Key Features
- High-output LED performance: Delivers 2,655 lm from 18W.
- 5000K cool color temperature: Provides 5000K (Cool) illumination.
- NEMA beam spread: NEMA Beam Spread of 5H x 5V.
- Durable construction: Precision die-cast aluminum housing, lens frame and mounting arm.
- Heavy-duty mounting arm: Heavy-duty 1/2" thread mounting arm with "O" ring seal & stainless steel screws.
- Thermal management: Superior heat sinking with external Air-Flow fins.
- High-temperature gaskets: High-temperature silicone gaskets.
- Green technology: Mercury and UV free with RoHS-compliant components.
Specifications
Technical Specifications
| Product | HBLED18A |
| Driver Type | Constant Current |
| Driver | Constant Current, 120-277V with 4kV surge protection, 120V: 0.17A, 208V: 0.09A, 240V: 0.08A, 277V: 0.06A |
| Input Watts | 19.5W |
| Watts | 18W |
| 120V Current | 0.17A |
| 208V Current | 0.09A |
| 240V Current | 0.08A |
| 277V Current | 0.06A |
| THD | 9.38% at 120V, 9.95% at 277V |
| Power Factor | 99.1% at 120V, 91.6% at 277V |
Performance Specifications
| Color Temp | 5000K (Cool) |
| Color Accuracy | 71 CRI |
| L70 Lifespan | 100,000 Hours |
| Lumens | 2,655 lm |
| Efficacy | 136.2 lm/W |
| NEMA Type | NEMA Beam Spread of 5H x 5V |
| Color Stability | RAB LEDs exceed industry standards for chromatic stability |
| Color Uniformity | RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017. |
Physical Specifications
| Color | Bronze |
| Weight | 4.8 lbs |
| Length | 8 3/4" / 222 mm |
| Diameter | 5 1/2" / 140 mm |
| Cold Weather Starting | The minimum starting temperature is -40°C (-40°F) |
| Thermal Management | Superior heat sinking with external Air-Flow fins |
| Housing | Precision die-cast aluminum housing, lens frame and mounting arm |
| Reflector | Semi-specular, vacuum-metalized polycarbonate |
| Mounting | Heavy-duty 1/2" thread mounting arm with "O" ring seal & stainless steel screws |
| Gaskets | High-temperature silicone gaskets |
| Finish | Environmentally friendly polyester powder coatings formulated for high-durability and long-lasting color |
Compliance & Safety
| UL Listed | Suitable for wet locations. Suitable for ground mounting. |
| DLC Listed | This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements. |
| DLC Product Code | PHVEHBQN1 |
| LEDs | Multi-chip, high-output, long-life LEDs |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Warranty | 5-Year, No-Compromise Warranty |
Applications
- Landscape lighting installations requiring a bronze LED flood fixture.
- Wet location outdoor lighting applications.
- Ground-mounted lighting using RAB Mighty Post.
- Junction box mounted outdoor lighting installations.
- Applications requiring NEMA Beam Spread of 5H x 5V.
Installation Tips
- Read carefully before installing fixture and retain the instructions for future reference.
- RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes.
- Proper grounding is required for safety.
- Make certain power is OFF before installing the fixture.
- For proper weatherproof seal, apply weatherproof silicone sealant around the edge of the Junction Box.
- Use silicone sealant or Teflon tape around the thread of the arm.
- For wall mounting, mount to a weatherproof Junction Box and Cover Plate.
- For ground mounting, mount to a Mighty Post (RAB Cat# MP19).
- Aim fixture in the desired direction and tighten locknut and Arm Screw.
- Clean glass lens with non-abrasive glass cleaning solution and do not open the fixture to clean the LED.
Frequently Asked Questions
What is the lumen output of the HBLED18A?
The HBLED18A delivers 2,655 lm.
What wattage is this fixture?
This fixture is rated at 18W with 19.5W input watts.
What color temperature does the HBLED18A produce?
The HBLED18A produces 5000K (Cool) light.
What finish does this model have?
The HBLED18A has a bronze finish.
Is the HBLED18A suitable for wet locations?
Yes. It is UL Listed suitable for wet locations and suitable for ground mounting.
Can this fixture be ground mounted?
Yes. The installation instructions show ground mounting to a Mighty Post (RAB Cat# MP19).
What is the beam spread?
The HBLED18A has a NEMA Beam Spread of 5H x 5V.
What is the LED lifespan?
The L70 lifespan is 100,000 Hours.
What voltage range does the driver support?
The driver is Constant Current, 120-277V with 4kV surge protection.
What is the warranty?
The HBLED18A includes a 5-Year, No-Compromise Warranty.
