Product Description

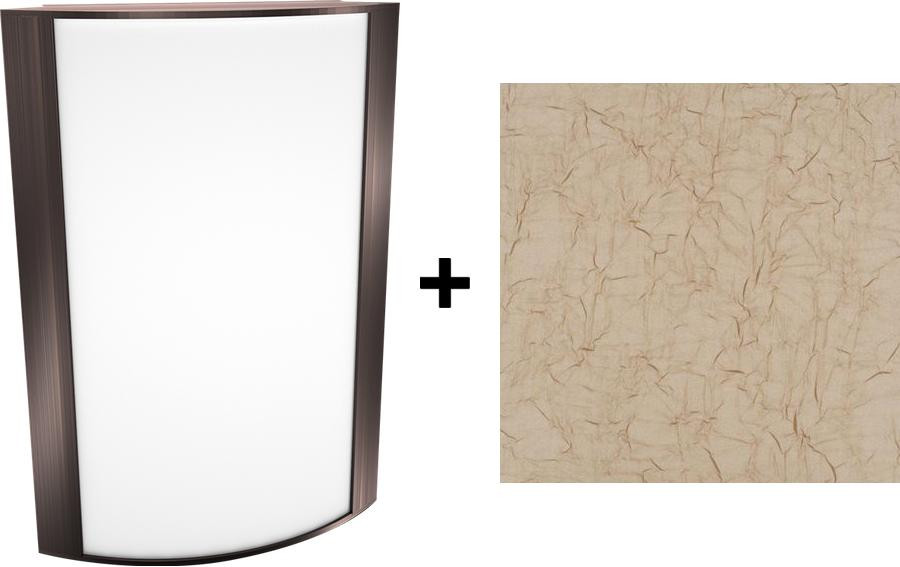

HALVS10L927-CS-A Architectural 261 Lumens HALVS Forward & Up/down Light 14W 90CRI is a 10" architectural LED forward and up/down light wall sconce delivering 261 lumens at 2700K with 94 CRI, in an Antique Bronze frame with a Crush Sedona lens. It is a vapor-proof indoor sconce recommended for damp locations, dimmable on 0-10V, TRIAC, and ELV systems, ADA compliant, with a 50,000-hour lifespan. Specs verified from the RAB specification sheet.
Key Specs
- Type: Architectural forward and up/down light sconce
- Wattage: 14W
- Color Temperature: 2700K
- Finish: Antique Bronze
- Lens: Crush Sedona
Why Buy Here?
- Free shipping on orders over $250
- Fast handling & commercial invoicing
- Expert support for spec substitutions
Product Benefits
- Crush Sedona lens over a warm LED source for a refined architectural glow.
- Forward and up/down light distribution for layered wall illumination.
- Antique Bronze frame with die-cast and extruded aluminum construction.
- Three-way dimming — 0-10V, TRIAC, and ELV — for flexible control.
- 50,000-hour lifespan based on IES LM-80 results and TM-21 calculations.
Key Features
- 90 CRI for natural, accurate color rendering.
- Crush Sedona lens with a decorative or frosted finish.
- ADA compliant for wall-mounted luminaires.
- UL listed, rated for damp locations.
- 5-Year Limited Warranty.
Specifications
Performance Specifications
| Wattage | 14W |
| Lumens | 261 lm |
| Efficacy | 18.6 lm/W |
| Color Temperature | 2700K |
| CRI | 94 |
| L70 Lifespan | 50,000 hours |
| Wattage Equivalency | Equivalent to 60W Incandescent |
Electrical Specifications
| Driver | Constant Current, Class 2, 120-277VAC, 50/60 Hz |
| Input Voltage | 120-277V |
| Dimming | 0-10V (120-277V), TRIAC and ELV (120V only) |
Physical Specifications
| Housing | Die-cast and extruded aluminum |
| Lens | Crush Sedona |
| Finish | Antique Bronze |
| Mounting | Wall mount with junction box included |
Compliance & Safety
| UL Listed | Suitable for damp locations |
| ADA Compliant | Meets ADA requirements for wall-mounted luminaires |
| Warranty | 5-Year Limited |
Applications
- Hotel and hospitality corridors
- Multi-family and residential hallways
- Retail, commercial, and architectural interiors
Installation Tips
- Wall mount with the included junction box.
- Use 0-10V, TRIAC, or ELV compatible dimming per the electrical specification.
Frequently Asked Questions
Is it dimmable?
Yes — 0-10V (120-277V), plus TRIAC and ELV at 120V.
What color temperatures are available?
2700K with 90 CRI.
Where can it be installed?
Rated for damp locations; recommended for indoor use.
