Product Description

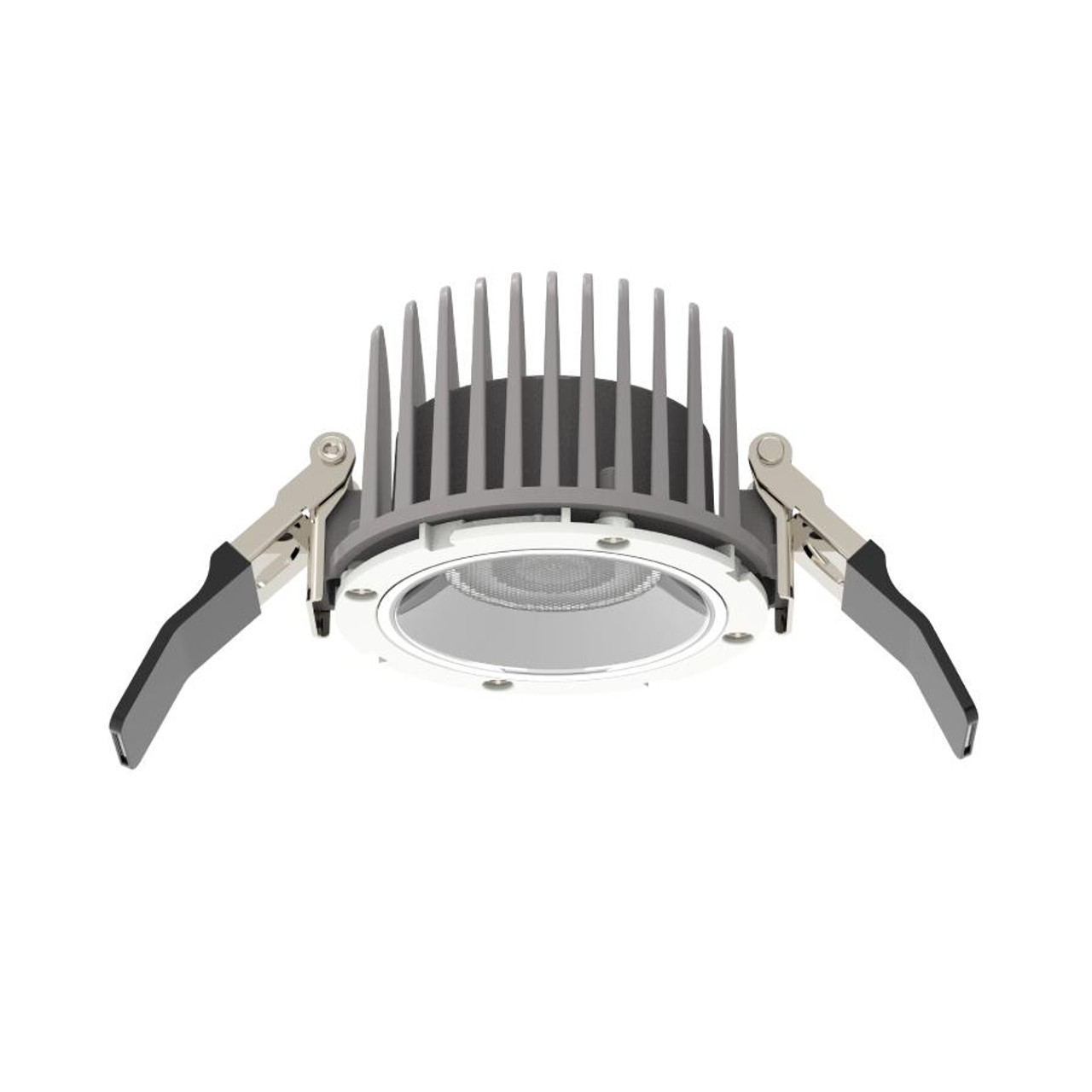

HA4 Haled GEN2 4" Round 12W 36V CRI90 5CCT + 120V Triac Driver Included delivers high-quality, energy-efficient illumination in a compact recessed downlight design. Featuring field-adjustable color temperature, a high CRI of 90, and robust construction, this RAB Lighting HALED modular downlight is ideal for both residential and commercial spaces requiring superior light quality and flexibility.
Wattage: 12W
Lumens: 950–1,060 lm
Color Temperature: Field Adjustable 2700K / 3000K / 3500K / 4000K / 5000K
CRI: 90
Voltage: 120V Triac Driver (included)
IC Rated: Yes
Energy Star: Certified
Free shipping on orders over $250
Product Benefits
- Field-adjustable CCT for perfect ambiance and application-specific lighting.
- High CRI 90 ensures vivid, true-to-life color rendering.
- IC and Airtight rated for safe installation in insulated ceilings.
- Long 50,000-hour lifespan reduces maintenance and replacement costs.
Key Features
- Wattage: 12W constant current driver
- Lumen Output: 950–1,060 lumens
- Efficacy: 79–88 lm/W
- Voltage: 120V, 60Hz
- Mounting: Recessed ceiling installation
- Trim Compatibility: 4” HALED trims (round/square, smooth/baffle)
- Construction: Durable metal housing
- Warranty: 5 years
Technical Specifications
| Performance Specs | |
|---|---|
| Lumen Output | 950–1,060 lm |
| Color Temperature | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 90 |
| Efficacy | 79–88 lm/W |
| Lifespan | 50,000 hours (L70) |
| Electrical Specs | |
|---|---|
| Wattage | 12W |
| Voltage | 120V (Triac Driver) |
| Power Factor | 0.9 |
| THD | ≤20% |
| Dimming | Triac, see dimmer compatibility list |
| Physical Specs | |
|---|---|
| Shape | Round |
| Trim Style | Smooth (others available) |
| Material | Metal |
| Finish | Black/White |
| Weight | 0.4 lbs |
Applications
- Residential recessed lighting
- Hospitality and retail spaces
- Offices and conference rooms
- Educational facilities
Installation Tips
- Turn off power at the breaker before installation.
- Use provided template to cut ceiling opening.
- Secure trim properly to the module before mounting.
- Adjust CCT switch before finalizing installation.
- Ensure wiring connections are secure and enclosed.
Frequently Asked Questions
Q: Can I adjust the color temperature after installation?
Yes, the fixture has a built-in switch to select from 2700K to 5000K even after installation.
Q: Is the driver included?
Yes, a 120V Triac driver is included with the fixture.
Q: Is this fixture dimmable?
Yes, it is compatible with Triac dimmers. See compatibility list for best performance.
Q: Can this be installed in insulated ceilings?
Yes, it is IC-rated and Airtight per ASTM-E283-04.
Q: What is the warranty?
This product comes with a 5-year limited warranty covering light output, color stability, driver performance, and fixture finish.
Q: Is it suitable for wet locations?
Yes, it is UL listed for wet locations.
