Product Description

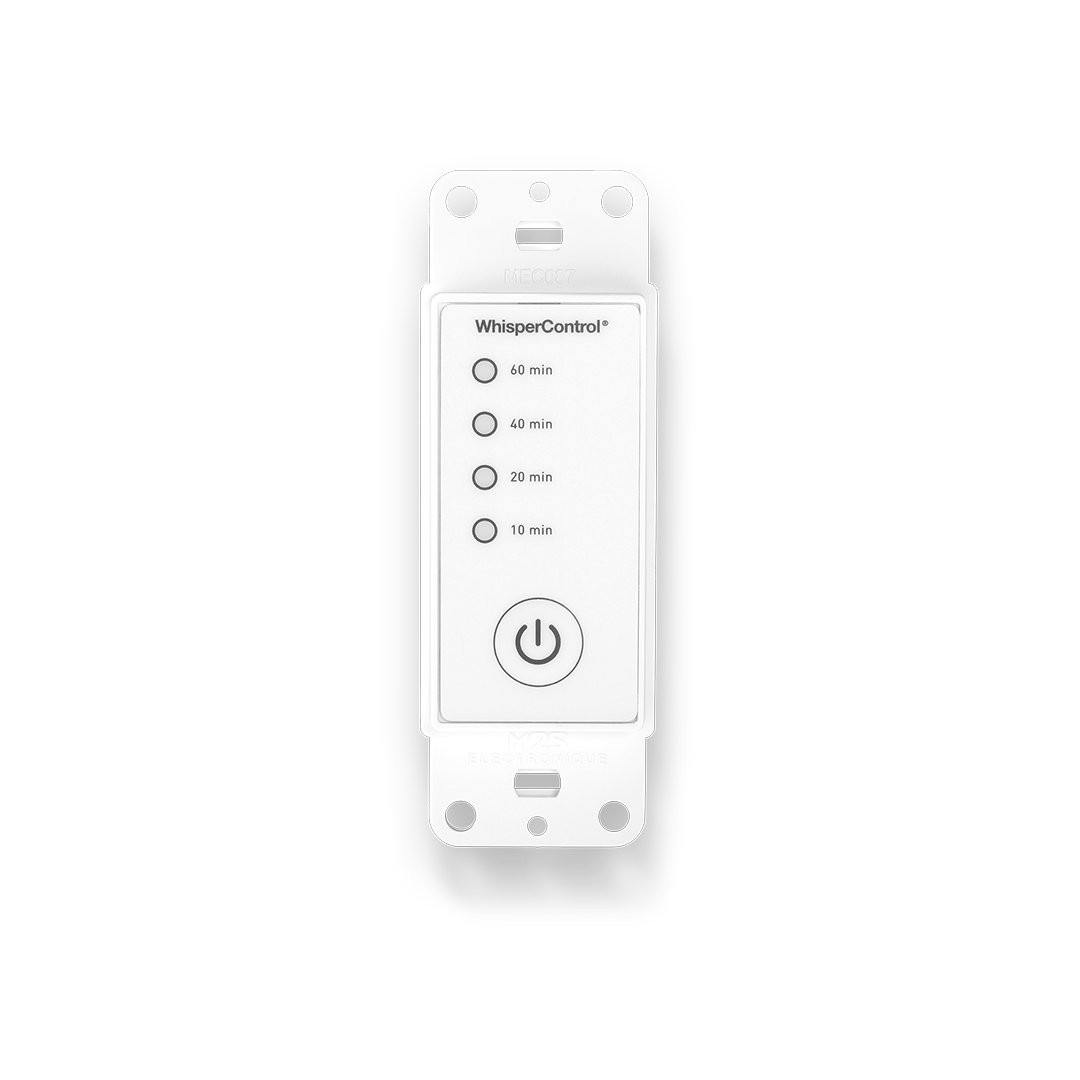

Panasonic WhisperControl® FV-SWLV1060 is a low-voltage timer switch for exclusive use with BalancedHome® and Intelli-Balance® Elite and Elite Plus+ ERVs. With 10/20/40/60-minute timer settings, push-button navigation, and blue LED indicators, the unit boosts the ERV to maximum CFM for the selected timer interval. Indoor install only, commercial grade, with pre-stripped wire leads (20 to 14 AWG stranded). Specs verified from the Panasonic specification sheet.
Key Specs
- Model: FV-SWLV1060
- Type: WhisperControl Low Voltage Timer
- Voltage: DC 12V ± 0.5V
- Timer Settings: 10 / 20 / 40 / 60 minute intervals
- Current: Less than 40mA per switch
- Wiring: Pre-stripped wire leads (20 to 14 AWG stranded)
- Warranty: 1 year
Why Buy Here?
- Free shipping on orders over $250
- Fast handling & commercial invoicing
- Expert support for spec substitutions
Product Benefits
- 10/20/40/60-minute timer settings for ERV boost cycles.
- Push-button navigation — press once for 10 min, twice for 20 min, etc.
- Blue LED indicates timer setting.
- Boosts ERV to maximum CFM for the selected timer interval.
- Up to 2 timers in parallel.
- Compatible with BalancedHome and Intelli-Balance Elite / Elite Plus+ ERVs.
Key Features
- WhisperControl® Low Voltage Timer for Panasonic ERVs.
- 10/20/40/60 minute timer settings.
- Push-button navigation with blue LED indicator.
- Boosts ERV to maximum CFM for the timer duration.
- Pre-stripped wire leads (20 to 14 AWG stranded).
- Commercial grade for indoor installation only.
- Up to 2 timers in parallel.
- Compatible with: FV-15VE1T/S, FV-12VE1T/S, FV-16VEC1T/S, FV-13VEC1T/S, FV-15ESC1, FV-12ESC1, FV-14ES1, FV-11ES1.
Specifications
Technical Specs
| Voltage | DC 12V ± 0.5V |
| Current | Less than 40mA per switch |
| Wiring | Pre-stripped wire leads (20 to 14 AWG stranded) |
| Flammability | UL94 V0 |
| Environmental | Indoor installation only |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
Settings
| Interval 1 | 10 minutes |
| Interval 2 | 20 minutes |
| Interval 3 | 40 minutes |
| Interval 4 | 60 minutes |
Compliance & Warranty
| Standards | FCC Part 15 Class B certified |
| Warranty | 1 year |
Installation Guide Highlights
- • Using the 2 machine screws (supplied), screw the timer mounting plate to the electrical box
- • À l’aide des 2 vis mécaniques (fournies), vissez la plaque de montage de la minuterie au boîtier électrique
Application Examples
- ERV boost cycles for high-demand ventilation events (cooking, painting, gatherings).
- Whole-house balanced ventilation with on-demand boost.
- Light commercial ERV installations needing scheduled boost.
Installation Tips
- TURN POWER OFF before wiring.
- Using a 4-wire cable 18ga max (not supplied), insert each stripped wire into the proper terminal.
- Tighten screws with a small flat screwdriver — do not overtighten.
- Up to 2 timers can be connected in parallel.
- Mount the timer to the electrical box using the supplied machine screws.
- Mount the wall plate (Decora®, sold separately) over the timer.
- DO NOT OVERTIGHTEN the wall plate screws.
- Press the power button 1–4 times for 10/20/40/60 minute intervals; a 5th press deactivates the timer.
- Installation must be performed by a qualified person in accordance with all applicable codes.
Frequently Asked Questions
What is the FV-SWLV1060?
The FV-SWLV1060 is a WhisperControl® low voltage timer switch for BalancedHome and Intelli-Balance Elite / Elite Plus+ ERVs.
Which ERVs is it compatible with?
FV-15VE1T/S, FV-12VE1T/S, FV-16VEC1T/S, FV-13VEC1T/S, FV-15ESC1, FV-12ESC1, FV-14ES1, FV-11ES1.
What timer settings are available?
10 / 20 / 40 / 60 minute intervals via push-button navigation.
Does it include a wall plate?
No — Decora® wall plate sold separately.
What is the warranty?
1 year.
Can multiple timers be installed?
Yes — up to 2 timers can be connected in parallel.
