Product Description

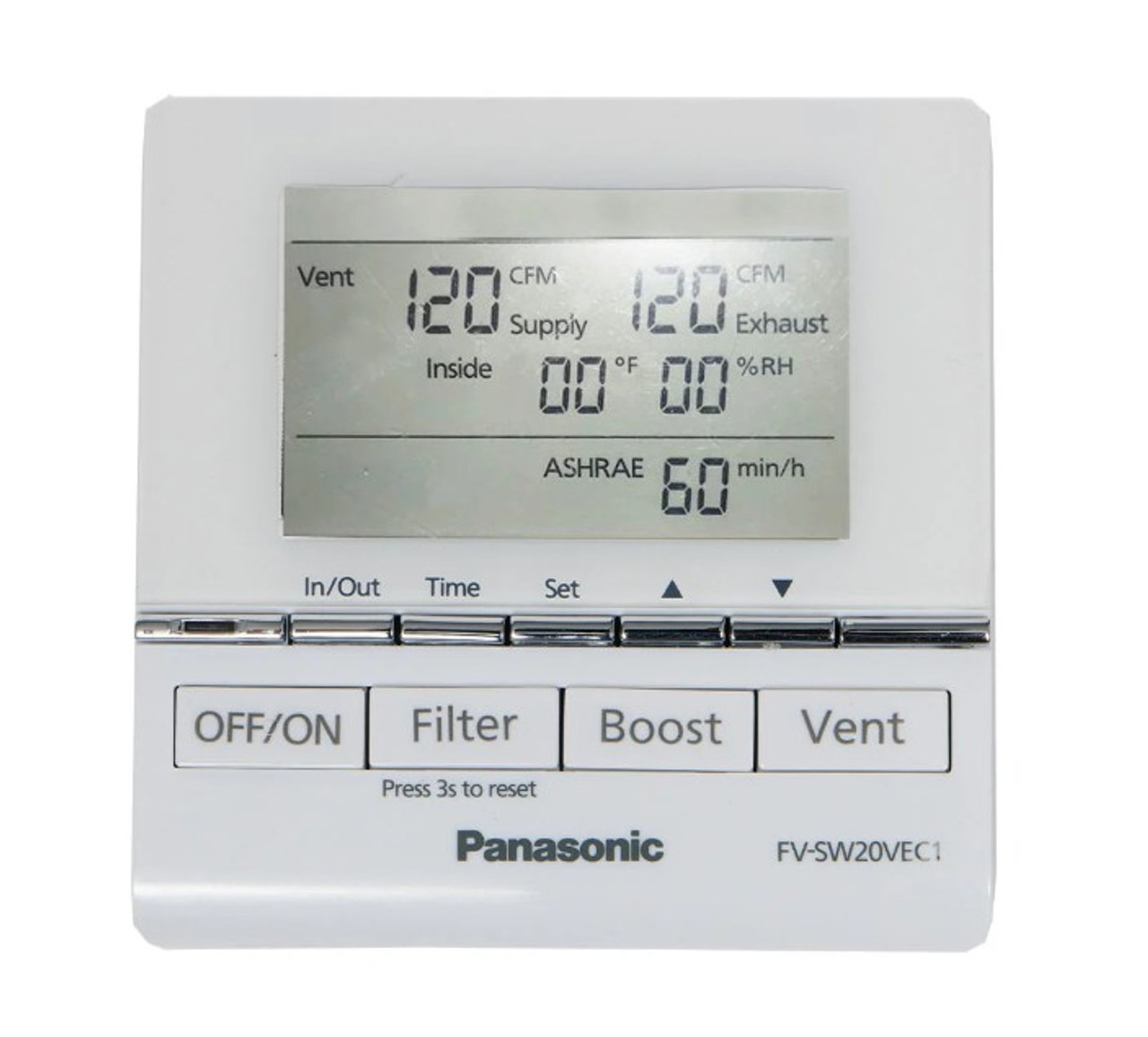

Panasonic FV-SW20VEC1 Intelli-Balance® 200 LCD Wall Control gives you precise command over your Intelli-Balance® 200 ERV system with real-time air volume, temperature, and humidity monitoring. This user-friendly digital interface enhances ventilation management while supporting Boost mode, ASHRAE compliance settings, and filter maintenance alerts.
- Display: LCD screen with real-time data
- Voltage: DC 5V
- Power Consumption: 0.44W
- Dimensions: 3-3/8" x 3-3/8" x 11/16"
- Boost Timer: Adjustable 10–60 minutes
- ASHRAE Timer: Adjustable 10–60 min/h
- Compatibility: Intelli-Balance® 200 ERV (FV-20VEC1)
Free shipping on orders over $250
Product Benefits
- Gives full access to ERV airflow, boost mode, ASHRAE settings, and filter alerts
- Streamlines compliance with energy and ventilation codes via programmable timers
- Large backlit LCD offers real-time temperature and humidity readings
- Easy push-button interface with boost and ventilation presets
Key Features
- Real-Time Monitoring: Displays inside/outside temperature and humidity
- Custom Boost Mode: Temporarily raises airflow to 200 CFM for up to 60 minutes
- ASHRAE Timer Control: Adjustable 10–60 minute/hour intermittent settings
- Filter Alerts: Visual indicator and reset function after filter cleaning
- Fault Code Display: Diagnoses connection or system issues
- Cosmos Integration: Ready for Cosmos™ Healthy Home System (with optional module)
Specifications
General Specs
| Model | FV-SW20VEC1 |
| Power Supply | DC 5V |
| Power Consumption | 0.44W |
| Net Weight | 0.187 lb (0.085 kg) |
Functional Capabilities
| Boost Timer | 10, 20, 30, 40, 50, 60 minutes |
| ASHRAE Timer | 10, 20, 30, 40, 50, 60 min/h |
| Air Volume Settings | 60–200 CFM, independently for supply and exhaust |
| Display Info | CFM, temp, humidity, filter, defrost, Cosmos, error codes |
Installation Specs
| Wall Cutout Size | 3/16" dia. holes (mounting) with recessed cutout |
| Cable Requirements | 14–26 AWG, max length 33.3 ft (10 m) |
Application Examples
- Residential homes using the FV-20VEC1 Intelli-Balance® 200 ERV
- Code-compliant ventilation control in multifamily units
- Energy-efficient smart homes integrated with Cosmos™
- Mechanical rooms and hallway installations for centralized monitoring
Installation Tips
- Mount at standard 5 ft height for optimal visibility
- Allow 1-3/16" clearance around control for wiring access
- Use recommended 14–26 AWG cable with proper polarity labels
- Ensure cables are routed through snap joints and not pinched during installation
Frequently Asked Questions
What is the FV-SW20VEC1 used for?
It’s a wired LCD wall control for managing the Intelli-Balance® 200 ERV, offering full system visibility and configuration.
What functions can I control?
You can adjust supply and exhaust airflow, set ASHRAE and Boost timers, monitor temps/humidity, and reset filter alerts.
Does it display indoor and outdoor conditions?
Yes, the LCD shows real-time indoor and outdoor temperature and humidity.
Can I change the airflow volumes separately?
Yes, supply and exhaust airflows can be set independently from 60 to 200 CFM.
What happens during Boost mode?
Boost increases both supply and exhaust airflow to 200 CFM for 10 to 60 minutes as needed.
Will this work with other ERV models?
It’s designed specifically for Panasonic FV-20VEC1 Intelli-Balance® 200 ERV.
Is it compatible with Cosmos™?
Yes, with an optional Cosmos communication module it can integrate into Cosmos’ smart ventilation platform.
What are the installation requirements?
Use 14–26 AWG wire, no longer than 33.3 ft, with proper spacing and wall anchors (included).
