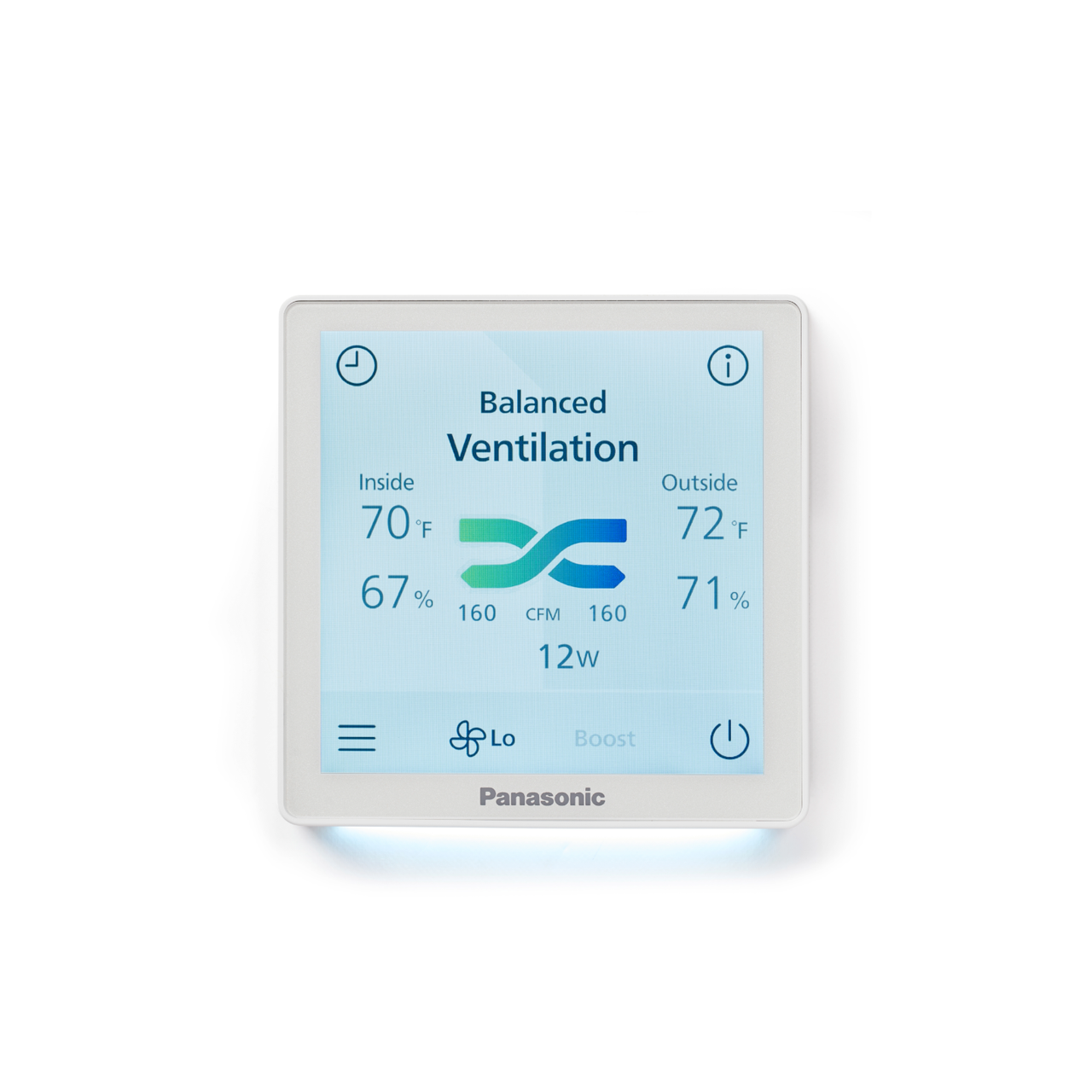

FV-SCVE2 BalancedHome® & Intelli-Balance® ERV Wall Control

Product Description

Panasonic Wall Control FV-SCVE2 is a dedicated wall control / Fault Indicator Display (FID) for Panasonic ERV units. The wall control provides intuitive supply and exhaust speed selectors, boost timer and activation, FID Fault Indicator Display (CEC compliant), filter status, air flow rate, power usage, and current ventilation mode. Compatible with the full BalancedHome Elite & Elite Plus+ ERV line and Intelli-Balance Elite & Elite Plus+ ERVs. Specs verified from the Panasonic specification sheet.

Product Benefits

• Real-time system status at a glance.
• Fault Indicator Display (FID) is CEC compliant.
• Filter status alert helps homeowners stay on top of filter maintenance.
• Boost timer and activation for high-demand ventilation events.
• Compatible with multiple ERV families from Panasonic.

Key Features

• Wall Control with LED display for Panasonic ERVs.
• Supply and Exhaust speed selectors.
• Boost Timer and Activation controls.
• FID Fault Indicator Display (CEC compliant).
• Filter Status display.
• Air Flow Rate readout.
• Power Usage display.
• Current Ventilation Mode indication.

Specifications

Technical Specs

Voltage	DC 12V
Power Consumption	1.8 W
Net Weight	0.26 lb (0.119 kg)

Controls

Control 1	Supply and Exhaust speed selectors
Control 2	Boost Timer and Activation

Displays

Display 1	FID Fault Indicator Display (CEC compliant)
Display 2	Filter Status
Display 3	Air Flow Rate
Display 4	Power Usage
Display 5	Current Ventilation Mode

Compliance

Standards

CEC-compliant Fault Indicator Display

Installation Guide Highlights

• Safety: To reduce the risk of injury, loss of life, electric shock, fire, malfunction, and damage to equipment or property
• Safety: Do not disassemble the unit. It may cause fire or electric shock
• Safety: Your product is designed and manufactured to ensure a minimum of maintenance
• It’s recommended to use the cable (14AWG ~ 24AWG) for connecting product and wall control, and the
• Insert the wires into corresponding terminals of wall control according to lead wire
• Make sure cables are not caught by circuit-board or resin clip. Otherwise, it may cause electrical leakage
• Displays the different operating modes of the ERV. Allows access to user settings and advanced settings

Application Examples

• Residential ERV installations requiring CEC-compliant fault indication.
• Whole-house balanced ventilation systems with Panasonic BalancedHome ERVs.
• Intelli-Balance ERV installations needing FID compliance.

Installation Tips

• Wire the wall control to the ERV's control terminals using low-voltage cable (typical 4-conductor).
• Mount in a convenient indoor location near the ERV or in a central living area.
• Pair with a CEC-compliant ERV for full Fault Indicator Display functionality.
• All electrical work should be performed by a licensed electrician in accordance with local codes.

Frequently Asked Questions

What is the FV-SCVE2?

The FV-SCVE2 is a dedicated wall control / Fault Indicator Display for Panasonic BalancedHome and Intelli-Balance Elite / Elite Plus+ ERVs.

Which ERVs is the FV-SCVE2 compatible with?

Compatible with BalancedHome Elite & Elite Plus+ and Intelli-Balance Elite & Elite Plus+ ERVs.

What does the FID Fault Indicator Display show?

The FID alerts occupants to system issues such as maintenance needs, installation issues, and filter replacement reminders.

What other information does the wall control display?

Air flow rate, power usage, current ventilation mode, filter status, plus supply and exhaust speed selectors and a boost timer.

Is the wall control required for code compliance?

For California installations requiring a CEC-compliant Fault Indicator Device, the FV-SCVE2 paired with a compatible ERV satisfies the requirement.
