Product Description

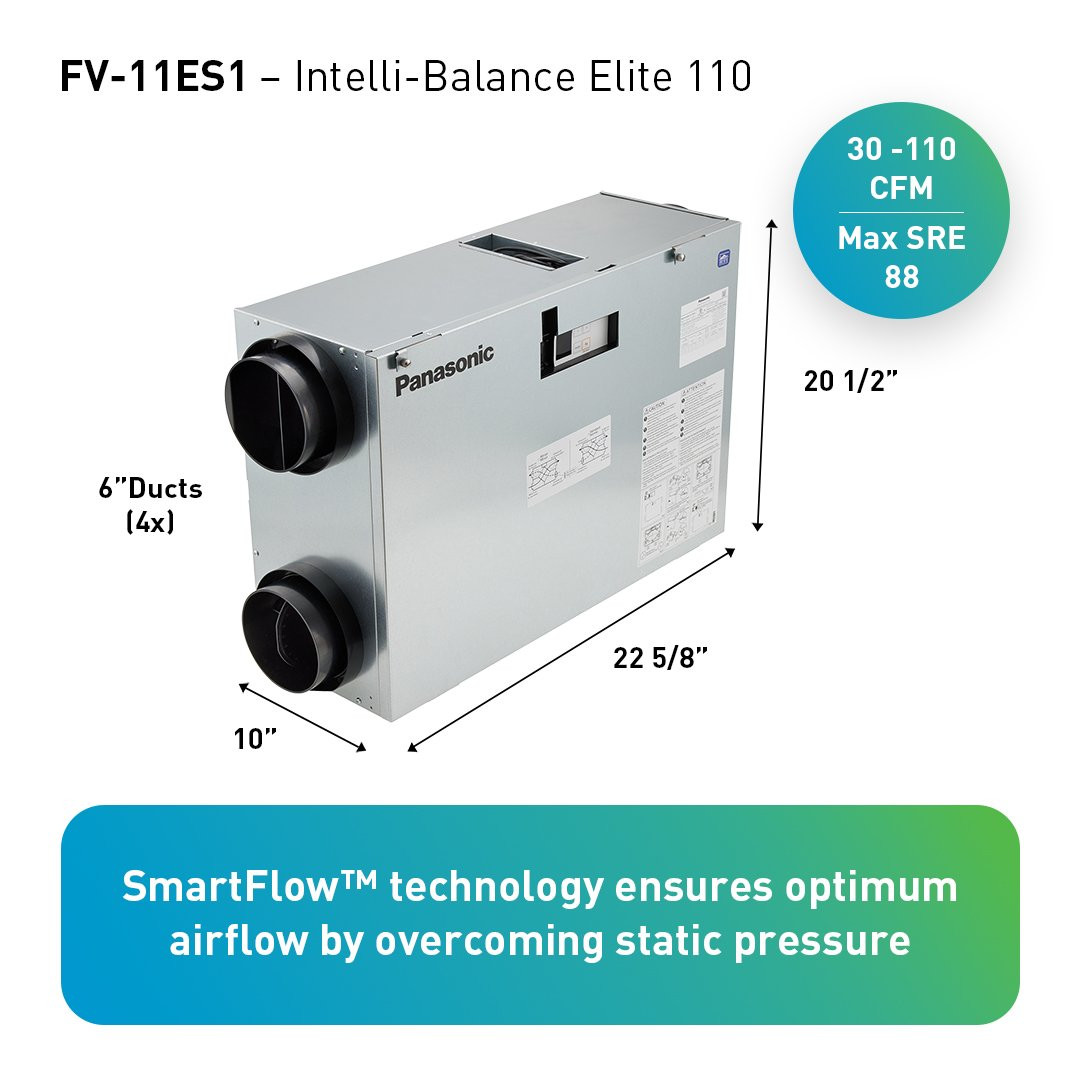

Panasonic Intelli-Balance® Elite FV-11ES1 is a 110 CFM Energy Recovery Ventilator (ERV) with standard duct orientation, providing tempered supply air while exhausting stale indoor air. Independent supply and exhaust settings give balanced ventilation while recovering energy from the exchanged air, with adjustable 30–110 CFM and an occupant-controlled boost up to 110 CFM. The unit features two DC-enclosed ECM brushless motors, MERV 13 filter, ASHRAE 62.2 timing function, and built-in frost prevention. Engineered for use in any temperate North American climate zone. Specs verified from the Panasonic specification sheet.
Key Specs
- Model: FV-11ES1
- Type: Intelli-Balance® Elite FV-11ES1 (standard ducts)
- Max Airflow: 110 CFM (supply and exhaust)
- Adjustable Range: 30–110 CFM
- Boost: 110 CFM (occupant-controlled)
- Motors: Two (2) DC-enclosed ECM brushless, continuous run
- Voltage: 120V / 60 Hz
- Ducts: Four 6" ducts (supply, exhaust, room air, room return)
- Filter: MERV 13 included
Why Buy Here?
- Free shipping on orders over $250
- Fast handling & commercial invoicing
- Expert support for spec substitutions
Product Benefits
- Energy Recovery Ventilation (ERV) tempers supply air by transferring moisture and energy from exhaust air.
- Adjustable 30–110 CFM with occupant-controlled boost up to 110 CFM.
- ASHRAE 62.2 timing function built in for code compliance.
- MERV 13 filter with 90-day visual + audible replacement indicators.
- CEC-certified Fault Indication Device (FID) alerts occupants to maintenance or installation issues.
- Built-in frost prevention mode for cold-climate installations.
Key Features
- Panasonic Intelli-Balance® Elite FV-11ES1 with high-performance core technology.
- Two DC-enclosed ECM brushless motors rated for continuous run.
- Supply and Exhaust CFM adjustable from 30–110 CFM.
- Occupant-controlled boost up to 110 CFM.
- Built-in ASHRAE 62.2 timing function for intermittent and continuous ventilation.
- Galvanized, corrosion-resistant steel body.
- Four 6" ducts (supply, exhaust, room air, room return)
- Visual and audible filter replacement indicators at 90 days of accumulated run time.
- Mold-resistant core materials for long-lasting performance.
Specifications
Energy Performance (per CSA-C439)
| Sensible Recovery Efficiency (heating) | 88% at 36 CFM net airflow at 32°F (0°C); Adjusted SRE 92% |
| Total Recovery Efficiency (cooling) | 82% at 36 CFM net airflow at 95°F (35°C) |
Technical Specs
| Motor | Two (2) DC-enclosed ECM brushless, continuous run, thermal protection |
| Voltage / Frequency | 120V / 60 Hz |
| Max Power | 64 W at 0.2" w.g. static pressure at 110 CFM |
| Duct Diameter | Four 6" ducts (supply, exhaust, room air, room return) |
| Net Supply Air Flow | 110 CFM at 0.4" w.g. (CSA-C439) |
Physical Specs
| Housing Material | Galvanized, corrosion-resistant steel |
| Mounting | Wall, chain, or floor mount brackets included |
| Damper | Detachable for mirror installation options |
| Core Type | Mold-resistant high-performance core |
Compliance & Warranty
| Standards | CSA-C439, CEC-certified Fault Indication Device |
| Code Compliance | ASHRAE 62.2, LEED, Indoor airPLUS, California Title-24, 2021 Washington State Residential Energy Code |
| ECM Motor Warranty | 6 years from original purchase date |
| All Other Parts Warranty | 3 years from original purchase date |
Installation Guide Highlights
- Safety: Your product is designed and manufactured to ensure a minimum of maintenance
- (1)The terminal of standby connection has been connected by jumper wire as factory
- (1)The chains are not provided. Use only chains with a working load limit of 66 lbs. (30 )
- Press +/- button to cycle through settings and press and hold mode button to enter each setting
Application Examples
- Residential whole-house balanced ventilation with energy recovery.
- New construction meeting ASHRAE 62.2, LEED, Indoor airPLUS, California Title-24, and 2021 Washington State Residential Energy Code.
- Standard duct installations for ceiling or wall cavity applications.
- Cold-climate installations with frost prevention and moisture transfer.
Installation Tips
- Mount using the included brackets (chain/wall mount for ceiling, wall/chain/floor for Intelli-Balance series).
- Connect four 6" standard ducts: outside air (OA), exhaust air (EA), return air (RA), supply air (SA).
- Install the included MERV 13 filter; MERV 6/8/13 replacements available depending on series.
- Pair with the optional Wall Control (FV-SCVE2) for FID display and real-time status.
- Use the built-in frost prevention mode in cold climates.
- All electrical work should be performed by a licensed electrician in accordance with local codes.
Frequently Asked Questions
What is the FV-11ES1?
The FV-11ES1 is a 110 CFM ERV with standard duct orientation.
What is the maximum airflow?
110 CFM for both supply and exhaust, with occupant-controlled boost up to 110 CFM. Adjustable from 30–110 CFM.
What filters are included?
A MERV 13 filter is included. Visual and audible indicators alert at 90 days of accumulated run time.
What climate zones is it rated for?
Engineered for use in any temperate North American climate zone, with built-in frost prevention mode.
How many ducts does it use?
Four 6" standard ducts: outside air (OA), exhaust air (EA), return air (RA), and supply air (SA).
What is the Fault Indication Device?
A CEC-certified FID alerts occupants to maintenance or installation issues. The optional FV-SCVE2 Wall Control is sold separately.
What warranty is included?
6 years on ECM motors and 3 years on all other parts.
