Product Description

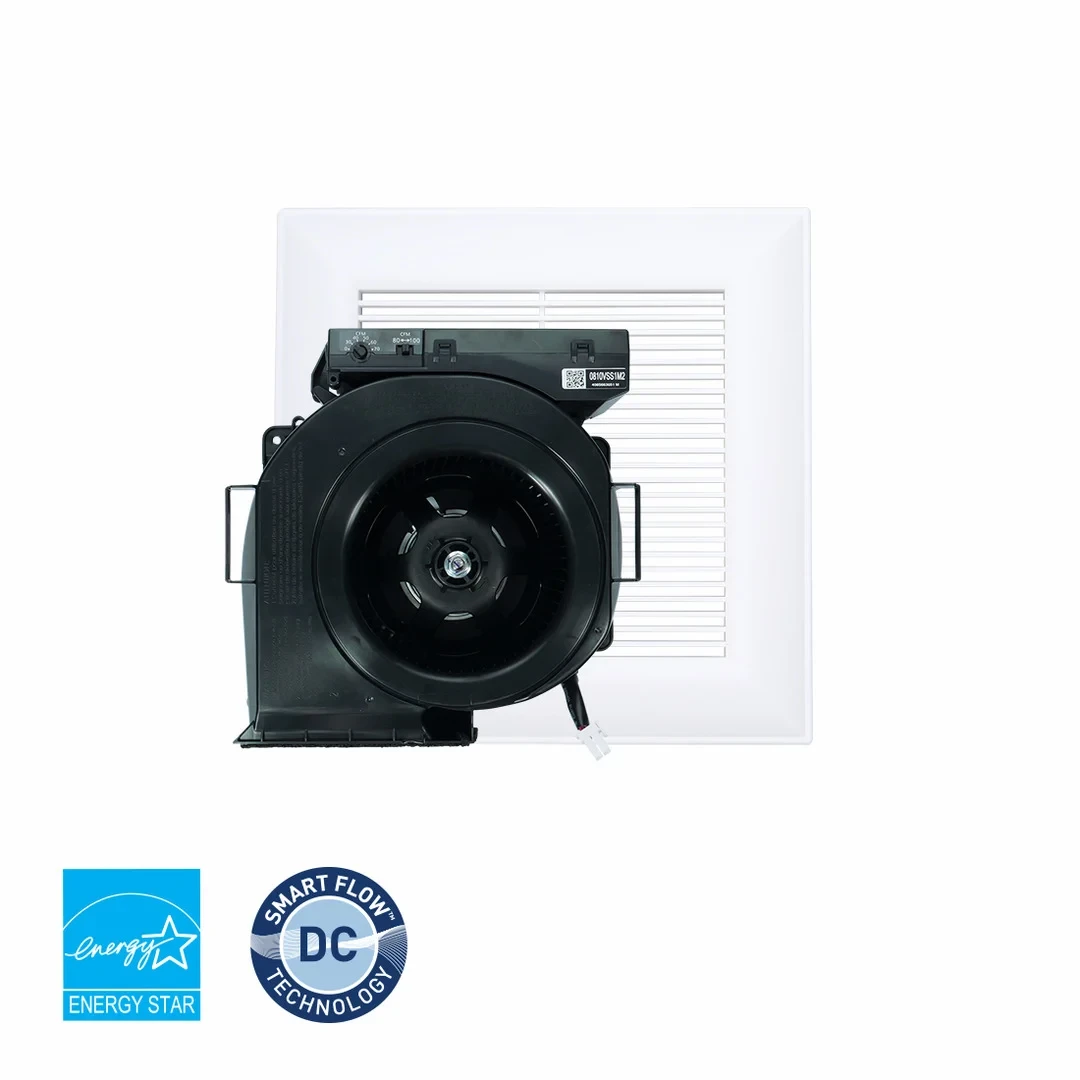

Panasonic WhisperValue® DC FV-0810VSSB1 is the motor/grille assembly for the WhisperValue DC contractor pack with multi-speed control, designed as a low-noise ceiling or wall mount ventilating fan rated for continuous run. The enclosed brushless ECM motor provides selectable 80 or 100 CFM boost plus a built-in continuous multi-speed range of 0 / 30–70 CFM in 10 CFM increments for ASHRAE 62.2 compliance. ENERGY STAR® rated, HVI-certified, and UL/cUL listed for tub/shower enclosure when GFCI protected. Specs verified from the Panasonic specification sheet.
Key Specs
- Model: FV-0810VSSB1
- Type: Ventilation fan motor/grille assembly (Contractor Pack)
- Airflow (Boost): 80 / 100 CFM, manually selectable
- Continuous Speed: 0 / 30–70 CFM in 10 CFM increments
- Motor: Enclosed brushless ECM, continuous run
- Duct: 4" Oval (compatible with 4" round)
- Voltage: 120V / 60 Hz
- Certifications: ENERGY STAR®, HVI, UL, cUL
Why Buy Here?
- Free shipping on orders over $250
- Fast handling & commercial invoicing
- Expert support for spec substitutions
Product Benefits
- Built-in multi-speed control for ASHRAE 62.2 continuous ventilation compliance.
- Selectable 80/100 CFM boost via the built-in speed selector.
- Brushless ECM motor automatically adjusts speed to maintain rated CFM.
- Compact 4" oval duct fits tight ceiling and wall cavities.
- Ultra-low noise: <0.3 sone at most continuous settings; 0.4/0.9 sone at 80/100 CFM boost.
Key Features
- WhisperValue® DC ceiling/wall mount fan motor/grille assembly.
- Multi-Speed & Pick-A-Flow: 0 / 30–70 CFM continuous + 80 / 100 CFM boost.
- Enclosed brushless ECM motor with thermal-cutoff fuse on PCB.
- Permanently lubricated plug-in motor — removable for service.
- 120V / 60 Hz operation.
- 4" oval duct collar (also compatible with 4" round duct).
- Optional 4" oval to 3" round duct adaptor (FV-VS43R, sold separately).
- Compatible with Panasonic Ceiling Radiation Damper (PC-RD06C6, sold separately).
- UL / cUL listed for tub/shower enclosure when GFCI protected (Type I.C.).
Specifications
Performance Specs (4" Oval Duct)
| Air Volume (CFM) — 100 / 80 | 101 / 81 @ 0.1" w.g. |
| Noise (sones) — 100 / 80 | 0.9 / 0.4 @ 0.1" w.g. |
| Power (W) — 100 / 80 | 12.4 / 8.5 @ 0.1" w.g. |
| Efficiency (CFM/W) — 100 / 80 | 8.2 / 10.0 @ 0.1" w.g. |
Technical Specs
| Motor Type | Enclosed brushless ECM, continuous run |
| Boost Airflow | 80 / 100 CFM selectable |
| Continuous Airflow | 0 / 30–70 CFM in 10 CFM increments |
| Voltage / Frequency | 120V / 60 Hz |
| Duct Diameter | 4" oval (4" round compatible) |
| Max Current | 0.39 A |
Compliance & Warranty
| Certifications | ENERGY STAR®, HVI, UL, cUL |
| Code Compliance | ASHRAE 62.2, LEED, EarthCraft, California Title-24, WA Ventilation Code |
| ECM Motor Warranty | 6 years |
| All Parts Warranty | 3 years |
Installation Guide Highlights
- Safety: To reduce the risk of injury, loss of life, electric shock, fire, malfunction, and damage to equipment or property, always
- Safety: The screws for fixing suspension bracket should not be replaced by other screws; otherwise the PCB box may be
- Safety: Routine maintenance must be done every year. Please wear gloves during the cleaning work
- Safety: Your product is designed and manufactured to ensure a minimum of maintenance
- The Motor/Grille Assembly FV-0510VSB1, FV-0510VSCB1 or FV-0810VSSB1 must be installed with Housing Can
- A 4 inch (101.6 mm) circular duct is needed to connect to the relevant part of adaptor. Squeeze a circular exhaust duct to
Application Examples
- ASHRAE 62.2 continuous-ventilation projects using the built-in 0/30–70 CFM multi-speed.
- Bathrooms with wall-switch-activated 80 or 100 CFM boost.
- Multi-family residential projects meeting California Title-24 and EarthCraft.
Installation Tips
- Confirm a 120V, 60 Hz circuit and that the duct run is 4" oval or 4" round.
- Use the FV-VS43R 4" oval to 3" round duct adaptor (sold separately) when downsizing to existing 3" round ductwork.
- Pair with the Panasonic Ceiling Radiation Damper (PC-RD06C6, sold separately) for fire-rated ceiling assemblies.
- All electrical work should be performed by a licensed electrician in accordance with local codes.
Frequently Asked Questions
What is the FV-0810VSSB1?
The FV-0810VSSB1 is the motor/grille assembly of the WhisperValue DC multi-speed contractor pack.
What airflow settings are available?
Continuous: 0 / 30–70 CFM in 10 CFM increments. Boost: 80 / 100 CFM.
What duct size does the fan use?
4" oval duct, compatible with 4" round.
What is the noise level?
At 0.1" w.g.: <0.3 sone at 30–60 CFM continuous; 0.4 / 0.9 sones at 80 / 100 CFM boost.
What warranty is included?
6 years on the ECM motor and 3 years on all parts.
