Product Description

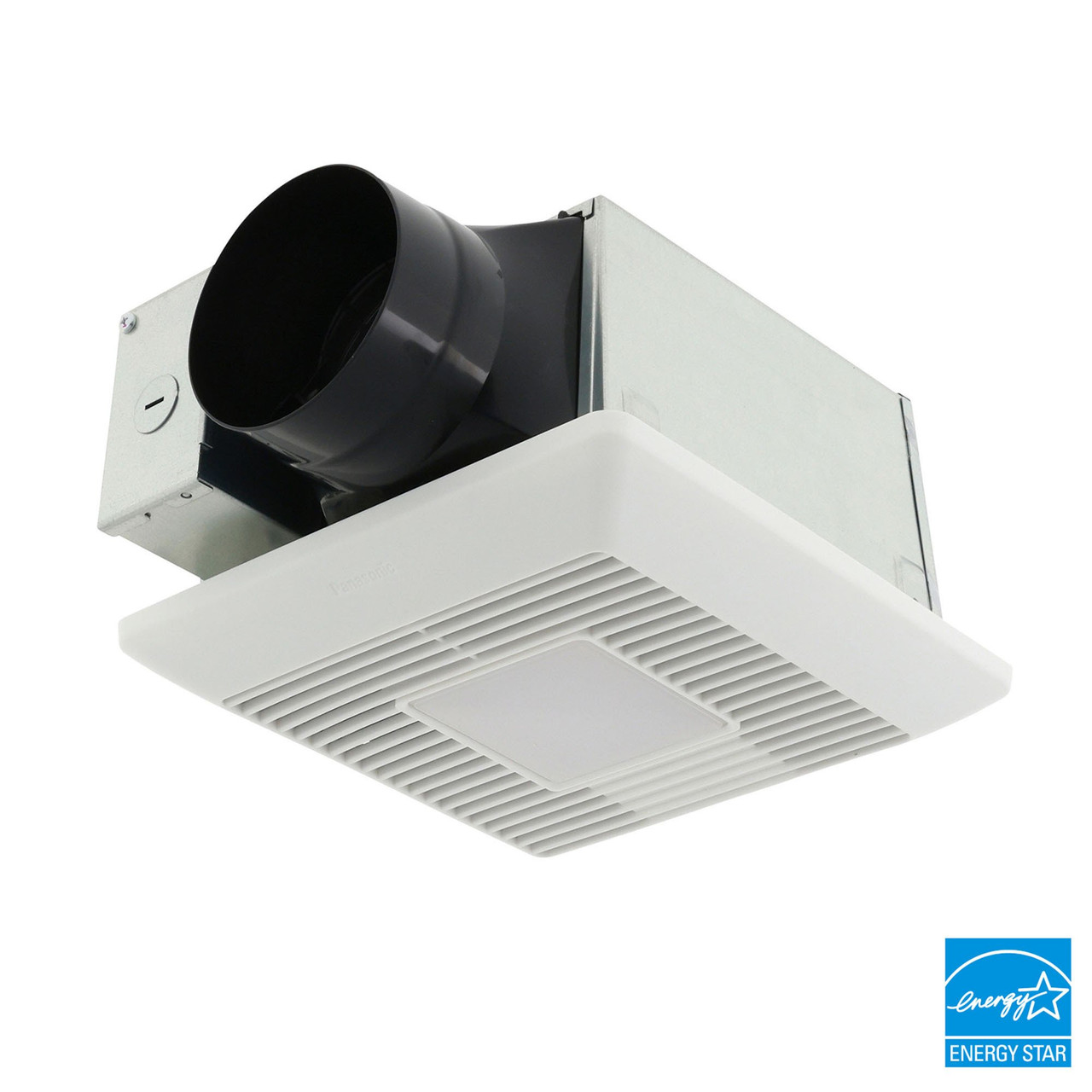

Panasonic EcoVent® FV-0709VBL1 is a low-noise ceiling or wall mount fan/LED light combo with night-light, featuring Pick-A-Flow® airflow selector (70 or 90 CFM) for spot ventilation. The four-pole totally enclosed condenser motor is rated for continuous run and delivers a true flow rating of 56 CFM at 0.375" static pressure when set to the 90 CFM setting. With an integrated 10W LED panel (800 lumens, 3000K, 90 CRI) and compact 4-3/4" housing depth, this fan fits tight ceiling cavities. Specs verified from the Panasonic specification sheet.
Key Specs
- Model: FV-0709VBL1
- Type: Fan/LED/Night-Light, ceiling or wall mount
- Airflow: 70 / 90 CFM (Pick-A-Flow®)
- Motor: Four-pole totally enclosed condenser, continuous run
- Duct: 4" round
- Voltage: 120V / 60 Hz
- LED: 10W, 3000K, 90 CRI, 800 lumens
- Night-Light: <1W LED (included)
- Housing Depth: 4-3/4"
Why Buy Here?
- Free shipping on orders over $250
- Fast handling & commercial invoicing
- Expert support for spec substitutions
Product Benefits
- Pick-A-Flow® airflow selector chooses 70 or 90 CFM at install.
- Integrated 10W LED + <1W night-light in a single fixture.
- Compact 4-3/4" housing depth fits tight ceiling cavities.
- ENERGY STAR® rated with efficiency up to 3.8 CFM/Watt.
- True 56 CFM @ 0.375" w.g. (90 CFM setting) satisfies ≥ 50 CFM installed-performance.
Key Features
- EcoVent® ceiling or wall mount fan with LED light and night-light.
- Pick-A-Flow® 70/90 CFM selector.
- Four-pole totally enclosed condenser motor, continuous run.
- Permanently lubricated plug-in motor — removable.
- Pre-attached junction box and duct adapter.
- Built-in backdraft damper.
- Built-in metal flange for air-barrier blocking through drywall.
- Mounts directly to joist using 4 screws.
- Compact 4-3/4" housing depth.
- PP grille with torsion springs.
- 10W LED, 800 lumens, 3000K Warm White, 90 CRI, 50,000 hours.
- <1W LED night-light.
- UL / cUL listed for tub/shower enclosure when GFCI protected.
Specifications
Performance Specs
| CFM — 70 setting @ 0.1" w.g. | 70 |
| Sones — 70 setting @ 0.1" w.g. | 0.8 |
| Power (W) — 70 setting @ 0.1" w.g. | 18.5 |
| CFM — 90 setting @ 0.1" w.g. | 90 |
| Sones — 90 setting @ 0.1" w.g. | 1.5 |
| Power (W) — 90 setting @ 0.1" w.g. | 23.1 |
| Efficiency (CFM/W) — 70 / 90 @ 0.1" w.g. | 3.7 / 3.8 |
Technical Specs
| Motor Type | Four-pole totally enclosed condenser, continuous run |
| Voltage / Frequency | 120V / 60 Hz |
| Duct Diameter | 4" round |
| Max Current | 0.25 A |
Lighting Specs
| Lamp Watts | 10W |
| Lumens | 800+ |
| Lumens Per Watt | >72 |
| Color Temperature | 3000K Warm White |
| CRI | 90 |
| Rated Life | 50,000 hours |
Compliance & Warranty
| Certifications | ENERGY STAR®, HVI, UL, cUL |
| Code Compliance | ASHRAE 62.2, LEED, ENERGY STAR® IAP, EarthCraft, California Title-24, WA Ventilation Code |
| All Parts Warranty | 3 years |
Installation Guide Highlights
- Safety: Remove the tape that protects the damper then remove accessory
- Safety: Routine maintenance must be done every year. Please wear gloves during the cleaning work
- Safety: Your product is designed and manufactured to ensure a minimum of maintenance
- Fixer le boîtier du ventilateur à la solive (installation au plafond) ou au montant (installation murale) avec 3 vis taraudeuses
- Faire attention de ne pas coincer les fils de connexion entre le couvercle et la boîte de jonction
Application Examples
- Bathrooms with tub or shower enclosures when GFCI protected.
- Half-baths and powder rooms at the 70 CFM setting.
- Master bathrooms at the 90 CFM setting.
- Wall-mount installations in renovations or where ceiling access is limited.
- Tight ceiling cavities where the compact 4-3/4" housing depth is required.
Installation Tips
- Confirm a 120V, 60 Hz circuit and use 4" round ductwork.
- Select the desired airflow (70 or 90 CFM) via the Pick-A-Flow® selector before mounting.
- Mount directly to the joist using 4 screws.
- All electrical work should be performed by a licensed electrician in accordance with local codes.
Frequently Asked Questions
What is the FV-0709VBL1?
The FV-0709VBL1 is the EcoVent ceiling or wall mount fan with integrated 10W LED panel and <1W night-light, featuring Pick-A-Flow® 70/90 CFM selection.
What airflow settings are available?
Two settings via the Pick-A-Flow® selector: 70 CFM or 90 CFM.
What duct does it use?
4" round duct.
What are the noise levels?
At 0.1" w.g.: 0.8 sones (70 CFM) / 1.5 sones (90 CFM).
What housing depth is required?
4-3/4".
What warranty is included?
3 years on all parts.
