Product Description
FV-06VE1 WhisperComfort® 60 is a compact Energy Recovery Ventilator by Panasonic, designed for residential spaces requiring balanced, continuous ventilation. Ideal for small to mid-size homes and compliant with ASHRAE 62.2, this ERV provides a tempered fresh air supply while exhausting stale air, all through quiet and efficient DC motors. With selectable airflow from 20–60 CFM and integrated frost prevention, it’s a smart solution for healthy indoor air quality in a range of climates.
Brand: Panasonic
Model: FV-06VE1
Type: Ceiling/Wall Mount Energy Recovery Ventilator (ERV)
Airflow Range: 20 – 60 CFM (selectable)
Voltage: 120V / 60Hz
Free shipping on orders over $250
Product Benefits
- Quiet and continuous air exchange for better indoor air quality
- Compact and flexible for ceiling or wall installations
- Built-in frost prevention mode for cold climates
- Complies with LEED, ASHRAE 62.2, Title-24, and WA Energy Codes
Key Features
- Selectable CFM Rates: Choose from 20, 30, 40, or 50 CFM supply/exhaust
- Occupant Boost Mode: High-speed operation up to 60 CFM
- DC ECM Motors: Two fully enclosed motors rated for continuous use
- Capillary Core Technology: Transfers heat and moisture for tempered air
- Built-In Filters: MERV 13 filters on both intake and exhaust extend core life
- Dual 4" Duct Ports: With 5" options available for alternate configurations
Specifications
Technical Specs
| Voltage | 120V |
| Frequency | 60Hz |
| Airflow Range | 20 – 60 CFM (selectable) |
| Power Consumption | 9W–39W |
| Motor Type | 2x DC ECM Brushless Motors |
Physical Specs

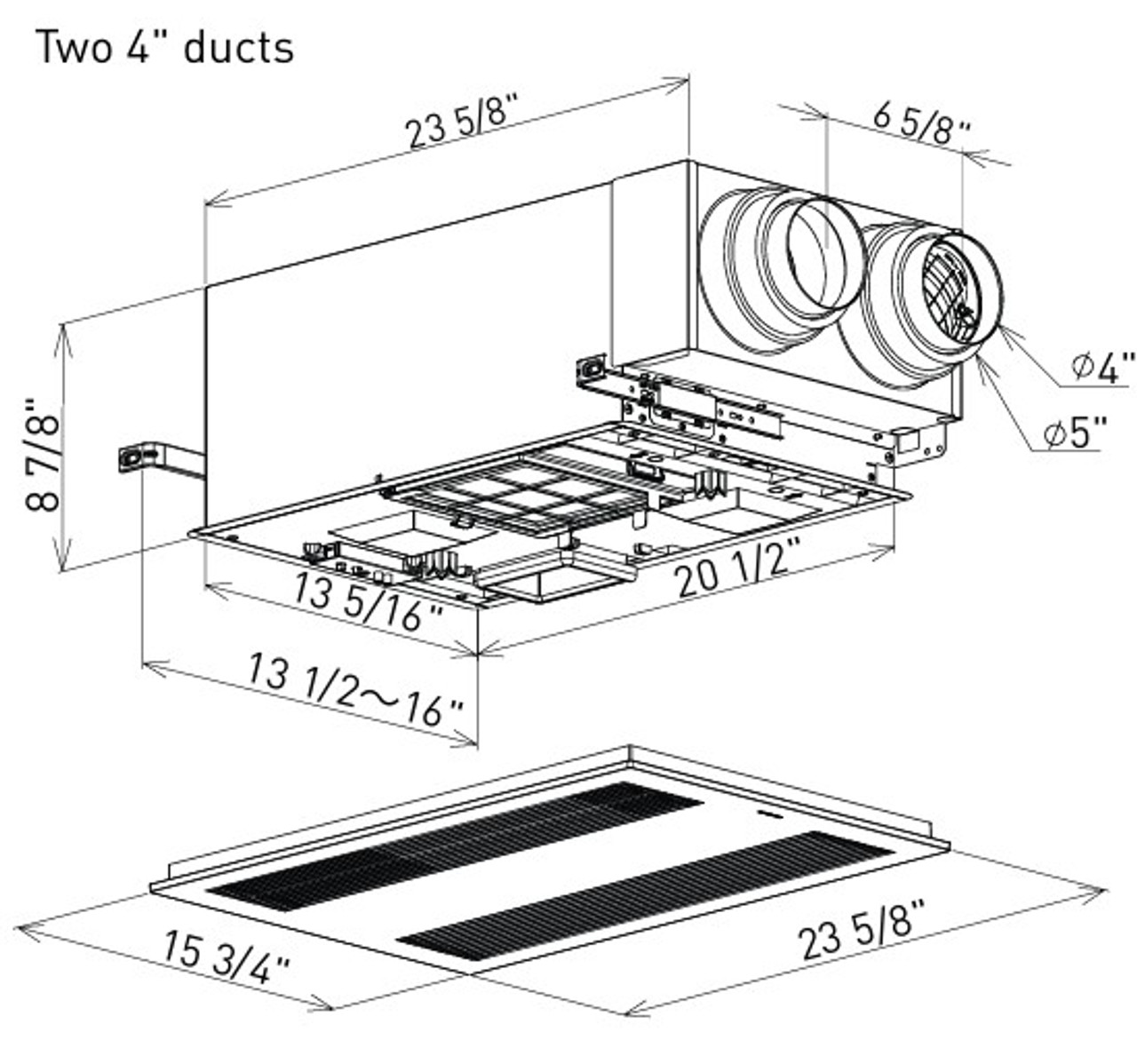

| Dimensions | 23-5/8" L x 15-3/4" W x 8-7/8" H |
| Weight | Approx. 23.8 lbs |
| Duct Size | 4" (5" adapters optional) |
Performance Specs
| Net Airflow (Max) | 60 CFM Supply / 60 CFM Exhaust |
| Sensible Recovery Efficiency (Heating) | 70% @ 20 CFM / 60% @ 60 CFM |
| Total Recovery Efficiency (Cooling) | 60% @ 27 CFM |
| Net Moisture Transfer | Up to 0.7 |
| Sound Level | 0.9 – 2.5 Sones (depending on CFM and pressure) |
Application Examples
- Single-family homes and small multi-unit residential spaces
- Basements, attics, or utility rooms with wall or ceiling access
- Homes built to ASHRAE 62.2 or LEED ventilation standards
- Retrofits for energy-efficient homes needing airflow balance
Installation Tips
- Ensure straight duct runs of at least 2 ft before bends or elbows
- Install only in dry interior conditioned spaces above 50°F (10°C)
- Use included mounting brackets spaced at 13.5"–16" centers
- Seal ducts using UL-listed foil tape or mastic
- Connect to optional FV-WC10VE1 wall cap for combined exhaust/supply
Frequently Asked Questions
What is the maximum airflow capacity?
The unit supports selectable speeds up to 60 CFM for both supply and exhaust, ideal for balanced ventilation.
Can this unit be installed in a bathroom?
No, the FV-06VE1 is not rated for installation in bathrooms or high-humidity environments:contentReference[oaicite:0]{index=0}.
Does it include a filter?
Yes, it comes with MERV 13 filters on both the intake and exhaust sides for enhanced air quality:contentReference[oaicite:1]{index=1}.
How is frost protection handled?
The unit includes automatic frost prevention mode that engages without user interaction when temperatures drop below 14°F:contentReference[oaicite:2]{index=2}.
What type of motors are used?
It uses two fully enclosed DC ECM motors, rated for quiet, continuous operation and thermal overload protection:contentReference[oaicite:3]{index=3}.
Does it meet ASHRAE 62.2?
Yes, the unit meets ASHRAE 62.2 standards as well as LEED, Title-24, and WA Energy Code requirements:contentReference[oaicite:4]{index=4}.
Can I wire this to a wall switch?
Yes, it includes terminals and wiring diagrams for Hi/Lo and standby wall switch connections:contentReference[oaicite:5]{index=5}.
Is a wall cap included?
No, but it is compatible with the FV-WC10VE1 wall cap for single-penetration dual airflow:contentReference[oaicite:6]{index=6}.
