Product Description

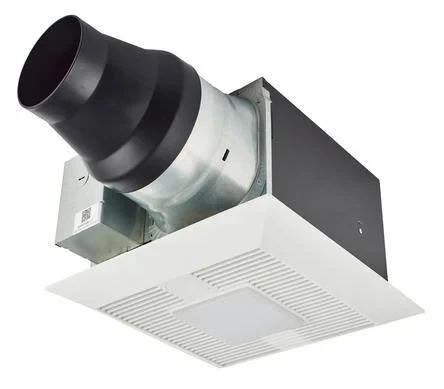

Panasonic WhisperGreen® Select FV-0511VKL3 is a customizable ceiling mount fan/LED light combo with night-light, rated for continuous operation and certified by HVI at 0.1 / 0.25 / 0.375 / 0.5" w.g. The enclosed brushless ECM smart motor delivers selectable 50/80/110 CFM with ultra-low sones, paired with a 10W dimmable LED panel (3000K warm white, 90 CRI, 700 lumens, JA-8 compliant for CA Title 24). ENERGY STAR® Most Efficient 2024 and UL/cUL listed for tub/shower enclosure when GFCI protected. Specs verified from the Panasonic specification sheet.
Key Specs
- Model: FV-0511VKL3
- Type: Fan/LED/Night-Light, ceiling mount, single-speed
- Airflow: 50 / 80 / 110 CFM selectable
- Motor: Enclosed brushless ECM smart motor, continuous operation
- Duct: 4" or 6"
- Voltage: 120V / 60 Hz
- LED: 10W dimmable, 3000K, 90 CRI, 700 lumens
- Night-Light: <1W LED (included)
Why Buy Here?
- Free shipping on orders over $250
- Fast handling & commercial invoicing
- Expert support for spec substitutions
Product Benefits
- Selectable 50/80/110 CFM built-in speed selector with upgrade path to 30–110 CFM via FV-VS15VK module.
- ENERGY STAR MOST EFFICIENT 2024 with brushless ECM smart motor that auto-adjusts to maintain rated CFM.
- Integrated 10W LED + <1W night-light in a single fixture, JA-8 compliant.
- Ultra-quiet operation: <0.3 sone at 50/80 CFM and 0.3 sone at 110 CFM.
- Compatible with Plug 'N Play® modules for motion, condensation sensor, Wi-Fi, and multi-speed control.
Key Features
- WhisperGreen® Select ceiling mount fan with LED light and night-light, single-speed.
- 50 / 80 / 110 CFM built-in speed selector.
- Upgradable to 30–110 CFM with FV-VS15VK1 multi-speed module.
- Enclosed brushless ECM smart motor with thermal cutoff fuse.
- 26 gauge ZAM-coated housing (Zinc-Aluminum-Magnesium).
- Built-in damper reduces backdraft and supports blower door testing.
- Articulating and expandable installation bracket up to 24".
- Suitable for ceilings insulated up to R60.
- Plug 'N Play® modules: FV-VS15VK1, FV-CSVK1, FV-MSVK1, FV-CMVK3, WP100PBA.
- 4" or 6" duct compatible with reducer for 4" run.
- UL / cUL listed for tub/shower when GFCI protected; RoHS compliant.
Specifications
Performance Specs (6" Duct)
| CFM — 110 / 80 / 50 @ 0.1" w.g. | 110 / 80 / 50 |
| Sones @ 0.1" w.g. | <0.3 / <0.3 / <0.3 |
| Efficiency (CFM/W) @ 0.1" w.g. | 15.7 / 18.2 / 14.9 |
| Efficiency (CFM/W) @ 0.25" w.g. | 9.0 / 9.1 / 7.2 |
Technical Specs
| Motor Type | Enclosed brushless ECM smart motor |
| Airflow Settings | 50 / 80 / 110 CFM (built-in); upgradable to 30–110 CFM |
| Voltage / Frequency | 120V / 60 Hz |
| Duct Diameter | 6" (4" compatible with reducer) |
| Max Current | 0.35 A |
Lighting Specs
| LED Panel | 10W dimmable, 3000K, 90 CRI, 700 lumens, 70 LPW, 50,000 hours |
| Night-Light | <1W LED (included) |
| Compliance | ENERGY STAR®, JA-8 compliant for CA Title 24 |
Compliance & Warranty
| Certifications | ENERGY STAR® (Most Efficient 2024), HVI, UL, cUL, NGBS, RoHS |
| Code Compliance | ASHRAE 62.2, LEED, ENERGY STAR® IAP, EarthCraft, California Title-24 |
| ECM Motor Warranty | 6 years |
| LED Panel Warranty | 5 years |
| All Parts Warranty | 3 years |
Installation Guide Highlights
- Safety: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE
- Safety: Spot ventilation: These fans are also built to take care of the homeowner’s spot ventilation needs when the room
- Do not use this unit with any solid-state speed control device. Solid state controls may cause harmonic
- Do not install this ventilating fan where interior room temperature may exceed 104°F (40°C)
- Insert body and slide it into the adapter assembly until you hear a click from the hook
- The Flex-Z Fast bracket position can be adjusted from 16" to 24" between joists or studs
Application Examples
- Bathrooms where continuous ventilation and integrated LED lighting are required.
- Master bathrooms at the 110 CFM setting for tubs and large showers.
- Residential new construction meeting ASHRAE 62.2, LEED, NGBS, EarthCraft, and California Title-24.
- R60 ceiling insulation installations in cold-climate and high-efficiency builds.
Installation Tips
- Confirm a 120V, 60 Hz circuit and use 6" duct for full CFM performance or 4" duct with reducer for retrofit.
- Use the articulating/expandable bracket (up to 24") for joist spans from 16" to 24".
- Add Plug 'N Play® modules as needed: FV-CSVK1, FV-MSVK1, FV-CMVK3, FV-VS15VK1, or WP100PBA.
- All electrical work should be performed by a licensed electrician in accordance with local codes.
Frequently Asked Questions
What is the FV-0511VKL3?
The FV-0511VKL3 is the WhisperGreen Select single-speed fan with integrated 10W dimmable LED panel and <1W night-light.
What airflow settings are available?
Built-in selector: 50 / 80 / 110 CFM. With FV-VS15VK1 upgradeable to 30–110 CFM.
What duct size does the fan use?
6" duct primary; 4" duct supported via a 6"-to-4" reducer.
What are the noise levels?
At 0.1" w.g. (6" duct): <0.3 / <0.3 / <0.3 sones at 110/80/50 CFM.
What does the LED light include?
10W dimmable LED panel: 3000K warm white, 90 CRI, 700 lumens, 70 LPW, 50,000 hours, plus <1W LED night-light.
What warranty is included?
6 years ECM motor, 5 years LED panel, 3 years all parts.
